Get a better sense of your project cost and materials.

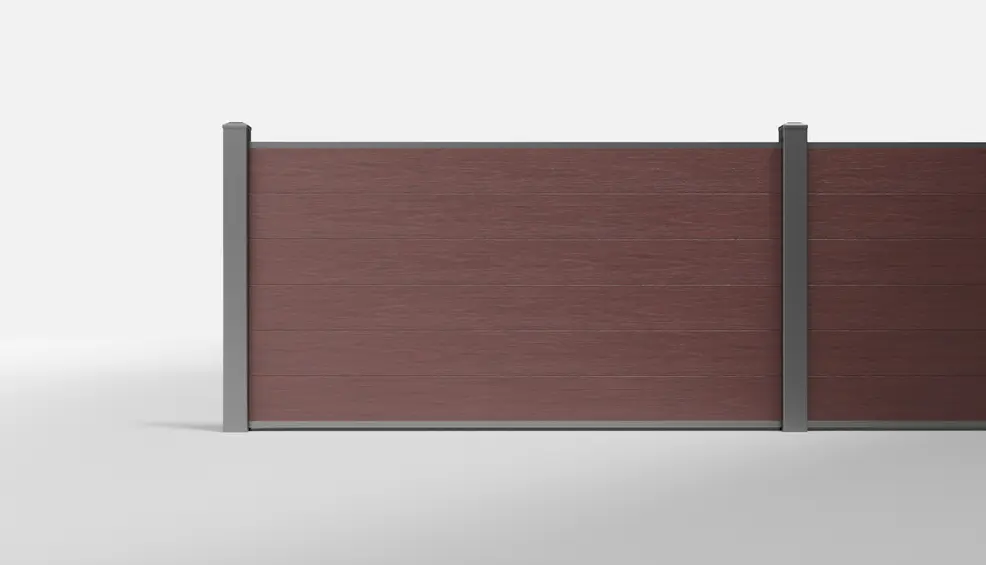

Six joined Redwood boards create the closed infill of this Modern Yard™ horizontal composite privacy fence. The section is a nominal 6 ft wide by 3 ft high. Private Black powder coating finishes the galvanized steel posts and the aluminum rails above and below the boards.

The wood-grain Redwood boards combine natural wood fibers and recycled plastic. They resist moisture, insects and rot. Additives help reduce fading, though color may gradually change.

Compare fence styles in the horizontal composite fence system. Plan connections between composite fence panels. A composite gate needs its own opening and parts list.

  • Six joined Redwood boards create the closed infill of this Modern Yard™ horizontal composite privacy fence. The section is a nominal 6 ft wide by 3 ft high. Private Black powder coating finishes the galvanized steel posts and the aluminum rails above and below the boards.

    The wood-grain Redwood boards combine natural wood fibers and recycled plastic. They resist moisture, insects and rot. Additives help reduce fading, though color may gradually change.

    Compare fence styles in the horizontal composite fence system. Plan connections between composite fence panels. A composite gate needs its own opening and parts list.

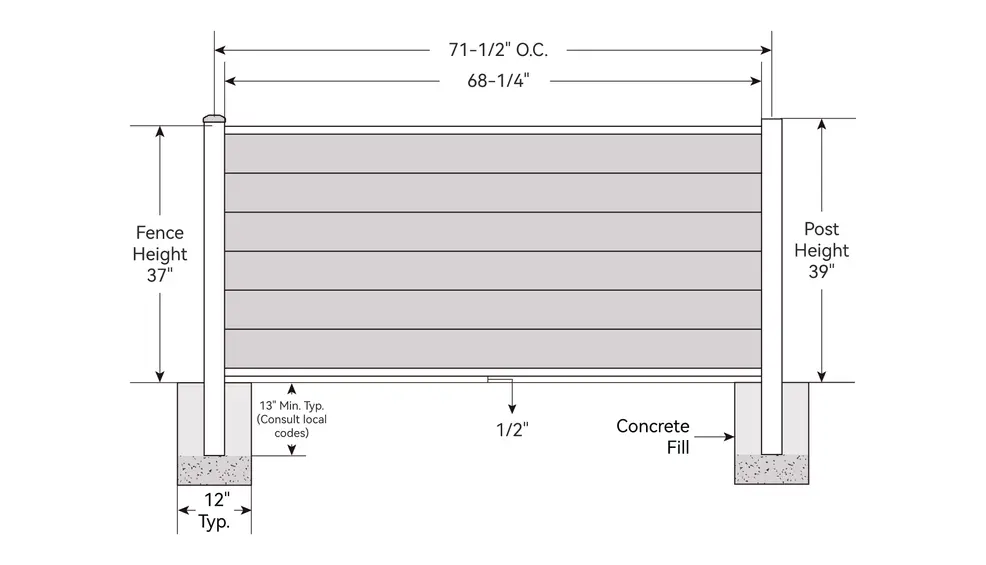

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3 ft.

    Mounting Type: In-Ground.

    Fence height: 37 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 39 inches, excluding the post cap.

    Post depth below ground: 13 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Six joined Redwood boards form a closed, modern horizontal layout.
    • The nominal 6 × 3 ft section has a low profile.
    • Private Black aluminum rails outline the Redwood panel between galvanized steel posts.
    • The Redwood boards need no regular painting, staining or sealing. Wash their faces with mild soap, water and a soft brush.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard standard fence post cap in dark powder-coated finish

Modern Yard™ Accessory – Standard Post Cap

Imagine Your Future Fence

Installation Guides

Installation Manual

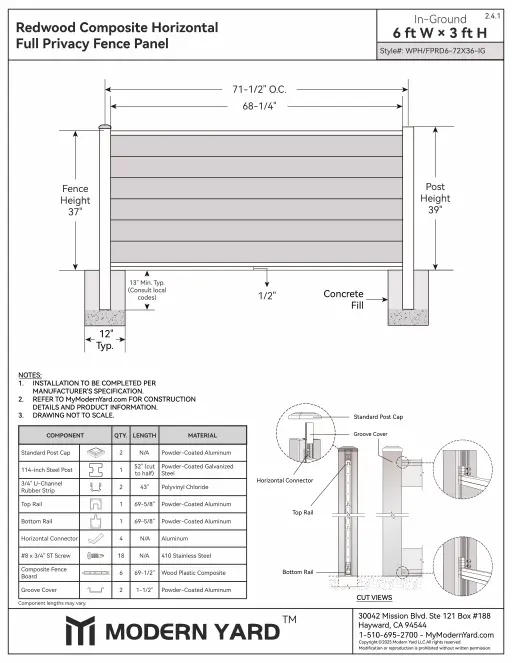

​Technical Drawing


Frequently Asked Questions

Full privacy refers to the six joined boards and their closed layout. The nominal height is 3 ft. You may still see objects above the fence. Check the post and section measurements when planning your run.

No. Redwood is the wood-grain finish on wood-plastic composite boards.

Use the Component Needs list to order Redwood board packs, posts and rails. Board packs supply infill; buy the posts and horizontal rail set separately.
