Eight Redwood boards form the closed face of this composite privacy fence. Horizontal fencing brings the wood-grain pattern across a nominal 6 ft width, with Private Black posts and rails around the infill. The nominal four-foot fence style has a 49-inch drawing height.
Wood fibers and recycled plastic make up the composite boards. Redwood is their color, not solid redwood lumber. The board surfaces resist moisture, rot, insects and fading without regular painting, staining or sealing. Powder-coated aluminum top and bottom rails frame the boards, and galvanized steel posts support the section.
Plan your fence project with the horizontal composite fence system and layouts. Two four-board packs supply one section's eight boards. Add one Horizontal Fence Rail Set per bay, then count the shared post locations and free ends for the whole run. The posts, rails and board packs are separate purchases.
Eight Redwood boards form the closed face of this composite privacy fence. Horizontal fencing brings the wood-grain pattern across a nominal 6 ft width, with Private Black posts and rails around the infill. The nominal four-foot fence style has a 49-inch drawing height.
Wood fibers and recycled plastic make up the composite boards. Redwood is their color, not solid redwood lumber. The board surfaces resist moisture, rot, insects and fading without regular painting, staining or sealing. Powder-coated aluminum top and bottom rails frame the boards, and galvanized steel posts support the section.
Plan your fence project with the horizontal composite fence system and layouts. Two four-board packs supply one section's eight boards. Add one Horizontal Fence Rail Set per bay, then count the shared post locations and free ends for the whole run. The posts, rails and board packs are separate purchases.

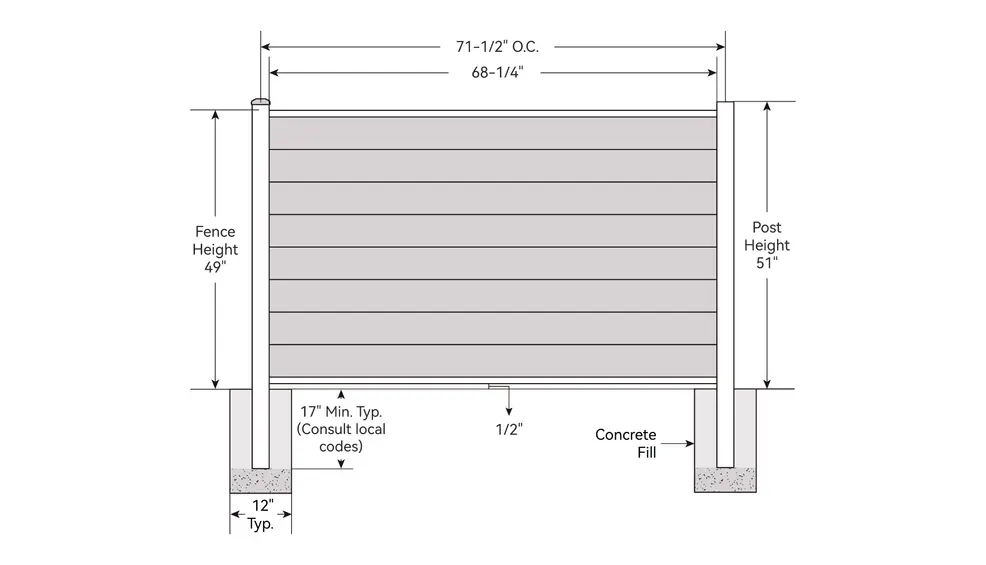

Engineering Dimensions
Nominal size (width × height): 6 × 4 ft.
Mounting Type: In-Ground.
Fence height: 49 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 51 inches, excluding the post cap.
Post depth below ground: 17 inches.
Concrete footing width: 12 inches min.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
98-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
- Eight interlocking boards create the closed Redwood infill across the six-foot nominal width.
- Redwood grain and Private Black metal edges give the section its modern horizontal appearance.
- Composite board faces resist moisture, rot, insect damage and fading without routine coatings.
- One aluminum rail set frames all eight boards between the galvanized steel supports.
- Modern Yard™ 98-inch Steel Post x 1 PC
- Modern Yard™ Redwood Fence Board x 2 packs (8 boards)
- Modern Yard™ Horizontal Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
- Covered Redwood board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently Asked Questions
How high is this nominal four-foot fence?
The drawing lists a 49-inch fence height and 51 inches of post above ground, excluding the cap. The post depth is 17 inches. A separate ½-inch clearance remains below the fence. Use these dimensions for fence installation alongside the nominal 6 × 4 ft size.
How should I count several fence panels?
Allow eight boards and one Horizontal Fence Rail Set per section. Two Redwood packs provide those eight boards. Adjacent bays share compatible posts; count each support location once and add the free ends. One independent bay needs two installed posts.
What board upkeep should I consider when comparing a wood fence?
Redwood composite faces need no regular painting, staining or sealing. Clean the boards with mild soap, water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools. Redwood describes the wood-grain composite finish, rather than a lumber species.
