Redwood 6 × 3.5 ft Spaced-Panel Composite Fence

Redwood Wood-Look Horizontal Composite Spaced-Panel Fence — 72 × 42 Inches — In-Ground

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Redwood Composite Horizontal Spaced Panels Fence Panel — 6 ft W × 3.5 ft H - In-Ground

Style #:

WPH/SPRD4-72X42-IG

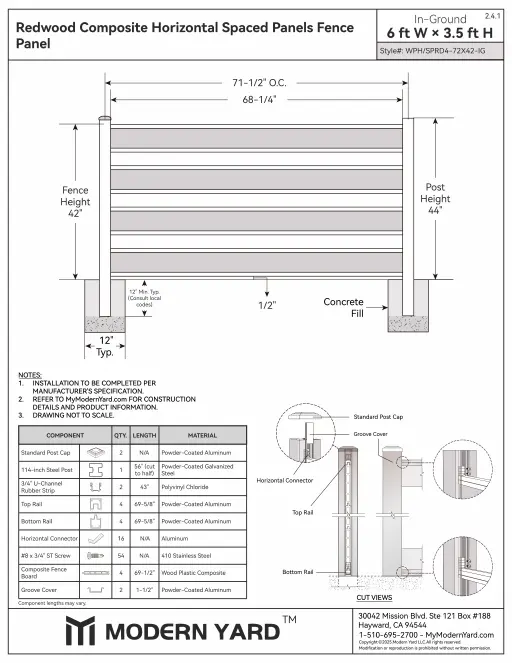

Engineering Dimensions

Nominal size (width × height): 6 × 3.5 ft.

Mounting Type: In-Ground.

Fence height: 42 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 71½ inches.

Clear opening between posts: approximately 68¼ inches.

Post height above ground: 44 inches, excluding the post cap.

Post depth below ground: 12 inches.

Concrete footing width: 12 inches min.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

114-inch Steel Post: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Top Rail: powder-coated aluminum.

Bottom Rail: powder-coated aluminum.

Horizontal Connector: aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

This horizontal composite fence places four Redwood boards in individual aluminum rail pairs. About 4 inches of open space separate the framed rows across a nominal 6 × 3.5 ft section.

Redwood wood grain covers the wood plastic composite infill, made with wood fibers and recycled plastic. Private Black galvanized steel posts provide In-Ground support. Explore horizontal composite fence systems before selecting the board and rail arrangement.

Limited warranty periods (residential / commercial use):

Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

This horizontal composite fence places four Redwood boards in individual aluminum rail pairs. About 4 inches of open space separate the framed rows across a nominal 6 × 3.5 ft section.
Redwood wood grain covers the wood plastic composite infill, made with wood fibers and recycled plastic. Private Black galvanized steel posts provide In-Ground support. Explore horizontal composite fence systems before selecting the board and rail arrangement.
Engineering Dimensions
Nominal size (width × height): 6 × 3.5 ft.
Mounting Type: In-Ground.
Fence height: 42 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 44 inches, excluding the post cap.
Post depth below ground: 12 inches.
Concrete footing width: 12 inches min.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
Four Redwood boards form the separately framed infill.
Every row requires one Horizontal Fence Rail Set.
Approximate 4-inch gaps distinguish the open group pattern.
The composite board faces need no regular paint, stain or sealant.
Modern Yard™ 114-inch Steel Post x 0.5 PC (cut in half)
Modern Yard™ Redwood Fence Board x 1 pack (4 boards)
Modern Yard™ Horizontal Fence Rail Set x 4 sets
Modern Yard™ Accessory – Standard Post Cap x 1 PC (extra per 114-inch stock post cut into two)
Limited warranty periods (residential / commercial use):
Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
