Get a better sense of your project cost and materials.


Charcoal and Teak Composite Horizontal Full Privacy Fence Panel — 1 Charcoal Board + 5 Teak Boards — 6 ft W × 3 ft H - In-Ground

Style #:

WPH/FPCH1TK5-72X36-IG

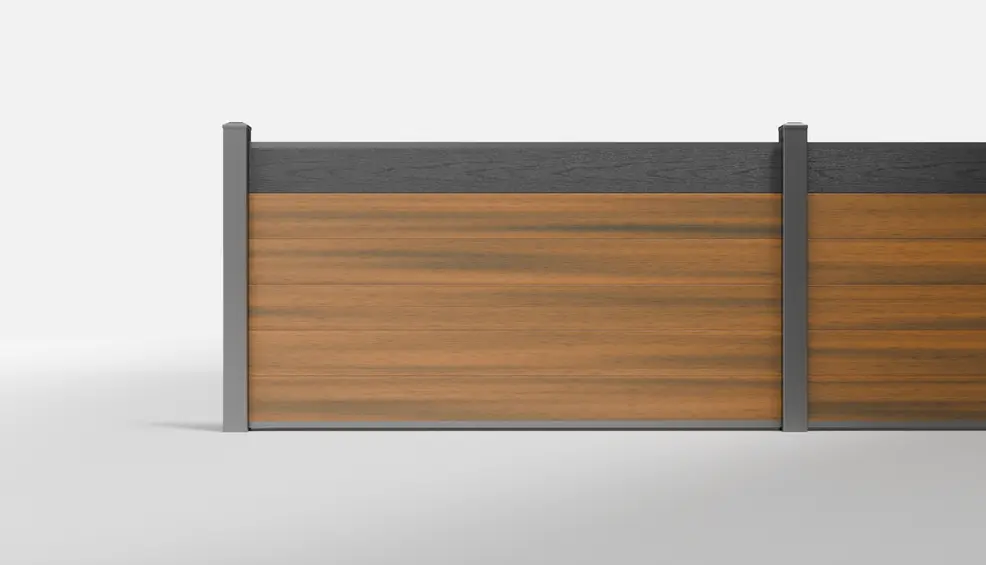

One Charcoal board and five Teak boards form this 3 ft composite privacy fence. The closed horizontal panel is nominally 6 ft wide.

Teak forms most of the wood-grain board face, with Charcoal adding the second color. Both colors use wood-plastic composite made from natural wood fibers and recycled plastic.

This In-Ground version has a 37-inch finished fence height and 39-inch posts above ground. Plan adjoining sections with the horizontal composite fence collection.

  • One Charcoal board and five Teak boards form this 3 ft composite privacy fence. The closed horizontal panel is nominally 6 ft wide.

    Teak forms most of the wood-grain board face, with Charcoal adding the second color. Both colors use wood-plastic composite made from natural wood fibers and recycled plastic.

    This In-Ground version has a 37-inch finished fence height and 39-inch posts above ground. Plan adjoining sections with the horizontal composite fence collection.

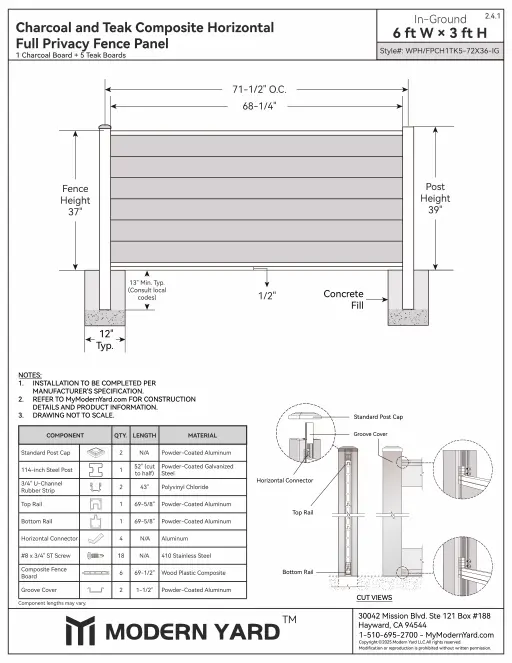

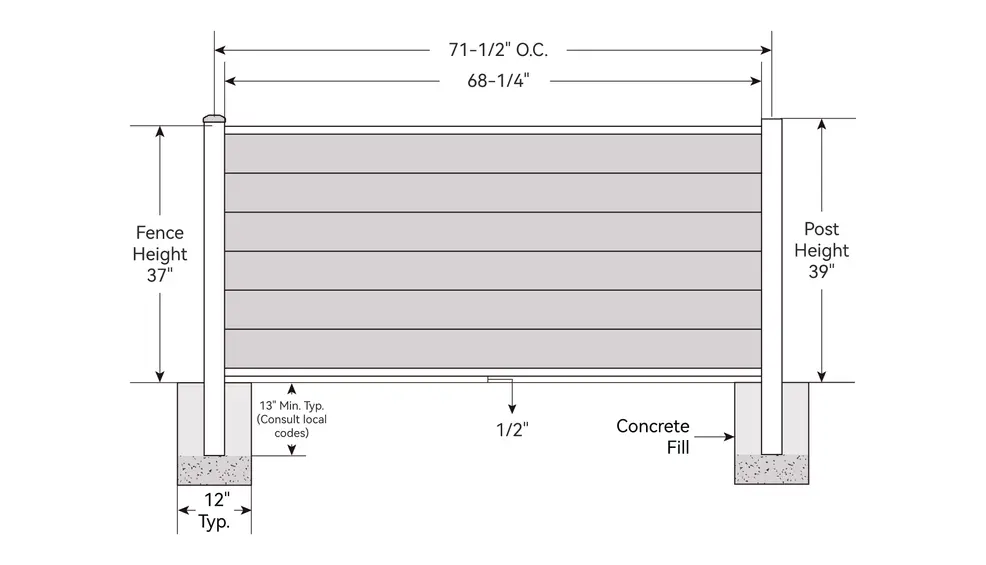

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3 ft.

    Mounting Type: In-Ground.

    Fence height: 37 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 39 inches, excluding the post cap.

    Post depth below ground: 13 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • One Charcoal board and five Teak boards join into a closed horizontal privacy infill.
    • Both composite colors have wood-grain faces for a two-tone wood look.
    • Private Black aluminum rails and galvanized steel posts frame this In-Ground design.
    • The composite board faces do not need regular painting, staining or sealing. Clean with mild soap, water and a soft brush.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal and Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal and Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Modern Yard standard fence post cap in dark powder-coated finish

Modern Yard™ Accessory – Standard Post Cap

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

No. Both are Modern Yard composite fence boards. Charcoal and Teak identify their colors; this configuration uses one Charcoal piece and five Teak pieces.

No. The one Charcoal and five Teak boards total six pieces; the accent is not an extra board.

Joined horizontal boards close the infill of this low fence. Its finished height is 37 inches; objects and views above that level are outside the panel.
