Get a better sense of your project cost and materials.

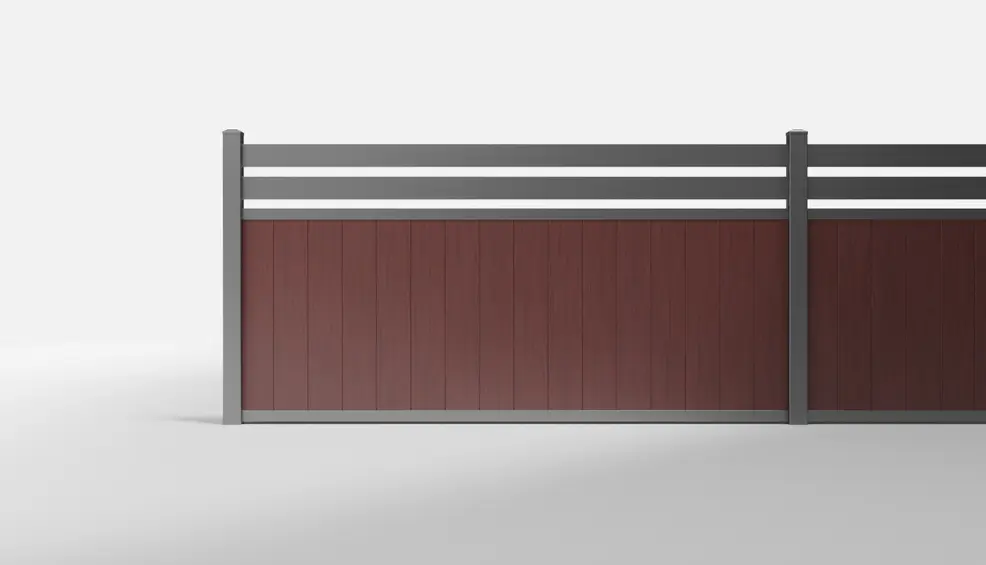

Redwood Composite Vertical Slatted Top Fence Panel — 8 ft W × 4 ft H - In-Ground

Style #:

WPV/STRD16LNPB2-96X48-IG

Redwood vertical composite fencing forms the lower body of this nominal 8 × 4 ft fence panel. Sixteen upright pieces sit beneath two horizontal Private Black LINE slats. The steel top leaves open spaces above the joined wood-grain faces.

The composite fence boards combine wood fibers and recycled plastic. Their Redwood surfaces resist moisture, insects, rot and fading without regular painting, staining or sealing. Steel U rails and aluminum connectors frame the board area, while separate LINE hardware supports the upper slats.

The complete panel stands 48 inches high, with posts extending 50 inches above ground. Browse the vertical composite fence range to compare upright-board layouts.

  • Redwood vertical composite fencing forms the lower body of this nominal 8 × 4 ft fence panel. Sixteen upright pieces sit beneath two horizontal Private Black LINE slats. The steel top leaves open spaces above the joined wood-grain faces.

    The composite fence boards combine wood fibers and recycled plastic. Their Redwood surfaces resist moisture, insects, rot and fading without regular painting, staining or sealing. Steel U rails and aluminum connectors frame the board area, while separate LINE hardware supports the upper slats.

    The complete panel stands 48 inches high, with posts extending 50 inches above ground. Browse the vertical composite fence range to compare upright-board layouts.

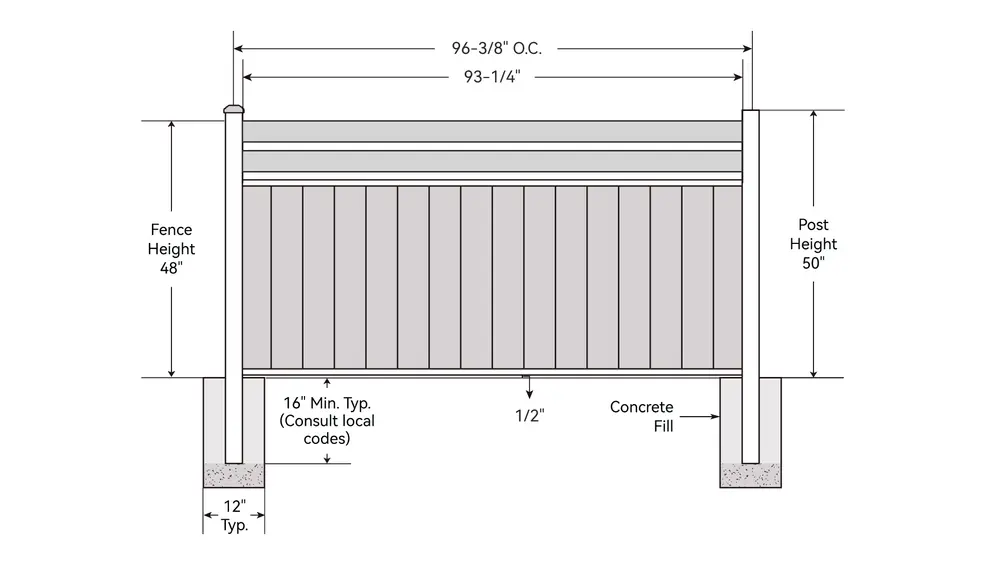

  • Engineering Dimensions

    Nominal size (width × height): 8 × 4 ft.

    Mounting Type: In-Ground.

    Fence height: 48 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 96⅜ inches.

    Clear opening between posts: approximately 93¼ inches.

    Post height above ground: 50 inches, excluding the post cap.

    Post depth below ground: 16 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    U Rail: powder-coated galvanized steel.

    End Cap: PA6.

    Top Rail Connector: powder-coated aluminum.

    Bottom Rail Connector: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Line™ Fence Slat: powder-coated galvanized steel.

    Base Connector: powder-coated aluminum.

    Stackable Connector: powder-coated aluminum.

    L Connector: 201 stainless steel.

    • Redwood wood-grain faces meet a Private Black steel top within one four-foot layout.
    • Sixteen upright pieces form the lower body; two LINE slats leave the upper area open.
    • The composite surfaces resist moisture, insects, rot and fading.
    • Separate vertical rails and LINE connectors support the two infill materials.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard vertical fence rail set with matching rail and mounting components

Modern Yard™ Vertical Fence Rail Set

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard LINE 1 x 4 x 8 ft galvanized steel fence slat with dark powder-coated finish

Modern Yard Line™ Fence Slat - 1 in. x 4 in. x 8 ft (2-Pack)

Modern Yard semi-privacy hardware kit for 1-inch horizontal fence slats

Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

Yes. The 48-inch fence height covers the Redwood body and both LINE slats. The posts finish at 50 inches above ground, excluding their caps.

Eight full-length boards, sold in two four-board packs, provide sixteen short pieces. One separate LINE pack supplies the two steel slats. The vertical rail set and LINE hardware are separate products.

Use mild soap, water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools. The composite area needs no routine paint, stain or sealer.
