6x3.5 Redwood Composite Privacy Fence

Redwood Wood-Look Horizontal Composite Full-Privacy Fence — 72 × 42 Inches — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Redwood Composite Horizontal Full Privacy Fence Panel — 6 ft W × 3.5 ft H - Surface Mount

Style #:

WPH/FPRD7-72X42-SM

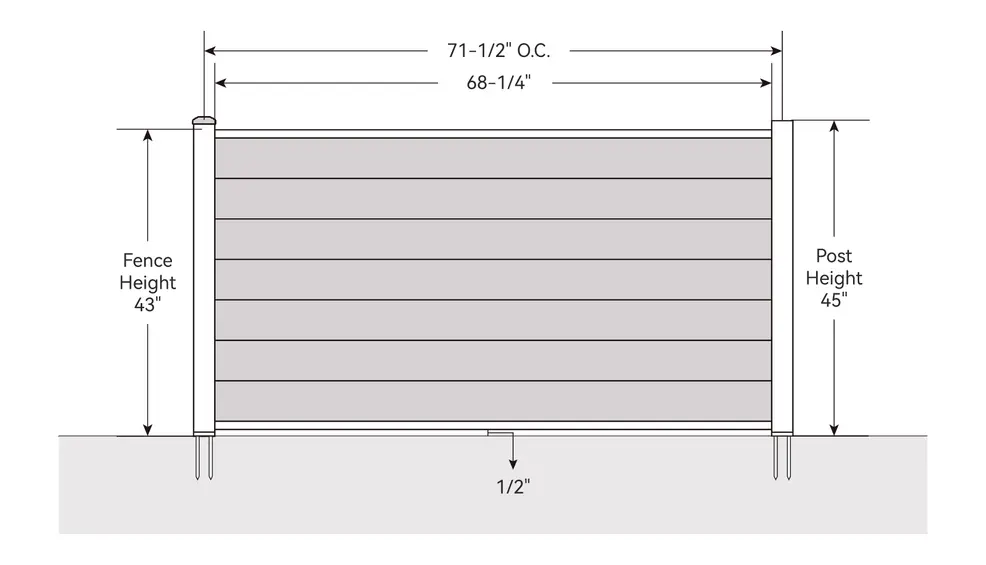

Engineering Dimensions

Nominal size (width × height): 6 × 3.5 ft.

Mounting Type: Surface Mount.

Fence height: 43 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 71½ inches.

Clear opening between posts: approximately 68¼ inches.

Post height above ground: 45 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Top Rail: powder-coated aluminum.

Bottom Rail: powder-coated aluminum.

Horizontal Connector: aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

The Redwood version of this Surface Mount composite fence uses seven boards and one horizontal rail set. It is a horizontal composite fence with closed infill, selected at a nominal 6 ft width and 3.5 ft height.

Its steel posts have welded base plates and a 45-inch finished height. The fence height is 43 inches.

Limited warranty periods (residential / commercial use):

Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

The Redwood version of this Surface Mount composite fence uses seven boards and one horizontal rail set. It is a horizontal composite fence with closed infill, selected at a nominal 6 ft width and 3.5 ft height.
Its steel posts have welded base plates and a 45-inch finished height. The fence height is 43 inches.
Engineering Dimensions
Nominal size (width × height): 6 × 3.5 ft.
Mounting Type: Surface Mount.
Fence height: 43 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 45 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
The seven-board Redwood face stays closed between the aluminum top and bottom rails.
Redwood composite has a wood-grain surface; Private Black is the metal finish.
The composite boards need no regular painting, staining or sealing.
Welded steel post bases provide a Surface Mount connection. Customers must supply the ground anchors used beneath the panel.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Redwood Fence Board x 1.75 packs (7 boards)
Modern Yard™ Horizontal Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
