Ten joined LINE slats form this horizontal metal privacy fence. The nominal 8 × 3.5 ft section has Private Black galvanized steel infill and matching steel supports. Its low height leaves views open above the top edge, while the slats close the face within the panel.
The powder-coated slat finish helps resist corrosion and outdoor wear. Straight steel rows bring clean lines to an outdoor space. Compare the horizontal metal fence layouts when choosing between joined and spaced fence panels.
Five two-slat packs supply all ten pieces. Add the Full-Privacy Hardware Kit for the Base Connectors, L Connectors and slot insert strips. This closed configuration uses no Stackable Connectors for gaps between rows. The slat packs, post kits and full-privacy hardware are separate purchases.

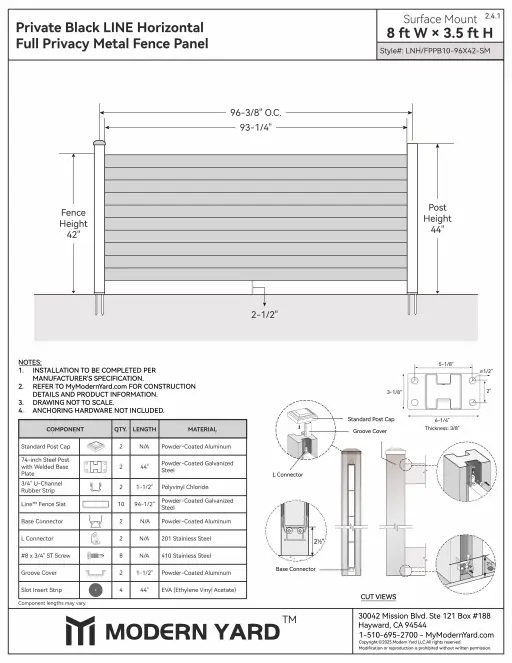

The drawing gives a 42-inch fence height, 44-inch post height and 2½-inch ground gap. Use the 74-inch steel post product with a welded base plate, trimmed at the top for this layout. Retain the base and supply ground anchors separately. Shared post positions and free ends determine the total supports for the run.
Ten joined LINE slats form this horizontal metal privacy fence. The nominal 8 × 3.5 ft section has Private Black galvanized steel infill and matching steel supports. Its low height leaves views open above the top edge, while the slats close the face within the panel.
The powder-coated slat finish helps resist corrosion and outdoor wear. Straight steel rows bring clean lines to an outdoor space. Compare the horizontal metal fence layouts when choosing between joined and spaced fence panels.
Five two-slat packs supply all ten pieces. Add the Full-Privacy Hardware Kit for the Base Connectors, L Connectors and slot insert strips. This closed configuration uses no Stackable Connectors for gaps between rows. The slat packs, post kits and full-privacy hardware are separate purchases.
The drawing gives a 42-inch fence height, 44-inch post height and 2½-inch ground gap. Use the 74-inch steel post product with a welded base plate, trimmed at the top for this layout. Retain the base and supply ground anchors separately. Shared post positions and free ends determine the total supports for the run.
Engineering Dimensions
Nominal size (width × height): 8 × 3.5 ft.
Mounting Type: Surface Mount.
Fence height: 42 inches.
Gap below the fence: 2½ inches.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 44 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Line™ Fence Slat: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
#8 x 3/4" ST Screw: 410 stainless steel.
Groove Cover: powder-coated aluminum.
Slot Insert Strip: EVA (ethylene vinyl acetate).
- Ten joined LINE slats form the continuous infill of the low privacy panel.
- Private Black powder coating gives the galvanized steel slats a protective finish that helps resist corrosion.
- Full-privacy connectors and EVA slot insert strips serve the closed slat arrangement.
- Welded steel post bases provide the Surface Mount connection, with customer-supplied anchors.
- Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
- Modern Yard Line™ Fence Slat x 5 packs (10 slats)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, Slot Insert Strip x 4 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in covered metal fence parts: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Defects under normal use must meet written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, we refund or replace defective parts. The original net purchase price sets the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. We pay if the law requires it or Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently Asked Questions
Why does Component Needs show half a hardware set?
The 0.5 set is this low section's share of the full-privacy hardware. The project quote combines the requirements before selecting complete kits. It also checks the available connectors and slot insert strip material. This is a material-planning share, rather than a loose half-kit product.
Do five LINE packs include the posts and fixing anchors?
Five packs contain ten slats for the infill. Order the post products and full-privacy hardware separately. An isolated bay needs two welded-base posts. Supply ground anchors for those bases as an additional purchase.
Does full privacy mean there is no gap at ground level?
The term describes the joined slat face. A separate 2½-inch gap remains below the fence. The section is nominally three and a half feet high, so views above its top remain open.
