6x3.5 Redwood Spaced-Panel Fence

Redwood Wood-Look Horizontal Composite Spaced-Panel Fence — 72 × 42 Inches — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Redwood Composite Horizontal Spaced Panels Fence Panel — 6 ft W × 3.5 ft H - Surface Mount

Style #:

WPH/SPRD4-72X42-SM

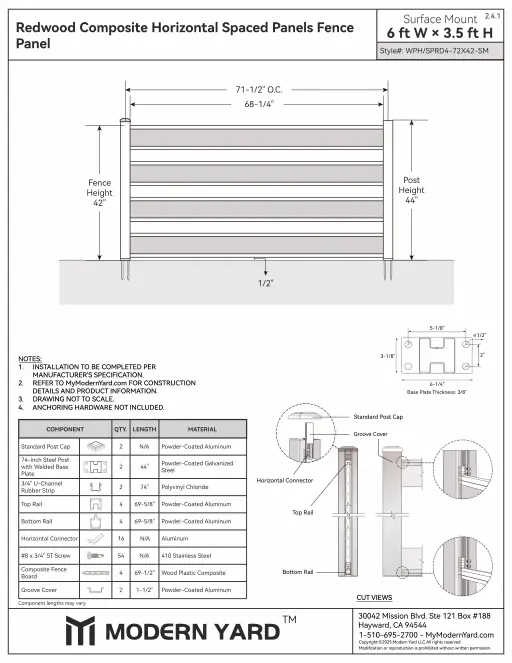

Engineering Dimensions

Nominal size (width × height): 6 × 3.5 ft.

Mounting Type: Surface Mount.

Fence height: 42 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 71½ inches.

Clear opening between posts: approximately 68¼ inches.

Post height above ground: 44 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Top Rail: powder-coated aluminum.

Bottom Rail: powder-coated aluminum.

Horizontal Connector: aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

Redwood boards occupy four separate rail-framed rows in this Surface Mount composite fence. The nominal 6 × 3.5 ft semi privacy fence has approximately 4-inch openings between groups.

Wood fibers and recycled plastic make up the wood plastic composite board core. Aluminum rails outline the wood grain faces. Galvanized steel posts with welded base plates support the fence system, using customer-supplied ground anchors.

Limited warranty periods (residential / commercial use):

Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Redwood boards occupy four separate rail-framed rows in this Surface Mount composite fence. The nominal 6 × 3.5 ft semi privacy fence has approximately 4-inch openings between groups.
Wood fibers and recycled plastic make up the wood plastic composite board core. Aluminum rails outline the wood grain faces. Galvanized steel posts with welded base plates support the fence system, using customer-supplied ground anchors.
Engineering Dimensions
Nominal size (width × height): 6 × 3.5 ft.
Mounting Type: Surface Mount.
Fence height: 42 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 44 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
Four rail pairs frame the individual Redwood boards.
Wood-grain infill contrasts with the Private Black metal outline.
Mild soap, water and a soft cloth suit routine board upkeep.
Welded steel post bases provide the Surface Mount support.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Redwood Fence Board x 1 pack (4 boards)
Modern Yard™ Horizontal Fence Rail Set x 4 sets
Limited warranty periods (residential / commercial use):
Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
