Get a better sense of your project cost and materials.


Redwood Composite Horizontal Fence Panel with a 1 × 6 ft Decorative Panel (P01) — 6 ft W × 3.5 ft H - Surface Mount

Style #:

WPH/DP16P01RD5DP1-72X42-SM

A Private Black P01 steel detail complements five Redwood boards in this Surface Mount composite fence. The horizontal composite fence section is nominally 6 × 3.5 ft.

Wood plastic composite forms the Redwood infill, with wood fibers and recycled plastic inside the boards. Galvanized steel and aluminum rails form the decorative module. Welded-base steel posts support the fence system; their ground anchors are customer-supplied.

  • A Private Black P01 steel detail complements five Redwood boards in this Surface Mount composite fence. The horizontal composite fence section is nominally 6 × 3.5 ft.

    Wood plastic composite forms the Redwood infill, with wood fibers and recycled plastic inside the boards. Galvanized steel and aluminum rails form the decorative module. Welded-base steel posts support the fence system; their ground anchors are customer-supplied.

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3.5 ft.

    Mounting Type: Surface Mount.

    Fence height: 43 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 45 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    Decorative Panel: electrocoated and powder-coated galvanized steel.

    Decorative Panel Top Rail: powder-coated aluminum.

    Decorative Panel Bottom Rail: powder-coated aluminum.

    Decorative Panel Side Rail: powder-coated aluminum.

    • Five Redwood boards pair with a single patterned P01 steel panel.
    • Redwood wood-grain faces complement the Private Black metal detail.
    • Routine board care requires no painting, staining or sealing.
    • Welded bases provide the specified Surface Mount post support.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard 1 x 6 ft decorative fence panel with modern perforated metal design

Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel

Imagine Your Future Fence

Installation Guides

Installation Manual

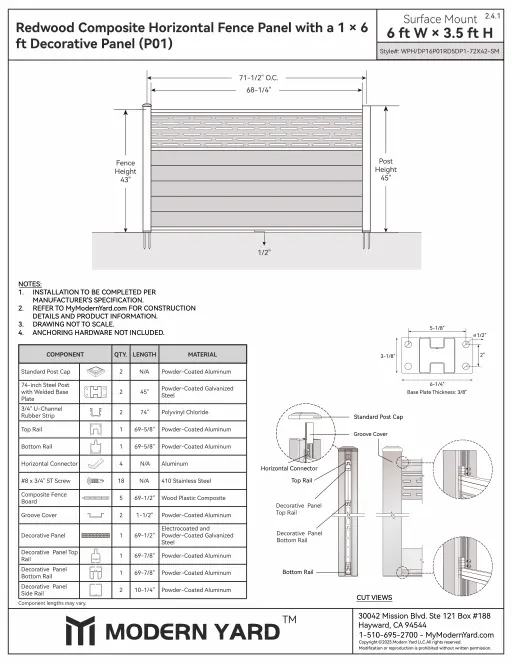

​Technical Drawing


Frequently Asked Questions

Five Redwood composite boards and one 1 × 6 ft decorative panel in Pattern P01 form the specified infill.

No. Redwood names the five composite boards' finish. The P01 panel is electrocoated and powder-coated galvanized steel with aluminum rails.

Ground anchors for the Redwood decorative panel's post bases are customer-supplied.
