8x4 Redwood Vertical Slatted-Top Fence

Redwood Wood-Look Vertical Composite Fence with Steel Slatted Top — 8 × 4 Feet — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Redwood Composite Vertical Slatted Top Fence Panel — 8 ft W × 4 ft H - Surface Mount

Style #:

WPV/STRD16LNPB2-96X48-SM

Engineering Dimensions

Nominal size (width × height): 8 × 4 ft.

Mounting Type: Surface Mount.

Fence height: 48 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 96⅜ inches.

Clear opening between posts: approximately 93¼ inches.

Post height above ground: 50 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

U Rail: powder-coated galvanized steel.

End Cap: PA6.

Top Rail Connector: powder-coated aluminum.

Bottom Rail Connector: powder-coated aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Line™ Fence Slat: powder-coated galvanized steel.

Base Connector: powder-coated aluminum.

Stackable Connector: powder-coated aluminum.

L Connector: 201 stainless steel.

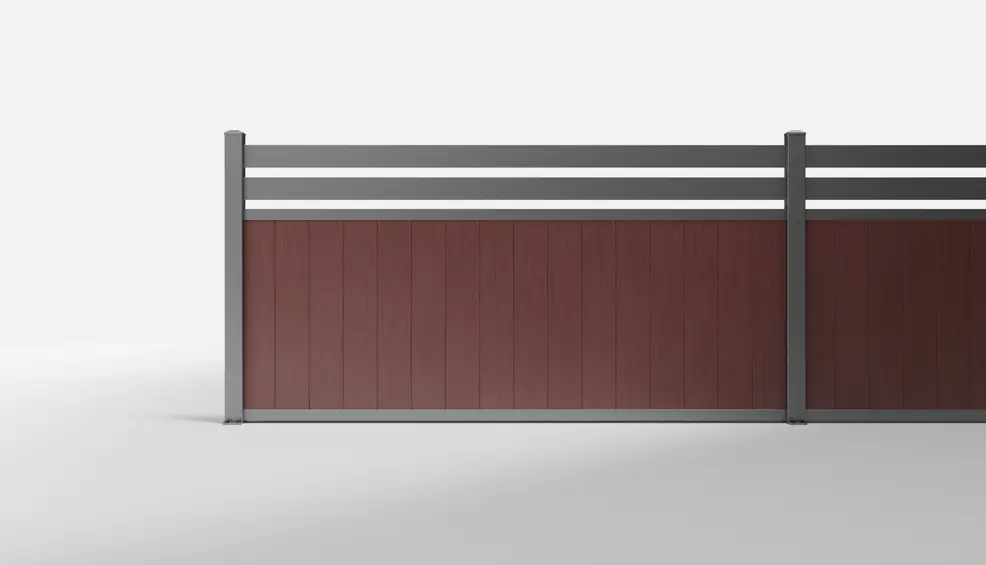

Redwood wood-grain boards sit beneath two open LINE rows in this Surface Mount composite fence. Sixteen short upright pieces and the Private Black steel top make up the nominal 8 × 4 ft section.

Wood fibers and recycled plastic give the composite its natural wood appearance. Redwood faces resist moisture, insects, rot and fading without routine painting, staining or sealing. Compare the vertical composite collection by infill layout.

Order the vertical rail set, LINE hardware and welded-base steel posts separately from the infill packs. Supply your own ground anchors.

Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Redwood Fence Board x 2 packs (8 full-length boards; 16 installed pieces after cutting)
Modern Yard™ Vertical Fence Rail Set x 1 set
Modern Yard Line™ Fence Slat x 1 pack (2 slats)
Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats x 0.2 set (Base Connector x 6 PCs, Stackable Connector x 2 PCs, L Connector x 2 PCs)

Limited warranty periods (residential / commercial use):

Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Redwood wood-grain boards sit beneath two open LINE rows in this Surface Mount composite fence. Sixteen short upright pieces and the Private Black steel top make up the nominal 8 × 4 ft section.
Wood fibers and recycled plastic give the composite its natural wood appearance. Redwood faces resist moisture, insects, rot and fading without routine painting, staining or sealing. Compare the vertical composite collection by infill layout.
Order the vertical rail set, LINE hardware and welded-base steel posts separately from the infill packs. Supply your own ground anchors.
Engineering Dimensions
Nominal size (width × height): 8 × 4 ft.
Mounting Type: Surface Mount.
Fence height: 48 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 50 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
U Rail: powder-coated galvanized steel.
End Cap: PA6.
Top Rail Connector: powder-coated aluminum.
Bottom Rail Connector: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Line™ Fence Slat: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
Stackable Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Sixteen Redwood pieces create the vertical board body beneath two open LINE rows.
The wood-grain composite faces contrast with Private Black metal framing.
Redwood composite resists moisture, insects, rot and fading without regular coatings.
Welded-base steel posts support the panel at the mounting surface.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Redwood Fence Board x 2 packs (8 full-length boards; 16 installed pieces after cutting)
Modern Yard™ Vertical Fence Rail Set x 1 set
Modern Yard Line™ Fence Slat x 1 pack (2 slats)
Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats x 0.2 set (Base Connector x 6 PCs, Stackable Connector x 2 PCs, L Connector x 2 PCs)
Limited warranty periods (residential / commercial use):
Structural defects in Redwood boards and covered metal fence parts: up to 25 / 10 years.
Covered Redwood board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
