Get a better sense of your project cost and materials.


Two Charcoal boards increase the darker share of this mixed Redwood Surface Mount fence. Five Redwood boards complete the seven-board, full-privacy horizontal composite fence panel at a nominal 6 × 3.5 ft size.

Wood-grain WPC infill sits within Private Black steel posts and aluminum rails. One horizontal rail set borders the joined board stack. The clear opening between posts is 68¼ inches within the nominal 6 ft section width.

The horizontal composite system accommodates sloping ground, stepped sections and angled layouts with matching rails and compatible fittings.

  • Two Charcoal boards increase the darker share of this mixed Redwood Surface Mount fence. Five Redwood boards complete the seven-board, full-privacy horizontal composite fence panel at a nominal 6 × 3.5 ft size.

    Wood-grain WPC infill sits within Private Black steel posts and aluminum rails. One horizontal rail set borders the joined board stack. The clear opening between posts is 68¼ inches within the nominal 6 ft section width.

    The horizontal composite system accommodates sloping ground, stepped sections and angled layouts with matching rails and compatible fittings.

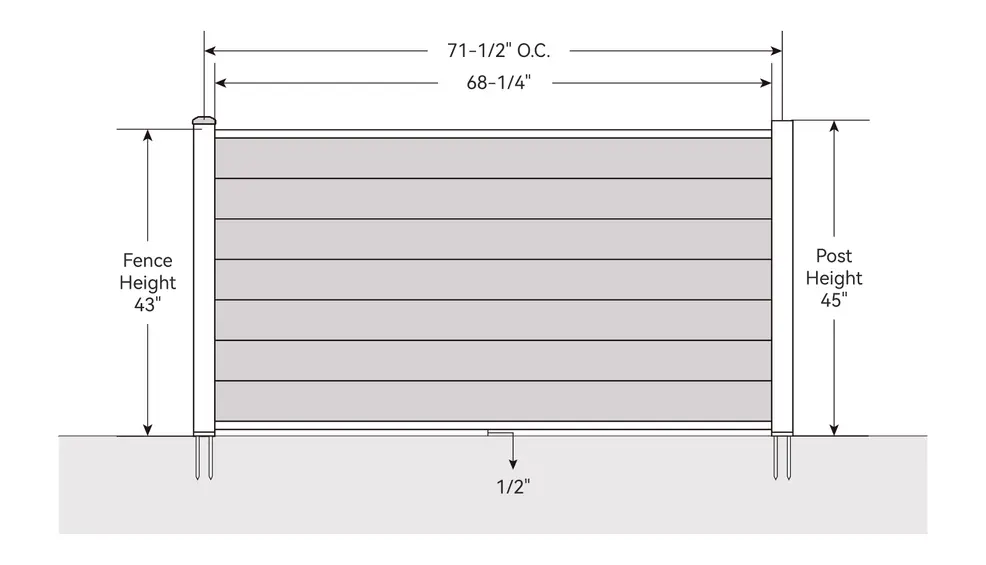

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3.5 ft.

    Mounting Type: Surface Mount.

    Fence height: 43 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 45 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Two Charcoal boards contrast with five Redwood boards while keeping the seven-board infill closed.
    • Both the Redwood and Charcoal pieces have wood-grain faces, with different composite colors in one infill.
    • Neither composite color needs regular painting, staining or sealing.
    • Steel posts have welded mounting plates. You buy this Surface Mount version's ground anchors separately.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal and Redwood boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal and Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Cover of Horizontal composite fence installation manual

Installation Manual

Engineering drawing cover for Charcoal and Redwood Composite Horizontal Full Privacy Fence Panel — 2 Charcoal Boards + 5 Redwood Boards — 6 ft W × 3.5 ft H - Surface Mount (Style WPH/FPCH2RD5-72X42-SM).

​Technical Drawing


Frequently Asked Questions

No. This product requires two Charcoal boards and five Redwood boards; the one-Charcoal alternative has six Redwood boards.

The configuration uses one horizontal rail set for the seven-board mixed-color infill.

Yes. The customer supplies the ground anchors for the base plates.
