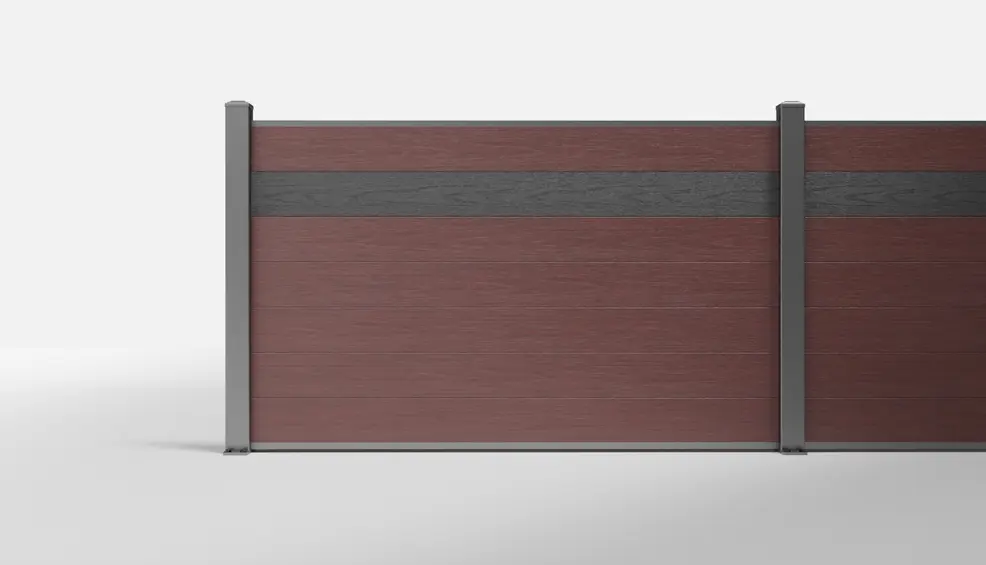

A six-to-one Redwood and Charcoal mix gives this Surface Mount composite fence its contrasting infill. Seven boards form the nominal 6 × 3.5 ft horizontal composite fence panel within Private Black framing.
The wood plastic composite boards have a wood grain texture. Redwood contains wood fibers and recycled plastic beneath a PE wrap that helps resist moisture, fading and decay. Tongue-and-groove joints keep the two-color face closed.
Powder-coated galvanized steel fence posts with welded base plates support the aluminum rails. This fence system uses customer-supplied ground anchors and has a 45-inch finished post height above ground.
A six-to-one Redwood and Charcoal mix gives this Surface Mount composite fence its contrasting infill. Seven boards form the nominal 6 × 3.5 ft horizontal composite fence panel within Private Black framing.
The wood plastic composite boards have a wood grain texture. Redwood contains wood fibers and recycled plastic beneath a PE wrap that helps resist moisture, fading and decay. Tongue-and-groove joints keep the two-color face closed.
Powder-coated galvanized steel fence posts with welded base plates support the aluminum rails. This fence system uses customer-supplied ground anchors and has a 45-inch finished post height above ground.
Engineering Dimensions
Nominal size (width × height): 6 × 3.5 ft.
Mounting Type: Surface Mount.
Fence height: 43 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 45 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
- Six Redwood boards and one Charcoal board form a joined face with a single contrasting piece.
- Wood-grain faces appear in both composite colors across the closed board layout.
- Clean the composite board faces with gentle soap and water, using a soft cloth or brush for routine care.
- The Surface Mount steel posts have welded base plates. You provide the anchors that fasten them.
- Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
- Modern Yard™ Redwood Fence Board x 1.5 packs (6 boards)
- Modern Yard™ Charcoal Fence Board x 0.25 pack (1 board)
- Modern Yard™ Horizontal Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal and Redwood boards and covered metal fence parts: up to 25 / 10 years.
- Covered Charcoal and Redwood board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently Asked Questions
How many whole packs supply one Redwood and Charcoal panel?
With no spare boards, two four-board Redwood packs and one Charcoal pack supply six Redwood boards and one Charcoal board. For several composite fence panels, add each color’s demand across the order before purchasing complete packs.
Is the Charcoal accent a separate metal component?
The accent is a Charcoal composite board. It joins the Redwood boards with the same tongue-and-groove edges. Steel posts and aluminum rails form the separate metal supports.
What should I plan for the Surface Mount bases?
You provide the ground anchors for the welded bases. Count shared posts once in a continuous run and include free-standing ends; an isolated section needs two installed posts.
