Private Black FireGuard Vertical Full Privacy Metal Fence Panel — 8 ft W × 6 ft H - Surface Mount

Style #:

FGV/FPPB9-96X72-SM

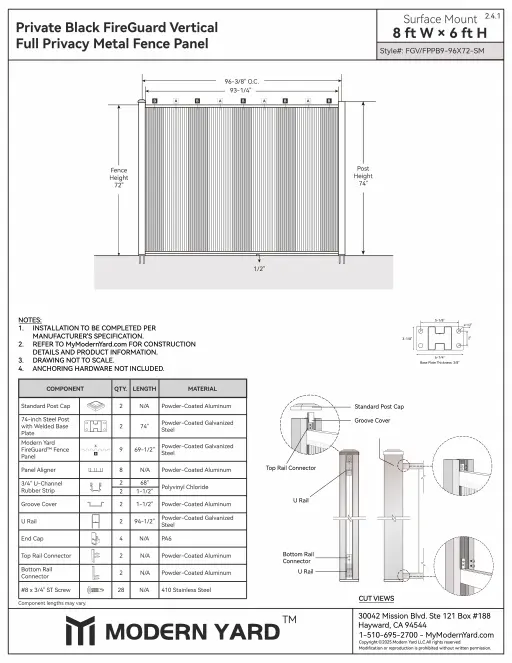

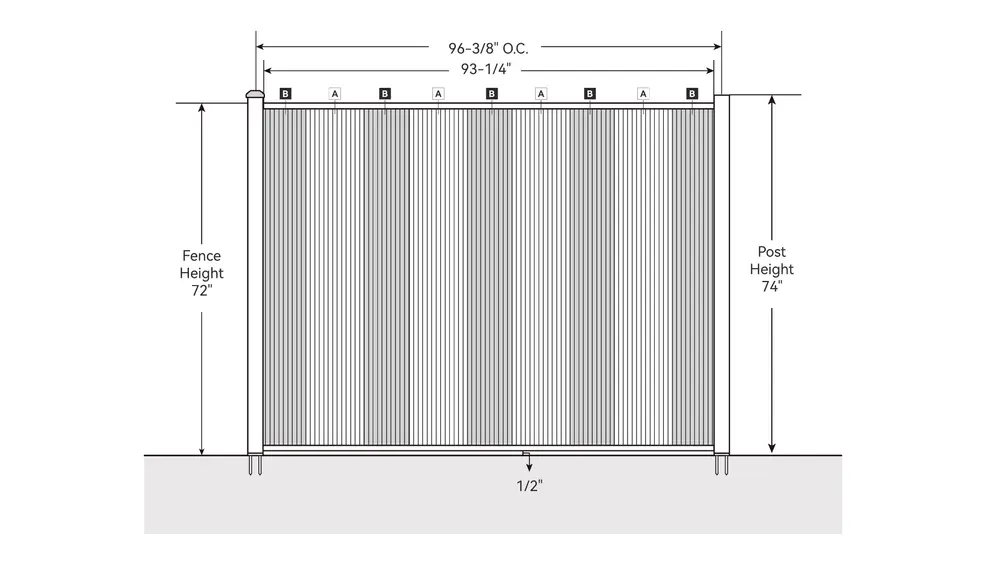

Engineering Dimensions

Nominal size (width × height): 8 × 6 ft.

Mounting Type: Surface Mount.

Fence height: 72 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 96⅜ inches.

Clear opening between posts: approximately 93¼ inches.

Post height above ground: 74 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

Modern Yard FireGuard™ Fence Panel: powder-coated galvanized steel.

Panel Aligner: powder-coated aluminum.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Groove Cover: powder-coated aluminum.

U Rail: powder-coated galvanized steel.

End Cap: PA6.

Top Rail Connector: powder-coated aluminum.

Bottom Rail Connector: powder-coated aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

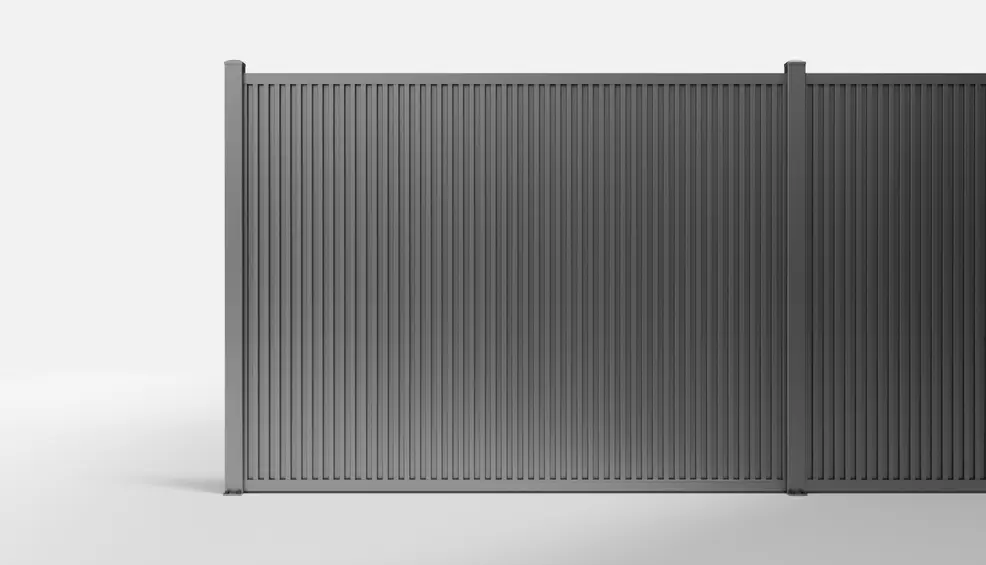

Nine joined FireGuard panels form this vertical metal privacy fence. The nominal 8 × 6 ft section has Private Black galvanized steel infill and welded-base steel posts.

Powder coating helps protect the corrugated panels from corrosion and outdoor weather exposure. Aluminum Panel Aligners join the pieces; steel U rails frame the top and bottom.

Three packs supply nine panels and nine aligners. Use eight aligners and keep one spare. Order the rail set and posts separately, with customer-supplied ground anchors. Compare the corrugated metal fence collection for other configurations.

Limited warranty periods (residential / commercial use):

Structural defects in covered metal fence parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Nine joined FireGuard panels form this vertical metal privacy fence. The nominal 8 × 6 ft section has Private Black galvanized steel infill and welded-base steel posts.
Powder coating helps protect the corrugated panels from corrosion and outdoor weather exposure. Aluminum Panel Aligners join the pieces; steel U rails frame the top and bottom.
Three packs supply nine panels and nine aligners. Use eight aligners and keep one spare. Order the rail set and posts separately, with customer-supplied ground anchors. Compare the corrugated metal fence collection for other configurations.
Engineering Dimensions
Nominal size (width × height): 8 × 6 ft.
Mounting Type: Surface Mount.
Fence height: 72 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 74 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
Modern Yard FireGuard™ Fence Panel: powder-coated galvanized steel.
Panel Aligner: powder-coated aluminum.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Groove Cover: powder-coated aluminum.
U Rail: powder-coated galvanized steel.
End Cap: PA6.
Top Rail Connector: powder-coated aluminum.
Bottom Rail Connector: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Nine upright steel panels create the closed corrugated face.
Private Black powder coating helps the galvanized panels resist corrosion.
Aluminum aligners join the infill within steel U rails.
Welded-base steel posts mount to your separately supplied anchors.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard FireGuard™ Fence Panel (3-Pack) x 3 packs (9 panels)
Modern Yard™ Vertical Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
Structural defects in covered metal fence parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
