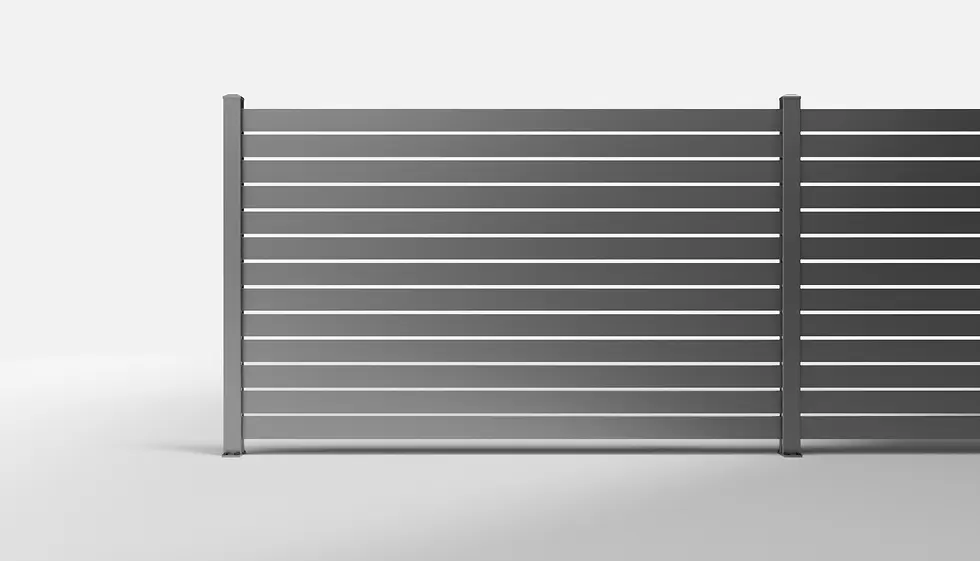

Private Black LINE Horizontal Semi-Privacy Metal Fence Panel with Half-Inch Gaps — 8 ft W × 6 ft H - Surface Mount

Style #:

LNH/G05PB16-96X72-SM

This six-foot Surface Mount LINE fence creates open horizontal rows with sixteen slats and half-inch gaps. Its nominal 8 ft width combines Private Black powder-coated galvanized steel infill with steel posts on welded base plates. Matching aluminum spacing connectors and stainless steel L Connectors hold the semi-privacy pattern.

The rectangular steel faces give the section clearly defined lines. Explore the LINE horizontal metal fence range for related configurations. Across the series, slopes, stepped sections and angled connections are supported with corresponding layouts and fittings.

  • This six-foot Surface Mount LINE fence creates open horizontal rows with sixteen slats and half-inch gaps. Its nominal 8 ft width combines Private Black powder-coated galvanized steel infill with steel posts on welded base plates. Matching aluminum spacing connectors and stainless steel L Connectors hold the semi-privacy pattern.

    The rectangular steel faces give the section clearly defined lines. Explore the LINE horizontal metal fence range for related configurations. Across the series, slopes, stepped sections and angled connections are supported with corresponding layouts and fittings.

  • Engineering Dimensions

    Nominal size (width × height): 8 × 6 ft.

    Mounting Type: Surface Mount.

    Fence height: 72 inches.

    Gap below the fence: 1½ inches.

    Post spacing (center to center): 96⅜ inches.

    Clear opening between posts: approximately 93¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Line™ Fence Slat: powder-coated galvanized steel.

    Base Connector: powder-coated aluminum.

    Stackable Connector: powder-coated aluminum.

    L Connector: 201 stainless steel.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Groove Cover: powder-coated aluminum.

    • Half-inch openings separate sixteen horizontal Private Black LINE slats.
    • The powder-coated galvanized steel infill has a protective outdoor finish.
    • Thirty Stackable Connectors maintain the specified row spacing.
    • Steel posts with welded bases support the panel at the surface, with customer-supplied anchors.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in covered metal fence parts: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard LINE 1 x 4 x 8 ft galvanized steel fence slat with dark powder-coated finish

Modern Yard Line™ Fence Slat - 1 in. x 4 in. x 8 ft (2-Pack)

Modern Yard semi-privacy hardware kit for 1-inch horizontal fence slats

Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats

Imagine Your Future Fence

Installation Guides

Cover of LINE horizontal metal fence semi privacy installation manual

Installation Manual

Engineering drawing cover for Private Black LINE Horizontal Semi-Privacy Metal Fence Panel with Half-Inch Gaps — 8 ft W × 6 ft H - Surface Mount (Style LNH/G05PB16-96X72-SM).

​Technical Drawing


Frequently Asked Questions

Half an inch is the opening between adjacent LINE slats. The drawing specifies a separate 1½-inch ground clearance.

Each pack contains two LINE steel slats and their PVC end plugs. Eight packs supply sixteen slats with none left over.

You supply the ground anchors for the welded post bases. The semi-privacy hardware serves the slats: two Base Connectors, thirty Stackable Connectors and two L Connectors per section.
