This nine-slat Surface Mount metal fence has Private Black horizontal rows and a nominal 8 × 4 ft size. The nominal 1-inch-gap LINE pattern leaves openings through the infill. Its drawing lists a 47-inch fence height, with three inches of clearance below.
The horizontal slats are galvanized steel with powder coating. Their protective finish helps resist corrosion and outdoor wear. Steel posts with welded base plates support this layout for Surface Mount. Aluminum spacing connectors and stainless steel L Connectors complete the slat assembly.
Nine installed pieces use 4.5 two-slat packs of material. Match the Semi-Privacy Hardware Kit to the required eighteen Base Connectors, sixteen Stackable Connectors and two L Connectors. Check the total parts needed for your fence panels before buying complete products.
Use the 74-inch welded-base post product, trimmed at its top for the specified 49-inch post height. Retain the base plate. Supply the ground anchors separately and count support locations across the run, including any free ends. A standalone section needs two posts.
This nine-slat Surface Mount metal fence has Private Black horizontal rows and a nominal 8 × 4 ft size. The nominal 1-inch-gap LINE pattern leaves openings through the infill. Its drawing lists a 47-inch fence height, with three inches of clearance below.
The horizontal slats are galvanized steel with powder coating. Their protective finish helps resist corrosion and outdoor wear. Steel posts with welded base plates support this layout for Surface Mount. Aluminum spacing connectors and stainless steel L Connectors complete the slat assembly.
Nine installed pieces use 4.5 two-slat packs of material. Match the Semi-Privacy Hardware Kit to the required eighteen Base Connectors, sixteen Stackable Connectors and two L Connectors. Check the total parts needed for your fence panels before buying complete products.
Use the 74-inch welded-base post product, trimmed at its top for the specified 49-inch post height. Retain the base plate. Supply the ground anchors separately and count support locations across the run, including any free ends. A standalone section needs two posts.

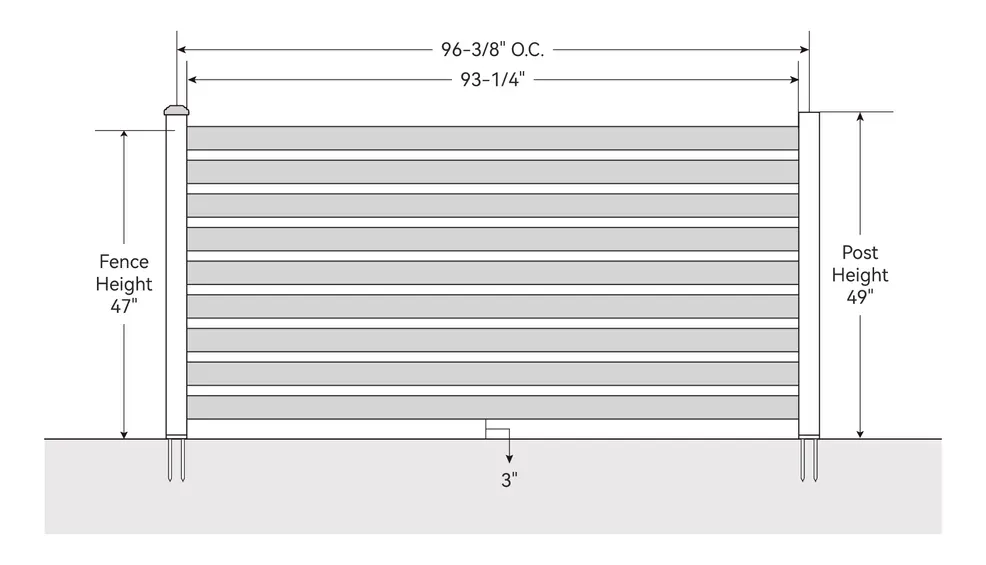

Engineering Dimensions
Nominal size (width × height): 8 × 4 ft.
Mounting Type: Surface Mount.
Fence height: 47 inches.
Gap below the fence: 3 inches.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 49 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Line™ Fence Slat: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
Stackable Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
#8 x 3/4" ST Screw: 410 stainless steel.
Groove Cover: powder-coated aluminum.
- Nine steel horizontal slats create the nominal one-inch open-row layout.
- The Private Black powder-coated finish helps protect the galvanized slat surfaces from corrosion and outdoor wear.
- The spacing arrangement uses aluminum Base and Stackable Connectors with stainless steel L Connectors.
- Welded-base steel posts provide the surface connection for the selected fence height.
- Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
- Modern Yard Line™ Fence Slat x 4.5 packs (9 slats)
- Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats x 0.3 set (Base Connector x 18 PCs, Stackable Connector x 16 PCs, L Connector x 2 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in covered metal fence parts: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently Asked Questions
Why is the nominal four-foot panel listed at 47 inches?
Four feet is the size label. The drawing gives this nine-slat layout a 47-inch fence height and 49-inch post height. Its three-inch ground gap is a separate dimension. Use the listed figures when setting out the selected panel.
Does the product use aluminum slats?
The infill is galvanized steel. Aluminum forms the Base and Stackable Connectors used for spacing. Private Black is the slat and post finish; it does not change the steel infill into an aluminum fence.
What should I include beyond the slat packs?
Order the semi-privacy hardware and the required welded-base posts as separate products. Supply ground anchors for the bases separately. The one-post share in Component Needs describes a connected bay; an independent bay also needs its other end support.
