6x3 Charcoal 1-Inch-Gap Composite Fence

Charcoal Wood-Look Horizontal Composite Semi-Privacy Fence with 1-Inch Gaps — 6 × 3 Feet — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Charcoal Composite Horizontal Semi-Privacy Fence Panel with 1-Inch Gaps — 6 ft W × 3 ft H - Surface Mount

Style #:

WPH/G10CH5-72X36-SM

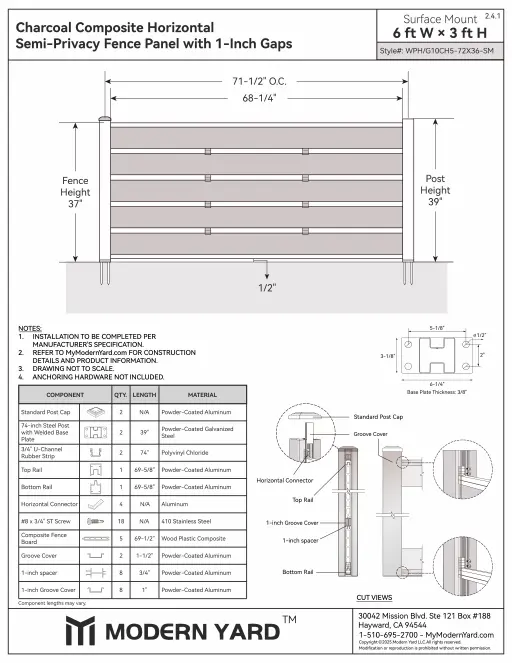

Engineering Dimensions

Nominal size (width × height): 6 × 3 ft.

Mounting Type: Surface Mount.

Fence height: 37 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 71½ inches.

Clear opening between posts: approximately 68¼ inches.

Post height above ground: 39 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Top Rail: powder-coated aluminum.

Bottom Rail: powder-coated aluminum.

Horizontal Connector: aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

1-inch Composite Spacer: powder-coated aluminum.

1-inch Groove Cover: powder-coated aluminum.

Choose this Surface Mount composite fence for a Charcoal horizontal layout with visible 1-inch gaps. Five wood-grain boards form a semi privacy fence panel, nominally 6 ft wide × 3 ft high. The infill mixes wood fibers with recycled plastic.

Steel posts attach through welded base plates, while an aluminum rail set holds the boards across the opening. Order boards, posts, rails and spacing parts separately. Supply the anchors for the mounting surface; each finished post stands 39 inches above the mounting level.

Limited warranty periods (residential / commercial use):

Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
Covered Charcoal board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Claims must meet written terms. Normal use, color and coating claim conditions apply. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, we refund or replace defective boards or parts. The original net purchase price sets the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. We pay if the law requires it or Modern Yard agrees in writing to pay these costs.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Choose this Surface Mount composite fence for a Charcoal horizontal layout with visible 1-inch gaps. Five wood-grain boards form a semi privacy fence panel, nominally 6 ft wide × 3 ft high. The infill mixes wood fibers with recycled plastic.
Steel posts attach through welded base plates, while an aluminum rail set holds the boards across the opening. Order boards, posts, rails and spacing parts separately. Supply the anchors for the mounting surface; each finished post stands 39 inches above the mounting level.
Engineering Dimensions
Nominal size (width × height): 6 × 3 ft.
Mounting Type: Surface Mount.
Fence height: 37 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 71½ inches.
Clear opening between posts: approximately 68¼ inches.
Post height above ground: 39 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Top Rail: powder-coated aluminum.
Bottom Rail: powder-coated aluminum.
Horizontal Connector: aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
1-inch Composite Spacer: powder-coated aluminum.
1-inch Groove Cover: powder-coated aluminum.
Five Charcoal composite boards sit 1 inch apart in an open horizontal pattern.
Charcoal board faces show wood grain between the open rows.
Use gentle soap and water for ordinary composite-board cleaning, with a soft brush or cloth against the surface.
Surface Mount steel posts have welded plates at their bases. The customer provides the ground anchors separately.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Accessory – 1-Inch Spacer for Horizontal Fence (40-Pack) x 0.2 pack (1-inch Groove Cover x 8 PCs, 1-inch Composite Spacer x 8 PCs)
Modern Yard™ Charcoal Fence Board x 1.25 packs (5 boards)
Modern Yard™ Horizontal Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
Covered Charcoal board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Claims must meet written terms. Normal use, color and coating claim conditions apply. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, we refund or replace defective boards or parts. The original net purchase price sets the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. We pay if the law requires it or Modern Yard agrees in writing to pay these costs.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
