This Teak composite fence gate pairs two full-privacy leaves in a nominal 7 × 6 ft double assembly. Eleven horizontal board pieces fill each welded aluminum frame, giving twenty-two pieces across the pair.
Wood fibers and recycled plastic form the Teak composite, with a wood-grain surface that resists moisture, insects, rot and fading. Teak identifies the board color, while Private Black identifies the metal finish.
Purchase the frames, boards and two In-Ground steel post products separately. Add one mechanical combination lock for the active leaf and the outdoor handle set with drop rod for the inactive leaf. Assemble the selected infill on site.
Teak board faces need no regular painting, staining or sealing. Clean them with mild soap, water and a soft brush or cloth, avoiding harsh chemicals and abrasive tools. The composite fence gate options include other infill patterns and leaf formats.
This Teak composite fence gate pairs two full-privacy leaves in a nominal 7 × 6 ft double assembly. Eleven horizontal board pieces fill each welded aluminum frame, giving twenty-two pieces across the pair.
Wood fibers and recycled plastic form the Teak composite, with a wood-grain surface that resists moisture, insects, rot and fading. Teak identifies the board color, while Private Black identifies the metal finish.
Purchase the frames, boards and two In-Ground steel post products separately. Add one mechanical combination lock for the active leaf and the outdoor handle set with drop rod for the inactive leaf. Assemble the selected infill on site.
Teak board faces need no regular painting, staining or sealing. Clean them with mild soap, water and a soft brush or cloth, avoiding harsh chemicals and abrasive tools. The composite fence gate options include other infill patterns and leaf formats.
Engineering Dimensions
Nominal size (width × height): 7 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 87⅜ inches.
Clear opening between posts: approximately 84¼ inches.
Post height above ground: 74 inches, excluding the post cap.
Post depth below ground: 40 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Mechanical Combination Lock: 304 stainless steel.
Outdoor Gate Handle Set with Drop Rod: 304 stainless steel.
#8 x 3/4" ST Screw: 316 stainless steel.
- Twenty-two Teak pieces create two joined horizontal privacy faces.
- The wood-grain composite resists fading, moisture, insects and rot.
- Two welded aluminum frames connect to the specified steel end posts.
- Teak board surfaces need no routine paint, stain or sealer.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 2 sets
- Modern Yard™ Teak Fence Board x 5.5 packs (22 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ Stainless Steel Outdoor Gate Handle Set with Drop Rod x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock and outdoor handle set are outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
How does the full-privacy infill differ from the spaced version?

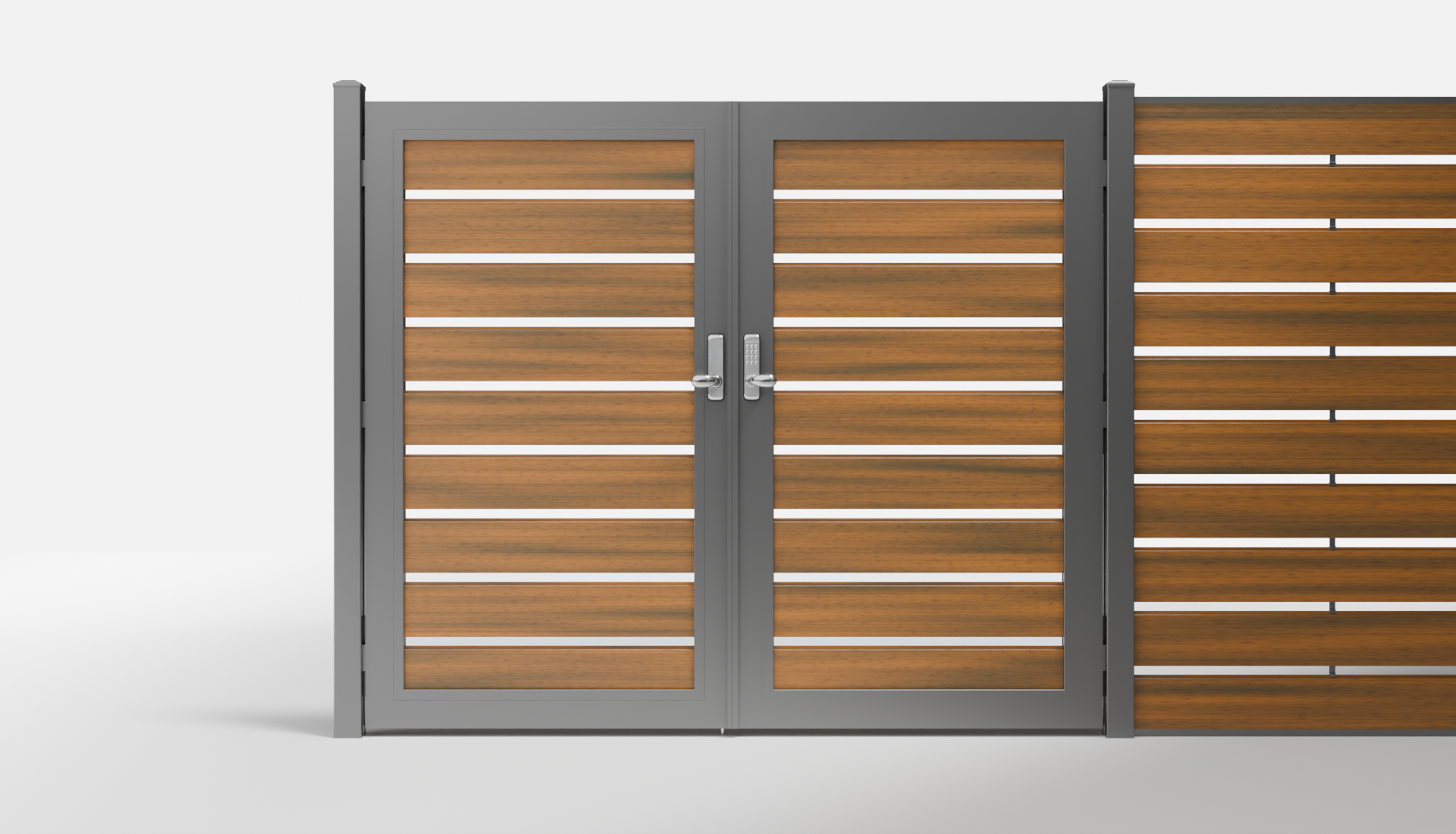

This gate has eleven joined pieces per leaf. The Teak double semi-privacy gate uses nine full pieces and a solid terminal strip in each frame. Its one-inch view gaps need separate spacers.
How many whole board packs cover this double gate?
Twenty-two original Teak boards equal a 5.5-pack material share. For this gate alone, six four-board packs supply twenty-four originals and leave two unused. Keep the listed two-frame quantity for the complete double assembly.
How do I plan the gate with adjoining composite fencing?
Include each fence panel and the double gate in a Teak gate-and-fence material estimate. Combine compatible Teak stock before rounding packs, and count shared supports once. Keep the specified gate post where a fixed section joins the gate.
