Teak Composite Horizontal 1 × 6 ft Decorative Panel, Pattern P01 Double Gate — 7 ft W × 6 ft H - In-Ground

Style #:

WPH/DGDP16P01TK18DP2-84X72-IG

Teak boards run across both leaves of this Teak horizontal decorative double gate. The composite double gate with decorative panels requires eighteen boards and two P01 modules, divided as nine boards and one steel insert in each aluminum frame.

P01 panels use electrocoating and powder coating over galvanized steel. Their aluminum rails fit with the panels in each frame. The 1 × 6 ft kit name is not the finished leaf size.

Assemble this nominal 7 ft wide by 6 ft high composite fence gate on site between two In-Ground supports. Use the double gate collection when comparing paired-leaf options, and keep the listed lock and handle set as quantities for the entire gate.

  • Teak boards run across both leaves of this Teak horizontal decorative double gate. The composite double gate with decorative panels requires eighteen boards and two P01 modules, divided as nine boards and one steel insert in each aluminum frame.

    P01 panels use electrocoating and powder coating over galvanized steel. Their aluminum rails fit with the panels in each frame. The 1 × 6 ft kit name is not the finished leaf size.

    Assemble this nominal 7 ft wide by 6 ft high composite fence gate on site between two In-Ground supports. Use the double gate collection when comparing paired-leaf options, and keep the listed lock and handle set as quantities for the entire gate.

  • Engineering Dimensions

    Nominal size (width × height): 7 × 6 ft.

    Mounting Type: In-Ground.

    Gate height: 72 inches.

    Gap below the gate: 1 inch.

    Post spacing (center to center): 87⅜ inches.

    Clear opening between posts: approximately 84¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 40 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 28½ / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    71 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Frame Cover Strip: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    Groove Cover: powder-coated aluminum.

    Mechanical Combination Lock: 304 stainless steel.

    Outdoor Gate Handle Set with Drop Rod: 304 stainless steel.

    #8 x 3/4" ST Screw: 316 stainless steel.

    Decorative Panel: electrocoated and powder-coated galvanized steel.

    Decorative Panel Top Rail: powder-coated aluminum.

    Decorative Panel Bottom Rail: powder-coated aluminum.

    Decorative Panel Side Rail: powder-coated aluminum.

    • Nine Teak pieces are fitted horizontally in each of the two gate leaves.
    • Each leaf pairs its Teak wood-grain boards with a patterned P01 steel insert.
    • Private Black aluminum frames surround the Teak composite and decorative steel.
    • A single mechanical combination lock provides keyless entry without batteries or electrical power.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
    • Covered Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock and outdoor handle set are outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Modern Yard 71 x 42 aluminum gate frame on a white background

Modern Yard™ 71 Inches x 42 Inches Gate Frame

Modern Yard 304 stainless steel mechanical combination gate lock

Modern Yard™ Stainless Steel Mechanical Combination Lock

Modern Yard stainless steel outdoor gate handle set with drop rod

Modern Yard™ Stainless Steel Outdoor Gate Handle Set with Drop Rod

Modern Yard 1 x 6 ft decorative fence panel with modern perforated metal design

Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel

Imagine Your Future Fence

​Installation Guides

Installation Manual

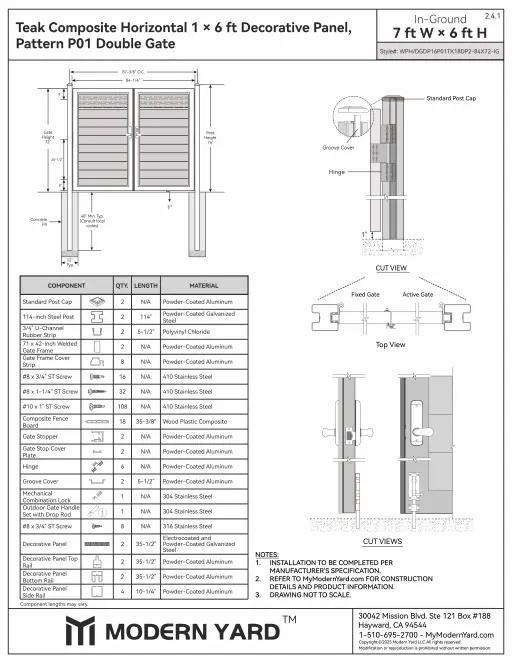

​Technical Drawing


Frequently asked questions

Yes. Each leaf needs one aluminum frame. The listed boards and decorative kits cover both leaves.

The complete double gate uses two 114-inch In-Ground posts. The two-post quantity covers both leaves.

No. This item uses On-Site Assembly: the frames, Teak boards and P01 kits are individual required products. It is different from a preassembled welded gate.
