These Redwood composite double gates use twenty-two joined boards across two leaves. Eleven horizontal boards fill each welded aluminum frame. The composite fence gate measures a nominal 7 × 6 ft, with Private Black metal framing and two galvanized steel end posts.
Redwood names the composite color. These wood-grain boards combine wood fibers with recycled plastic. They resist moisture, insects, rot and fading without routine painting, staining or sealing.
Clean with mild soap, water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools.
Order two frames, board packs and steel posts separately. The active leaf takes one mechanical combination lock. The other uses the outdoor handle set with drop rod. Include both hardware products in your gate purchase.
This pair of composite gates needs twenty-two original Redwood boards, with one cut piece taken from each. For the gate alone, six four-board packs leave two boards unused. Total compatible Redwood stock across a larger fence and gate project before rounding to whole packs.
The gate uses two 114-inch posts, with 74 inches above ground without caps and 40 inches below. Retain those gate posts where a fixed section shares a support.
Explore the Redwood double composite fence gate formats before selecting the leaf arrangement. Assemble this joined-board layout on site and retain its specified In-Ground gate posts.
These Redwood composite double gates use twenty-two joined boards across two leaves. Eleven horizontal boards fill each welded aluminum frame. The composite fence gate measures a nominal 7 × 6 ft, with Private Black metal framing and two galvanized steel end posts.
Redwood names the composite color. These wood-grain boards combine wood fibers with recycled plastic. They resist moisture, insects, rot and fading without routine painting, staining or sealing.
Clean with mild soap, water and a soft brush or cloth. Avoid harsh chemicals and abrasive tools.
Order two frames, board packs and steel posts separately. The active leaf takes one mechanical combination lock. The other uses the outdoor handle set with drop rod. Include both hardware products in your gate purchase.
This pair of composite gates needs twenty-two original Redwood boards, with one cut piece taken from each. For the gate alone, six four-board packs leave two boards unused. Total compatible Redwood stock across a larger fence and gate project before rounding to whole packs.
The gate uses two 114-inch posts, with 74 inches above ground without caps and 40 inches below. Retain those gate posts where a fixed section shares a support.
Explore the Redwood double composite fence gate formats before selecting the leaf arrangement. Assemble this joined-board layout on site and retain its specified In-Ground gate posts.
Engineering Dimensions
Nominal size (width × height): 7 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 87⅜ inches.
Clear opening between posts: approximately 84¼ inches.
Post height above ground: 74 inches, excluding the post cap.
Post depth below ground: 40 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Mechanical Combination Lock: 304 stainless steel.
Outdoor Gate Handle Set with Drop Rod: 304 stainless steel.
#8 x 3/4" ST Screw: 316 stainless steel.
- Eleven horizontal Redwood pieces fill each leaf in a joined privacy pattern.
- Wood-grain composite resists moisture, insects, rot and fading.
- Two welded aluminum frames carry twenty-two board pieces in total.
- The active leaf's separate mechanical combination lock needs no keys, batteries or electrical power.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 2 sets
- Modern Yard™ Redwood Fence Board x 5.5 packs (22 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ Stainless Steel Outdoor Gate Handle Set with Drop Rod x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in Redwood boards and covered metal gate parts: up to 25 / 10 years.
- Covered Redwood board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock and outdoor handle set are outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
Is seven feet the width of each gate leaf?
Seven feet is the nominal width of the complete two-leaf assembly. Its drawing lists an 84¼-inch clear opening between the end posts. Use the engineering opening dimensions when laying out the gate.
Component Needs covers both leaves. Add adjoining fixed fence panels separately when planning the complete order.
Do both leaves need a combination lock?
The active leaf takes one lock. The other leaf uses the matching outdoor handle set with drop rod. Order both listed products separately from the frames, board packs and posts.
How do I include an adjoining Redwood fence panel?
Add the full double gate and each fixed fence section to a Redwood project quote. Count shared support locations once and keep the specified gate posts at those connections. The combined order can total compatible Redwood boards before rounding whole packs.
You Might Also Like

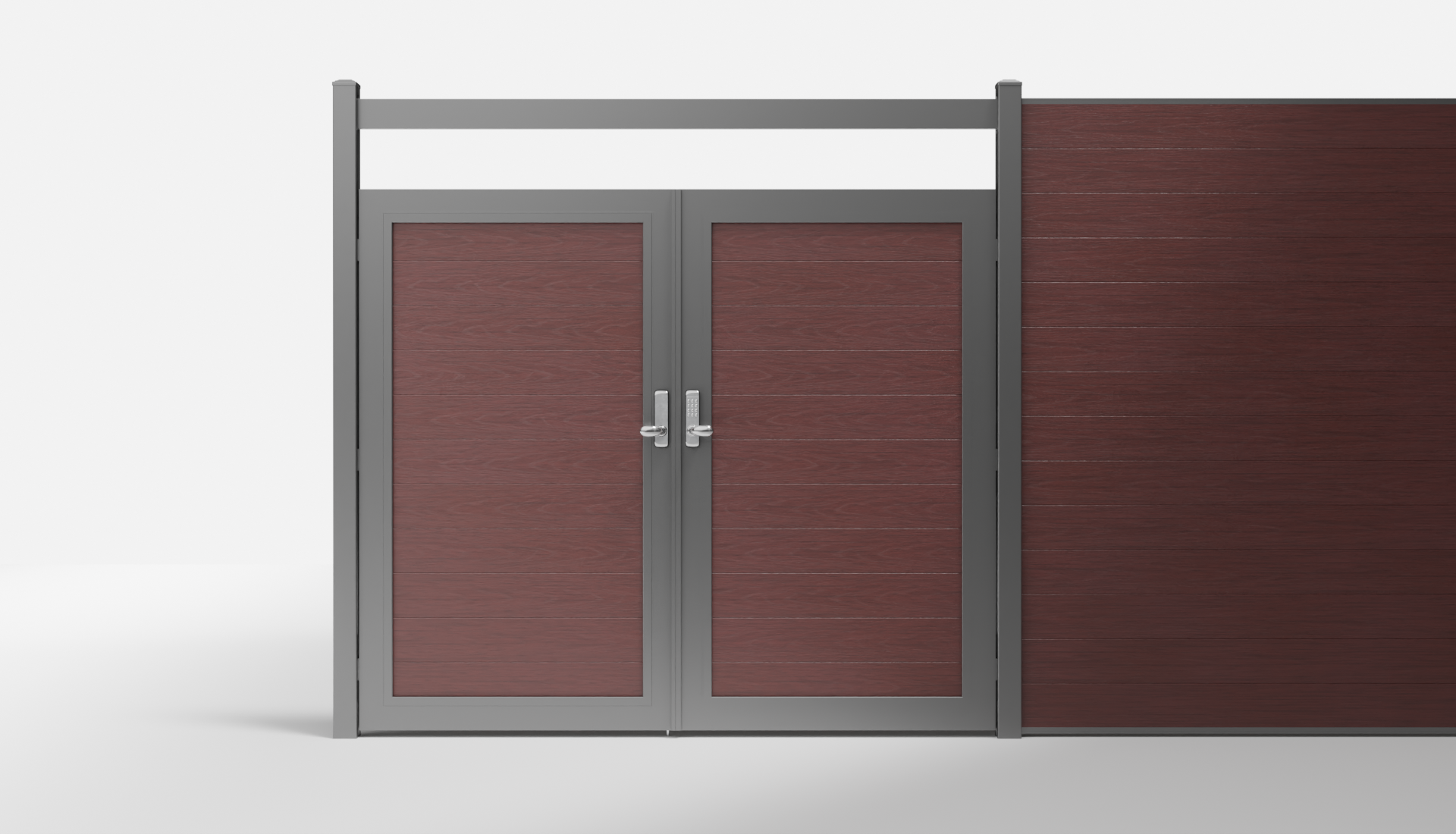

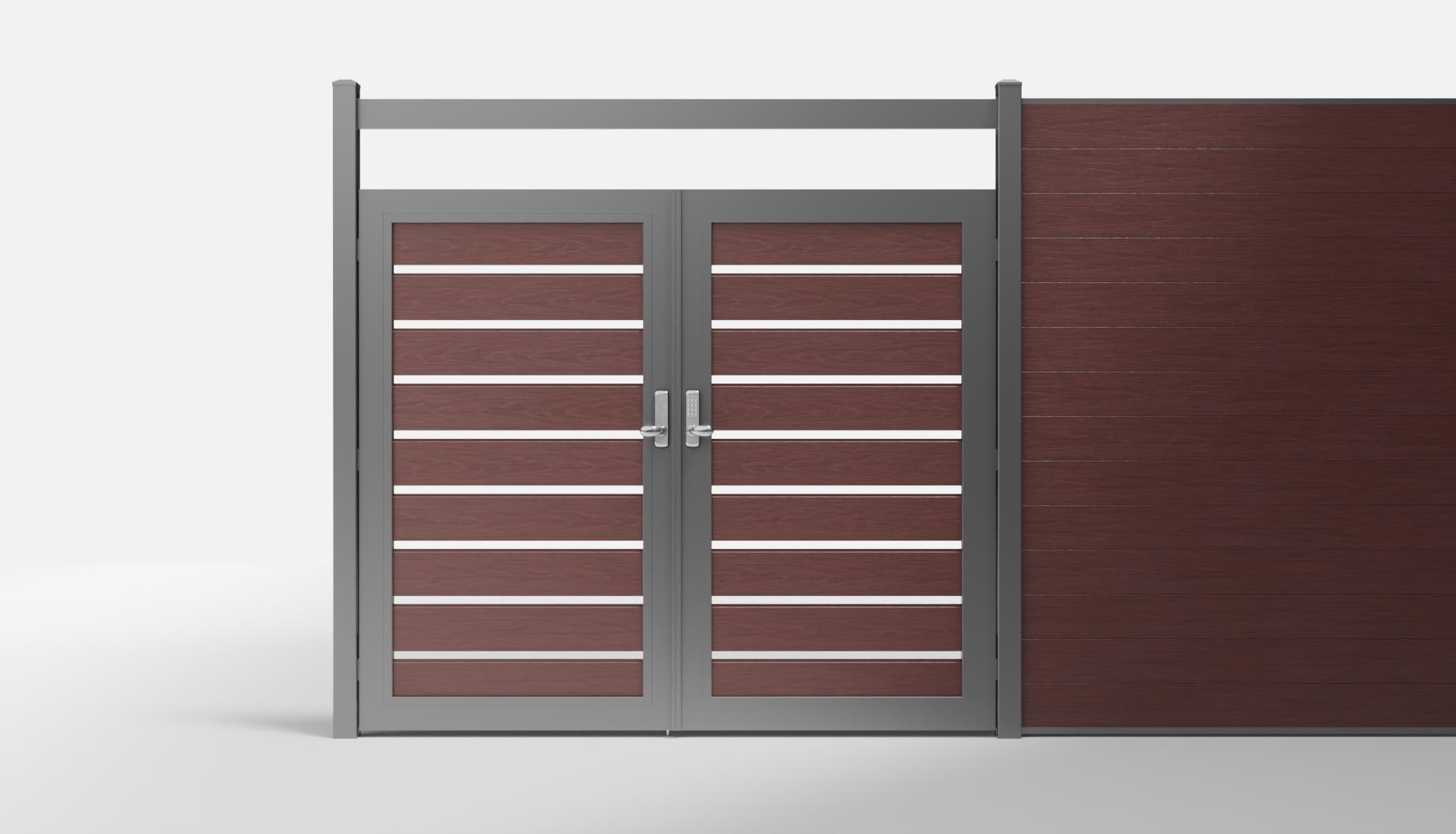

In-Ground
