Get a better sense of your project cost and materials.

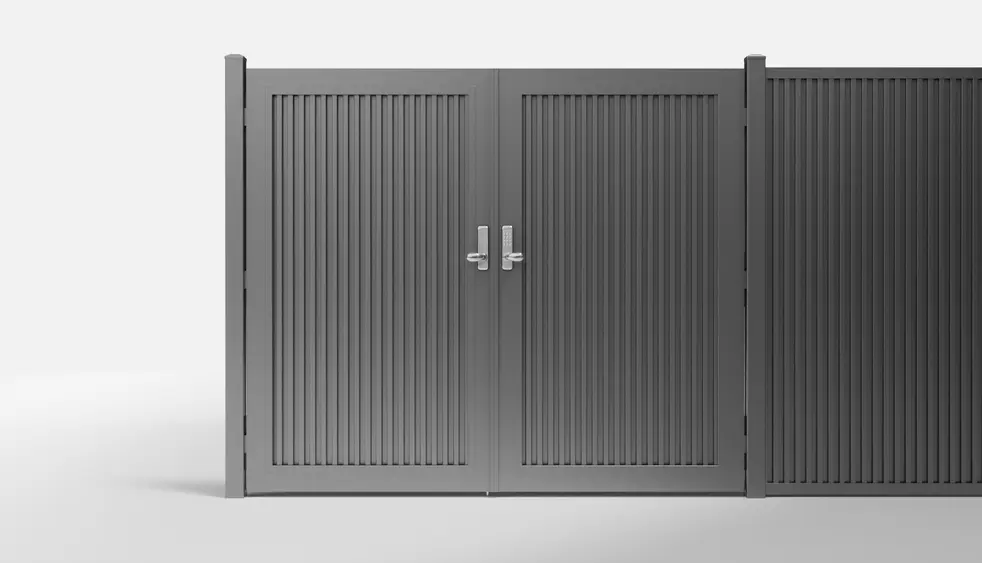

Private Black FireGuard Vertical Full Privacy Metal Double Gate — 7 ft W × 6 ft H - In-Ground

Style #:

FGV/DGFPPB8-84X72-IG

Eight upright FireGuard steel pieces fill this corrugated metal double gate, with four pieces in each leaf. Two welded aluminum frames create the nominal 7 × 6 ft double-gate format. Private Black is the selected metal finish.

The galvanized steel metal panels are powder coated to help resist corrosion and outdoor weather exposure. Aluminum forms the gate frames; galvanized steel forms the two In-Ground end posts.

Assemble both infill faces on site within the frames. Order the mechanical combination lock separately for the active leaf. The other leaf needs a separate outdoor handle set with drop rod. The corrugated metal fence gate options include other gate formats for comparison.

For a fence project with this double gate, plan one opening and two end supports. Keep the gate's specified post dimensions where it joins the fixed fence system.

  • Eight upright FireGuard steel pieces fill this corrugated metal double gate, with four pieces in each leaf. Two welded aluminum frames create the nominal 7 × 6 ft double-gate format. Private Black is the selected metal finish.

    The galvanized steel metal panels are powder coated to help resist corrosion and outdoor weather exposure. Aluminum forms the gate frames; galvanized steel forms the two In-Ground end posts.

    Assemble both infill faces on site within the frames. Order the mechanical combination lock separately for the active leaf. The other leaf needs a separate outdoor handle set with drop rod. The corrugated metal fence gate options include other gate formats for comparison.

    For a fence project with this double gate, plan one opening and two end supports. Keep the gate's specified post dimensions where it joins the fixed fence system.

  • Engineering Dimensions

    Nominal size (width × height): 7 × 6 ft.

    Mounting Type: In-Ground.

    Gate height: 72 inches.

    Gap below the gate: 1 inch.

    Post spacing (center to center): 87⅜ inches.

    Clear opening between posts: approximately 84¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 40 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 28½ / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    71 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Gate Cover Strip: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    FireGuard™ Fence Panel: powder-coated galvanized steel.

    Mechanical Combination Lock: 304 stainless steel.

    Outdoor Gate Handle Set with Drop Rod: 304 stainless steel.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    #8 x 3/4" ST Screw: 316 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Groove Cover: powder-coated aluminum.

    • Four vertical FireGuard pieces fill each leaf, making eight across the pair.
    • The powder-coated galvanized steel infill helps resist corrosion.
    • Two welded aluminum frames hold the corrugated full-privacy faces.
    • The active leaf's separate mechanical lock allows keyless entry without batteries.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in covered metal gate parts: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock and outdoor handle set are outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard FireGuard™ fire-resistant galvanized steel fence panel with interlocking vertical profile

Modern Yard FireGuard™ Fence Panel (3-Pack)

Modern Yard 71 x 42 aluminum gate frame on a white background

Modern Yard™ 71 Inches x 42 Inches Gate Frame

Modern Yard 304 stainless steel mechanical combination gate lock

Modern Yard™ Stainless Steel Mechanical Combination Lock

Modern Yard stainless steel outdoor gate handle set with drop rod

Modern Yard™ Stainless Steel Outdoor Gate Handle Set with Drop Rod

Imagine Your Future Fence

​Installation Guides

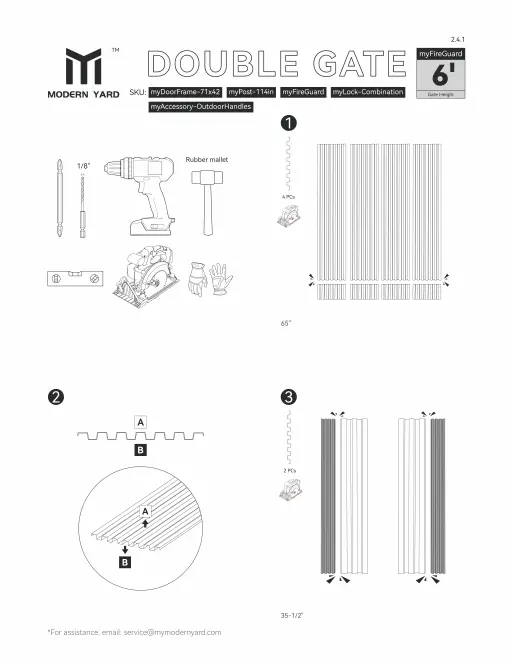

Installation Manual

​Technical Drawing


Frequently asked questions

Three 3-panel packs provide nine original panels for eight installed pieces, leaving one unused. Keep the four-piece requirement for each leaf. A larger order can combine compatible FireGuard panel stock before rounding the packs.

These metal gates use one post at each end of the opening. Both leaves need their own frame; the component list covers the pair. Compare the 3.5 × 6 ft corrugated single gate when choosing between one leaf and two.

The mechanical combination lock operates the active leaf. The inactive leaf uses the handle set with drop rod. Include both separate products in the double-gate material request, together with any adjoining metal fence sections.
