Upright Teak boards define the infill on this composite fence gate. Two aluminum frame sets receive a total of twelve boards, while one separate LINE crossbeam is fitted above the gate pair. This is the on-site assembly route, not a pair of prefilled LINE leaves.
Use this double fence gate at the specified junction with a 7 ft fence. The leaves keep their nominal 6 ft height, and the two-leaf nominal width is 7 ft. Posts use 114-inch stock with 86 inches above ground and 28 inches embedded. Purchase the frame, board and hardware entries against the whole entrance rather than repeating the total for each leaf. Browse composite double-gate options for the other approved infill layouts.
Upright Teak boards define the infill on this composite fence gate. Two aluminum frame sets receive a total of twelve boards, while one separate LINE crossbeam is fitted above the gate pair. This is the on-site assembly route, not a pair of prefilled LINE leaves.
Use this double fence gate at the specified junction with a 7 ft fence. The leaves keep their nominal 6 ft height, and the two-leaf nominal width is 7 ft. Posts use 114-inch stock with 86 inches above ground and 28 inches embedded. Purchase the frame, board and hardware entries against the whole entrance rather than repeating the total for each leaf. Browse composite double-gate options for the other approved infill layouts.

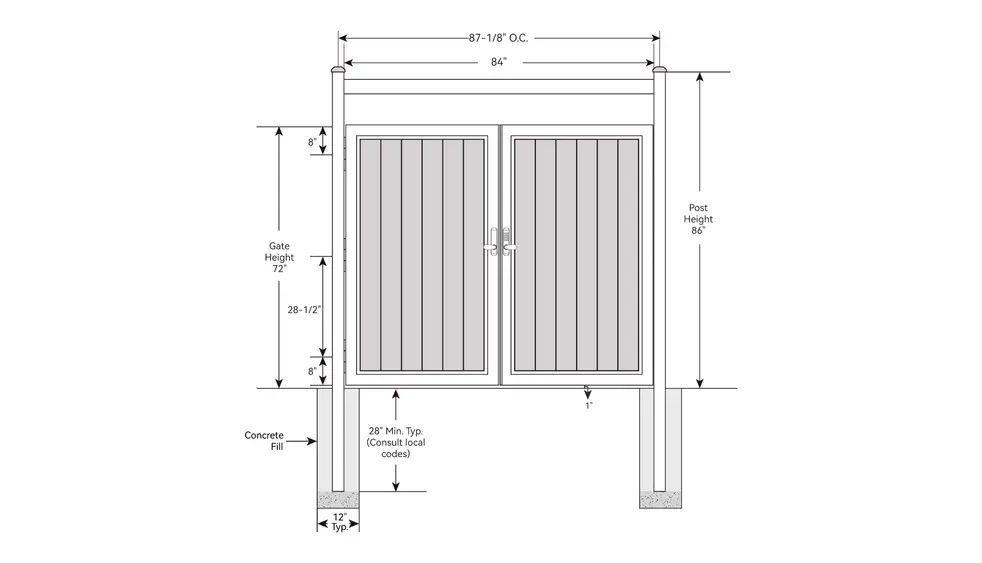

Engineering Dimensions
Nominal size (width × height): 7 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 87⅛ inches.
Clear opening between posts: approximately 84 inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Outdoor Gate Handle Set with Drop Rod: 304 stainless steel.
#8 x 3/4" ST Screw: 316 stainless steel.
- Twelve Teak composite boards provide vertical infill across the pair.
- Two separate aluminum frames are assembled with the boards on site.
- The LINE crossbeam is a single overhead component for this double gate.
- Nominal 6 ft leaves remain distinct from the adjacent 7 ft fence.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 2 sets
- Modern Yard™ Teak Fence Board x 3 packs (12 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ Stainless Steel Outdoor Gate Handle Set with Drop Rod x 1 set
- Modern Yard Line™ Fence Slat x 0.5 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock and outdoor handle set are outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Is the Teak infill already installed in the frame?
No. This Composite gate is assembled on site from frame sets and separately purchased boards. Its supply format differs from the preassembled LINE metal gate.
Must I double the Component Needs for two leaves?
The listed quantities already cover the complete double gate. Doubling them again would also double the frames, infill, beam stock and shared components unnecessarily.
How should I handle the beam's fractional pack allocation?
It allocates one stock LINE slat to one installed crossbeam. Final procurement uses complete sales packs and the project's usable stock rather than selling a special half-pack beam kit.
