This Redwood composite gate combines nine horizontal boards with one P01 decorative set. When comparing composite single gates, keep those infill items separate. The boards form the composite infill. The decorative panel has its own steel body and aluminum rails.
Use this Crossbeam version at a 7 ft fence connection. The gate leaf stays nominally 3.5 ft wide and 6 ft high. Cut one overhead beam from separate LINE stock. Its hardware share covers two Base Connectors, two L Connectors and eight fixing screws.
Compare fence panel materials and decorative options for the surrounding fence sections. Use this gate's nine-board P01 list for the entrance. The plain horizontal gate and the vertical decorative gate have different board quantities. Order the frame, infill, posts, lock and beam stock as the separate products in Component Needs.
This Redwood composite gate combines nine horizontal boards with one P01 decorative set. When comparing composite single gates, keep those infill items separate. The boards form the composite infill. The decorative panel has its own steel body and aluminum rails.
Use this Crossbeam version at a 7 ft fence connection. The gate leaf stays nominally 3.5 ft wide and 6 ft high. Cut one overhead beam from separate LINE stock. Its hardware share covers two Base Connectors, two L Connectors and eight fixing screws.
Compare fence panel materials and decorative options for the surrounding fence sections. Use this gate's nine-board P01 list for the entrance. The plain horizontal gate and the vertical decorative gate have different board quantities. Order the frame, infill, posts, lock and beam stock as the separate products in Component Needs.

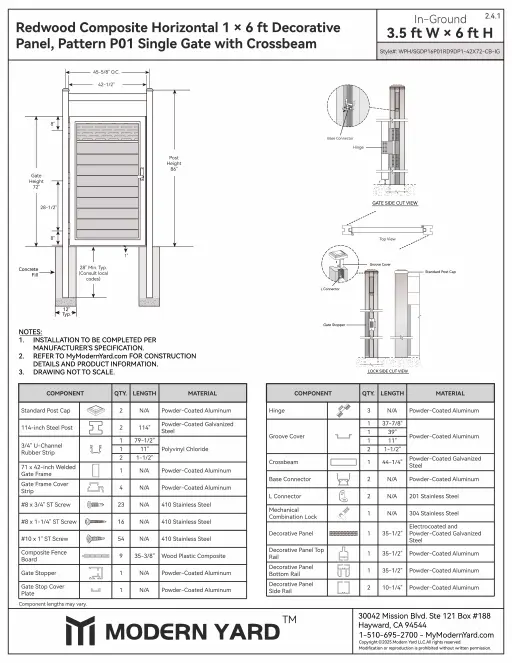

Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Decorative Panel: electrocoated and powder-coated galvanized steel.
Decorative Panel Top Rail: powder-coated aluminum.
Decorative Panel Bottom Rail: powder-coated aluminum.
Decorative Panel Side Rail: powder-coated aluminum.
- Nine horizontal Redwood boards and one P01 set form this gate leaf. The composite boards and decorative steel panel are different infill parts.
- The decorative panel body is electrocoated and powder-coated galvanized steel. Its top, bottom and side rails use powder-coated aluminum.
- Separate LINE stock provides one crossbeam above the leaf. The 0.25-pack stock share supplies that beam, rather than extra infill for the gate.
- Two full 114-inch steel posts use 86 inches above ground and 28 inches below. Follow this Crossbeam layout while keeping the moving leaf at its nominal 6 ft height.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Redwood Fence Board x 2.25 packs (9 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Redwood boards and covered metal gate parts: up to 25 / 10 years.
- Covered Redwood board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Does this crossbeam come attached to the Redwood decorative frame?
No. Buy separate LINE stock for the overhead beam. The gate frame, Redwood boards and P01 set are different purchase entries. The beam's half-set hardware share supplies two Base Connectors, two L Connectors and eight fixing screws. That kit does not replace the frame or the infill.
For this single-gate span, one LINE stock slat supplies two beam cuts. A sales pack has two slats, so this gate's stock share is 0.25 pack for one installed beam. Treat that share as a material-planning figure, not a smaller retail pack. Count usable stock and buy whole packs for the complete project.
Can I order the eleven-board Redwood full-privacy quantity?
Use nine Redwood boards and one P01 set for this decorative model. Eleven boards belong to the plain horizontal full-privacy leaf. The P01 list is a different infill recipe. With four boards in each sales pack, the listed nine-board allocation is 2.25 packs. That figure is the board share, not the number of decorative panels or crossbeams.
The P01 set has its own product entry. Its decorative body uses electrocoated and powder-coated galvanized steel, while the rails use powder-coated aluminum. The Redwood boards use wood-plastic composite. Keep these part names and materials separate when reading the list. The decorative set does not turn the board allocation into a complete gate kit.
Are two decorative sets needed because there are two gate posts?
No. One moving leaf uses one P01 set. The two steel posts are separate supports; they do not set the decorative panel count. Component Needs lists two full 114-inch posts for the complete gate. Each uses 86 inches above ground and 28 inches below for this 7 ft fence connection.
Check the 45⅝-inch post-center spacing and approximately 42½-inch clear opening in Specifications. Those layout figures are separate from the nominal 3.5 ft gate width. The moving leaf remains nominally 6 ft high. The overhead LINE beam belongs to the Crossbeam installation, rather than another decorative panel or a second moving leaf.
