Redwood Composite Horizontal 1 × 6 ft Decorative Panel, Pattern P01 Single Gate — 3.5 ft W × 6 ft H - In-Ground

Style #:

WPH/SGDP16P01RD9DP1-42X72-IG

This Redwood composite gate pairs nine boards with one P01 steel panel. The welded aluminum frame holds the wood-grain composite infill and metal insert. The gate leaf is nominally 3.5 ft wide and 6 ft high. Compare composite single gates by board color, layout and panel style.

The Redwood boards blend wood fibers with recycled plastic. They resist moisture, rot, insects and fading, with no routine painting, staining or sealing. The steel panel has its own powder coated aluminum rails. These composite gates pair wood-grain boards with a Private Black metal finish.

Order the Redwood packs, decorative kit, frame and galvanized steel posts separately. Fit the mixed infill into the frame on site. Add the specified mechanical combination lock for keyless operation without keys or batteries. Browse the composite fence gate collection for the other board and panel arrangements.

  • This Redwood composite gate pairs nine boards with one P01 steel panel. The welded aluminum frame holds the wood-grain composite infill and metal insert. The gate leaf is nominally 3.5 ft wide and 6 ft high. Compare composite single gates by board color, layout and panel style.

    The Redwood boards blend wood fibers with recycled plastic. They resist moisture, rot, insects and fading, with no routine painting, staining or sealing. The steel panel has its own powder coated aluminum rails. These composite gates pair wood-grain boards with a Private Black metal finish.

    Order the Redwood packs, decorative kit, frame and galvanized steel posts separately. Fit the mixed infill into the frame on site. Add the specified mechanical combination lock for keyless operation without keys or batteries. Browse the composite fence gate collection for the other board and panel arrangements.

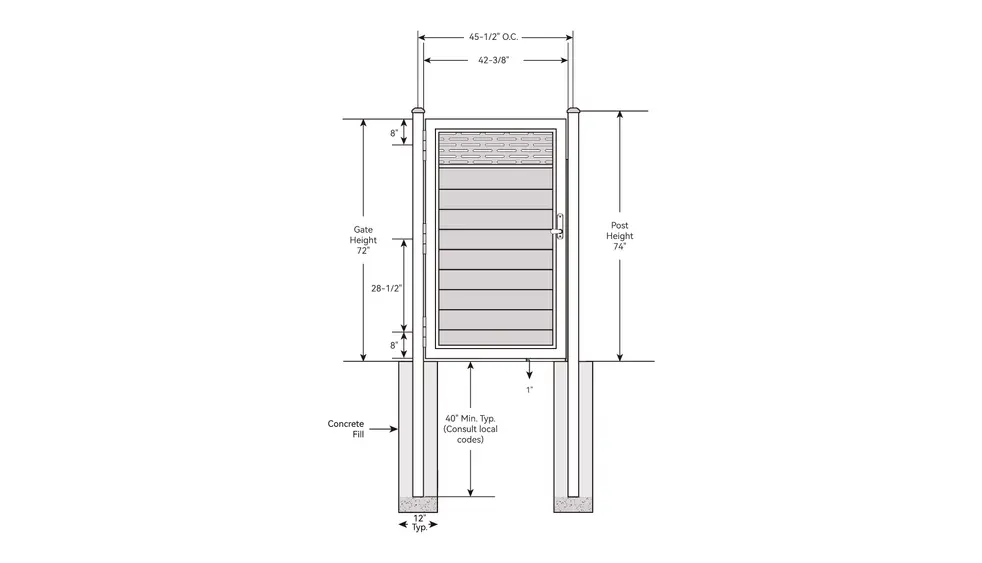

  • Engineering Dimensions

    Nominal size (width × height): 3.5 × 6 ft.

    Mounting Type: In-Ground.

    Gate height: 72 inches.

    Gap below the gate: 1 inch.

    Post spacing (center to center): 45½ inches.

    Clear opening between posts: approximately 42⅜ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 40 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 28½ / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    71 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Frame Cover Strip: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    Groove Cover: powder-coated aluminum.

    Mechanical Combination Lock: 304 stainless steel.

    Decorative Panel: electrocoated and powder-coated galvanized steel.

    Decorative Panel Top Rail: powder-coated aluminum.

    Decorative Panel Bottom Rail: powder-coated aluminum.

    Decorative Panel Side Rail: powder-coated aluminum.

    • Horizontal Redwood pieces bring a wood-grain face to the decorative layout.
    • One P01 steel panel adds the patterned metal detail.
    • Aluminum decorative rails and a welded frame support the mixed infill.
    • A separately purchased mechanical lock operates without electrical power.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Redwood boards and covered metal gate parts: up to 25 / 10 years.
    • Covered Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard Redwood composite fence board with wood-look finish on a white background

Modern Yard™ Redwood Fence Board (4-Pack)

Modern Yard 71 x 42 aluminum gate frame on a white background

Modern Yard™ 71 Inches x 42 Inches Gate Frame

Modern Yard 304 stainless steel mechanical combination gate lock

Modern Yard™ Stainless Steel Mechanical Combination Lock

Modern Yard 1 x 6 ft decorative fence panel with modern perforated metal design

Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel

Imagine Your Future Fence

​Installation Guides

Installation Manual

​Technical Drawing


Frequently asked questions

The gate uses nine boards, equal to 2.25 four-board packs. To buy whole packs for this gate alone, order three packs; three boards will remain. You also need one P01 panel kit, one frame set, two posts and the listed lock.

These are separate products, not one complete gate kit. For a larger fence-and-gate order, total the Redwood board quantities before rounding up to whole packs. Count any shared posts once. This keeps the order aligned with the actual layout.

The 1 × 6 ft kit name describes the source panel, not the width of the gate leaf. The finished single gate is nominally 3.5 ft wide and 6 ft high. Allow a clear opening of 42⅜ inches between posts, as shown in the drawing.

Use the gate drawing to set the posts. Post spacing is 45½ inches. Measure from the center of one post to the center of the other. This differs from the clear opening between the posts.

Wash the Redwood boards with mild soap and water. Use a soft cloth or brush. Avoid harsh chemicals and tools that can scratch the face. The boards need no routine painting, staining or sealing.
