Compare composite single gates by their infill recipe when planning a decorative entrance. This Charcoal composite fence gate combines nine horizontal boards with one P01 decorative panel. The P01 panel has a coated galvanized steel body. The separate LINE crossbeam sits above the leaf.
Use this Crossbeam layout with a 7 ft fence. The gate leaf stays nominally 3.5 ft wide and 6 ft high. An aluminum frame, two steel posts and the listed hardware complete its material plan.
Compare the metal and decorative fence panel options when choosing the surrounding design. Use nine boards and one P01 panel when planning composite gates with this layout. Sun and weather conditions can gradually change the composite boards' color.
Compare composite single gates by their infill recipe when planning a decorative entrance. This Charcoal composite fence gate combines nine horizontal boards with one P01 decorative panel. The P01 panel has a coated galvanized steel body. The separate LINE crossbeam sits above the leaf.
Use this Crossbeam layout with a 7 ft fence. The gate leaf stays nominally 3.5 ft wide and 6 ft high. An aluminum frame, two steel posts and the listed hardware complete its material plan.
Compare the metal and decorative fence panel options when choosing the surrounding design. Use nine boards and one P01 panel when planning composite gates with this layout. Sun and weather conditions can gradually change the composite boards' color.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Decorative Panel: electrocoated and powder-coated galvanized steel.
Decorative Panel Top Rail: powder-coated aluminum.
Decorative Panel Bottom Rail: powder-coated aluminum.
Decorative Panel Side Rail: powder-coated aluminum.
- Nine horizontal Charcoal boards are paired with one P01 decorative module.
- The decorative panel has an electrocoated and powder-coated galvanized steel body.
- An independent LINE crossbeam forms the overhead member.
- The selected installation connects a 6 ft gate leaf with a 7 ft fence.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Charcoal Fence Board x 2.25 packs (9 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal boards and covered metal gate parts: up to 25 / 10 years.
- Covered Charcoal board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Is the decorative panel also the crossbeam?
No. P01 is part of the gate leaf. The Crossbeam version adds a separate overhead LINE member and its associated post layout for the 7 ft fence connection.
Does this leaf still use eleven Charcoal boards?
No. The recorded infill is nine Charcoal boards plus one P01 decorative panel. The plain horizontal full-privacy leaf uses a different board quantity.
How many decorative panel sets are required for one single gate?
One set. The source also lists the board stock, frame, posts, lock, LINE stock and crossbeam fixing kit separately.
You Might Also Like
In-Ground
Without Crossbeam
Charcoal Composite Horizontal 1 × 6 ft Decorative Panel, Pattern P01 Single Gate — 3.5 ft W × 6 ft H
Style #: WPH/SGDP16P01CH9DP1-42X72-IG
In-Ground
With Crossbeam

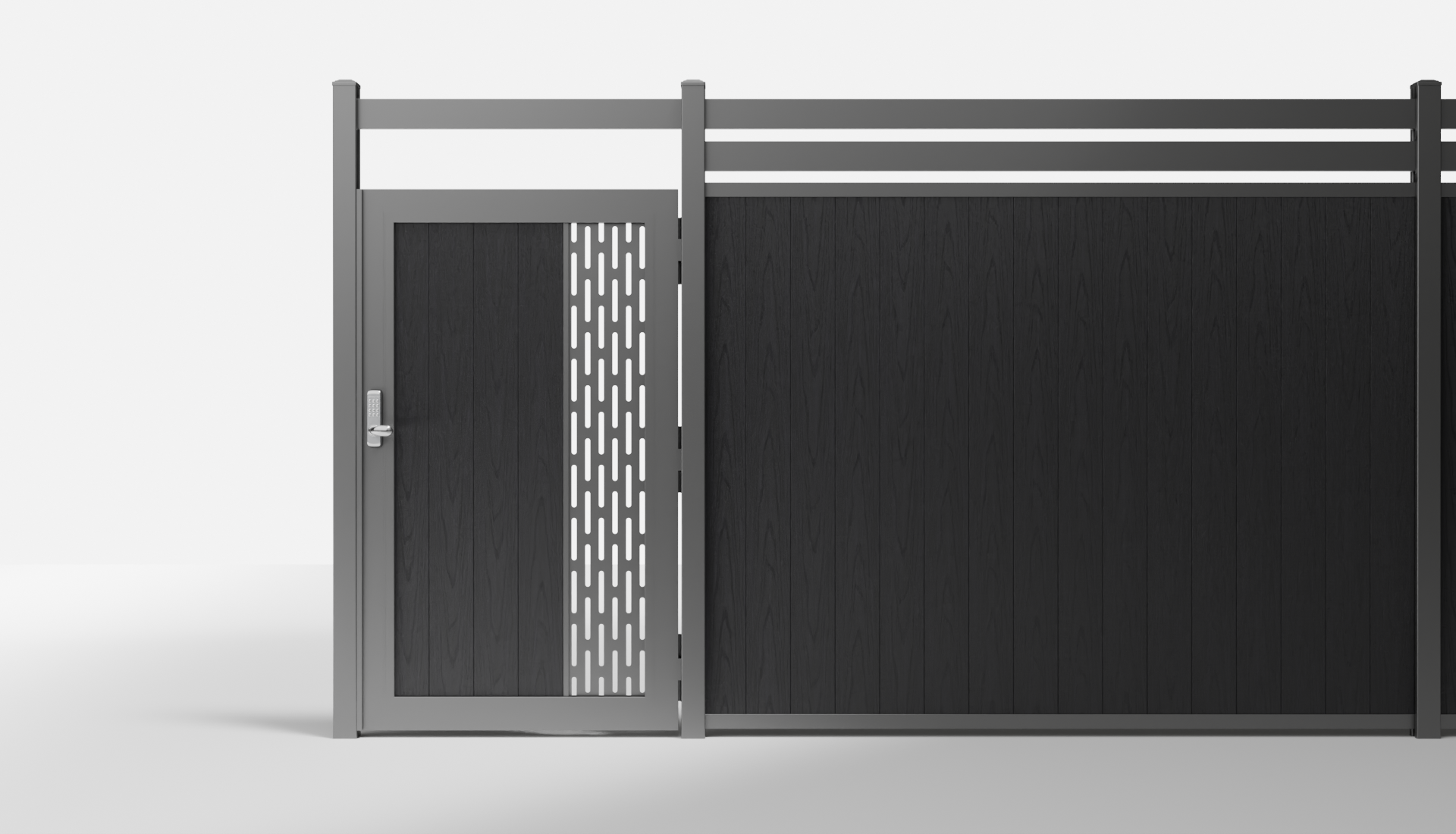

Style #: WPV/SGDP16P01CH4DP1-42X72-CB-IG
In-Ground
With Crossbeam

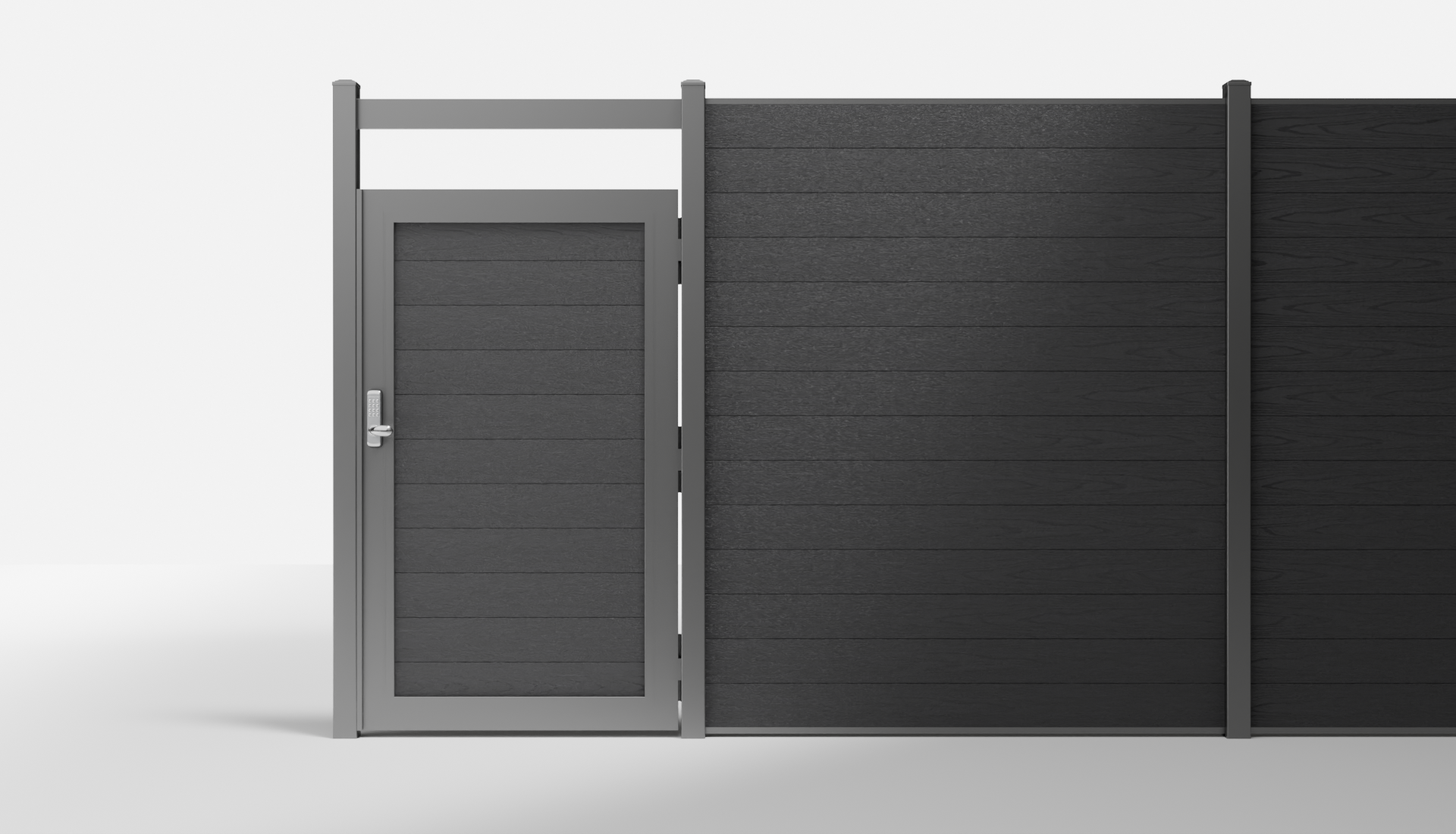

Style #: WPH/SGFPCH11-42X72-CB-IG
In-Ground
With Crossbeam
Style #: WPH/SGG10CH10-42X72-CB-IG
In-Ground
Without Crossbeam
Style #: WPV/SGDP16P01CH4DP1-42X72-IG
In-Ground
Without Crossbeam

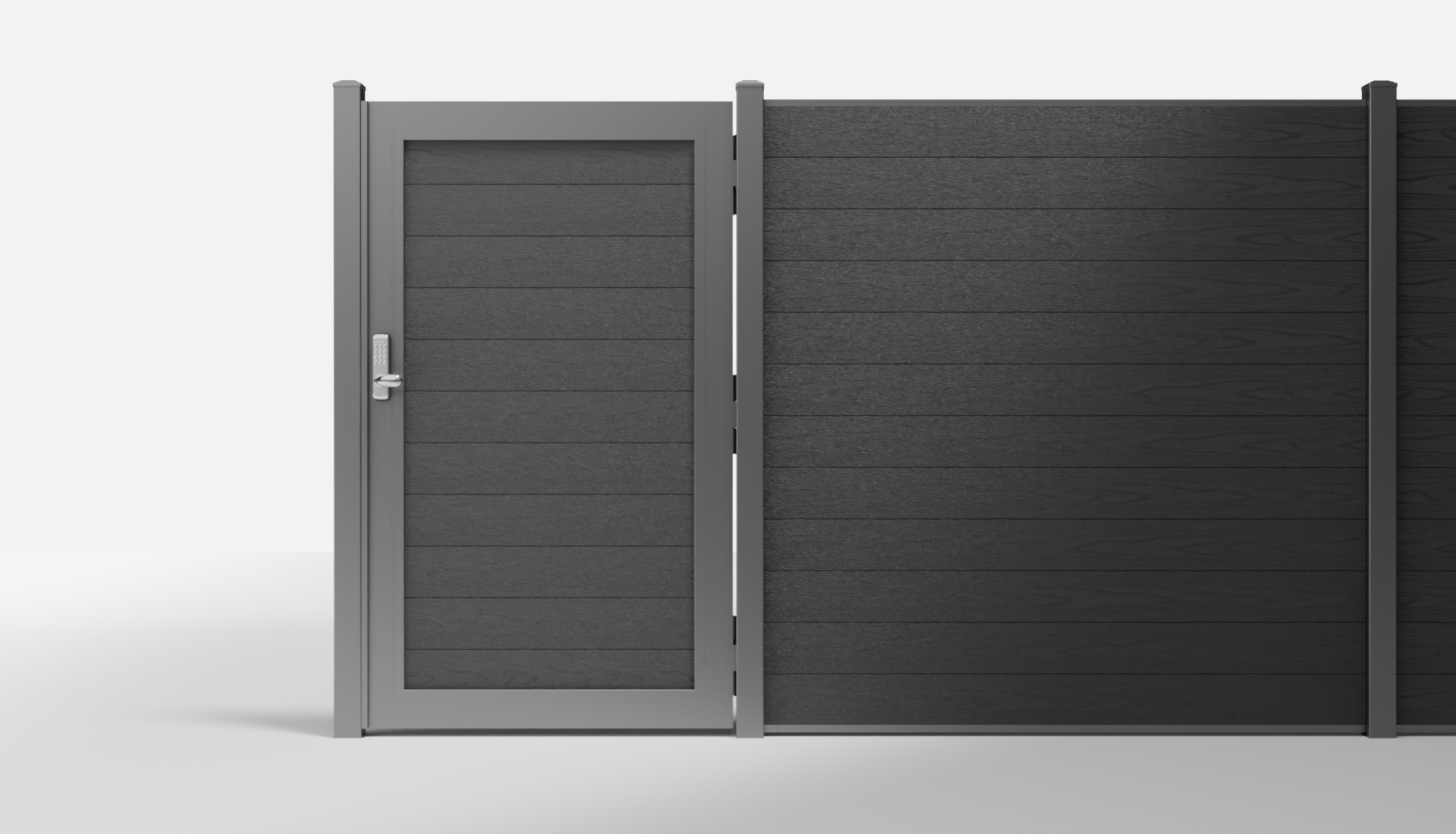

Style #: WPH/SGFPCH11-42X72-IG
