This Teak composite fence gate pairs horizontal boards with a P01 decorative steel module. This version has nine Teak boards and one P01 module, rather than the board-only recipe. Its nominal dimensions remain 3.5 ft wide by 6 ft high.
The crossbeam is an additional LINE steel member for the configuration specified beside a 7 ft fence. It is ordered separately from the aluminum gate frame and does not replace the P01 panel within the leaf. Review composite fence gates to compare the available directions and infill choices. Select the decorative model's exact materials plan, including the two steel posts, board share and single P01 set, when preparing the project quote.
This Teak composite fence gate pairs horizontal boards with a P01 decorative steel module. This version has nine Teak boards and one P01 module, rather than the board-only recipe. Its nominal dimensions remain 3.5 ft wide by 6 ft high.
The crossbeam is an additional LINE steel member for the configuration specified beside a 7 ft fence. It is ordered separately from the aluminum gate frame and does not replace the P01 panel within the leaf. Review composite fence gates to compare the available directions and infill choices. Select the decorative model's exact materials plan, including the two steel posts, board share and single P01 set, when preparing the project quote.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Decorative Panel: electrocoated and powder-coated galvanized steel.
Decorative Panel Top Rail: powder-coated aluminum.
Decorative Panel Bottom Rail: powder-coated aluminum.
Decorative Panel Side Rail: powder-coated aluminum.
- The leaf combines nine horizontal Teak boards with one P01 module.
- P01 steel infill and the LINE overhead member are separately identified.
- The gate frame is supplied as powder-coated aluminum.
- The dedicated Crossbeam layout serves the specified 7 ft fence connection.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Teak Fence Board x 2.25 packs (9 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Does choosing P01 remove the need for separate crossbeam stock?
No. P01 belongs inside the leaf. This separate Crossbeam configuration still uses LINE stock above the opening and its own post and fixing details.
How many Teak boards are needed in this decorative single gate?
Nine installed boards. The source allocates 2.25 four-board packs as the material share, separately from the P01 decorative set.
Is the decorative panel described as composite?
No. The Teak boards are composite. The P01 panel body is electrocoated and powder-coated galvanized steel, with powder-coated aluminum edging.
You Might Also Like
In-Ground
Without Crossbeam
Style #: WPH/SGDP16P01TK9DP1-42X72-IG
In-Ground
With Crossbeam
Style #: WPV/SGDP16P01TK4DP1-42X72-CB-IG
In-Ground
With Crossbeam

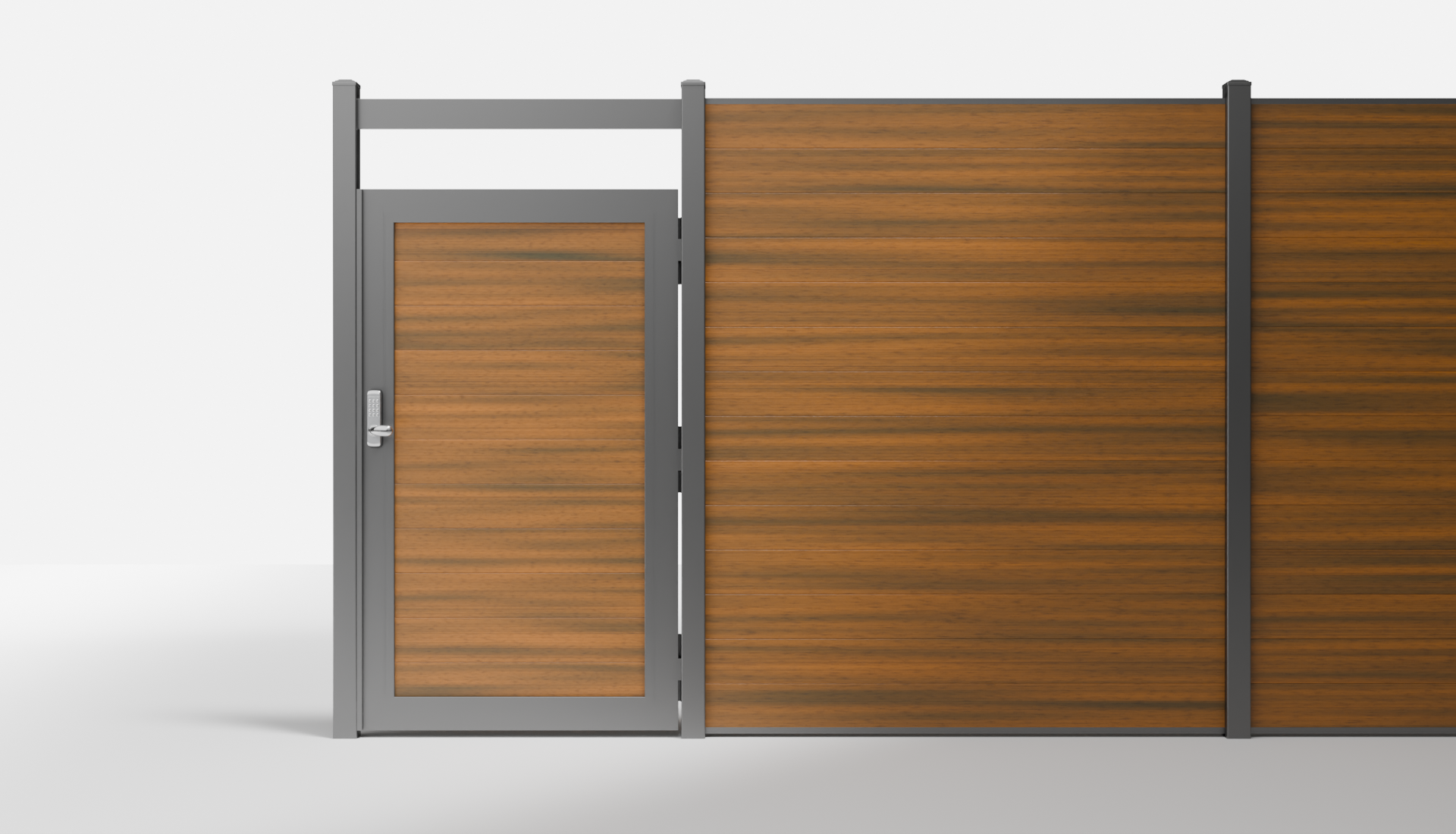

Style #: WPH/SGFPTK11-42X72-CB-IG
In-Ground
With Crossbeam
Style #: WPH/SGG10TK10-42X72-CB-IG
In-Ground
Without Crossbeam
Style #: WPV/SGDP16P01TK4DP1-42X72-IG
In-Ground
Without Crossbeam

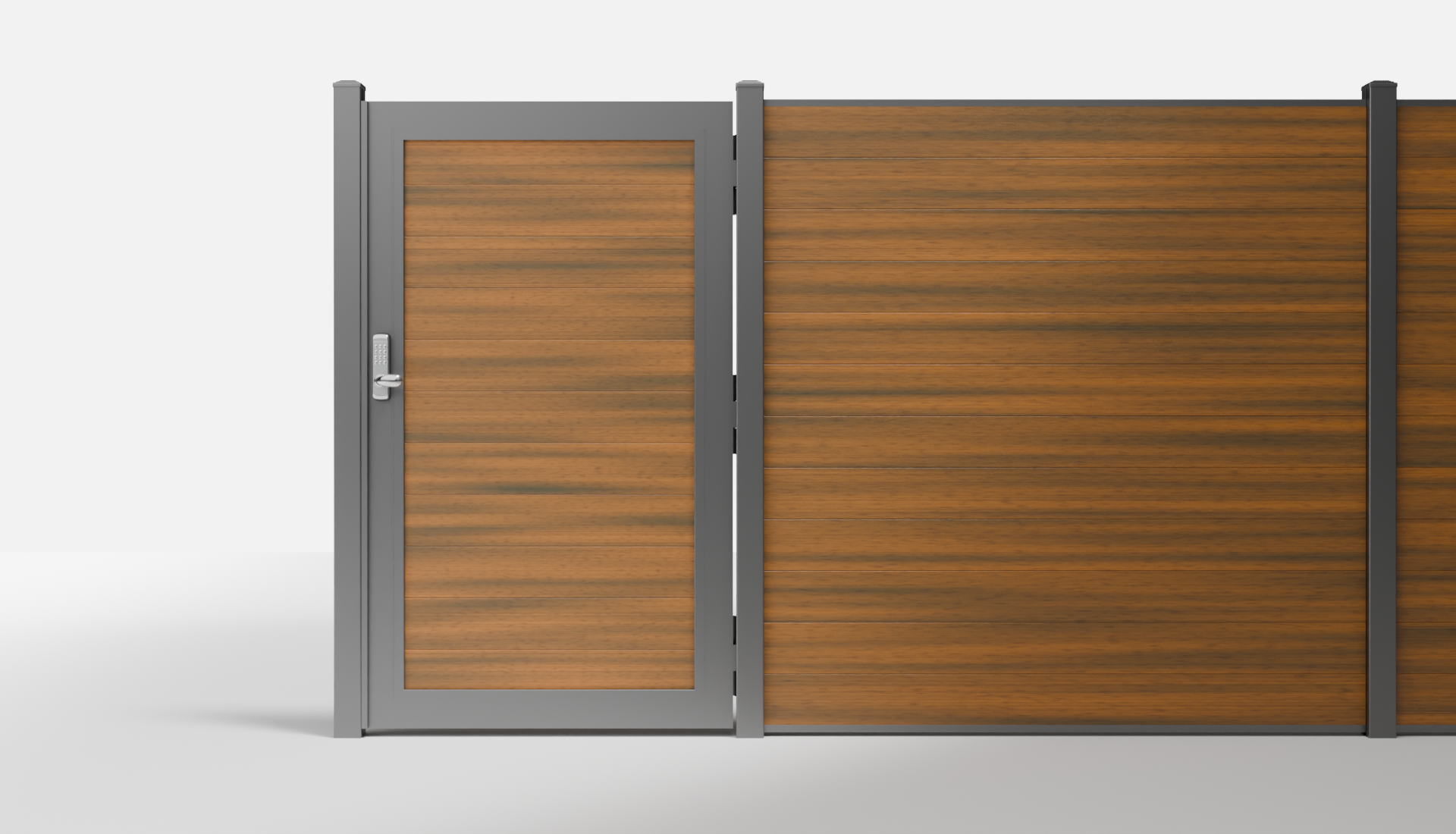

Style #: WPH/SGFPTK11-42X72-IG
