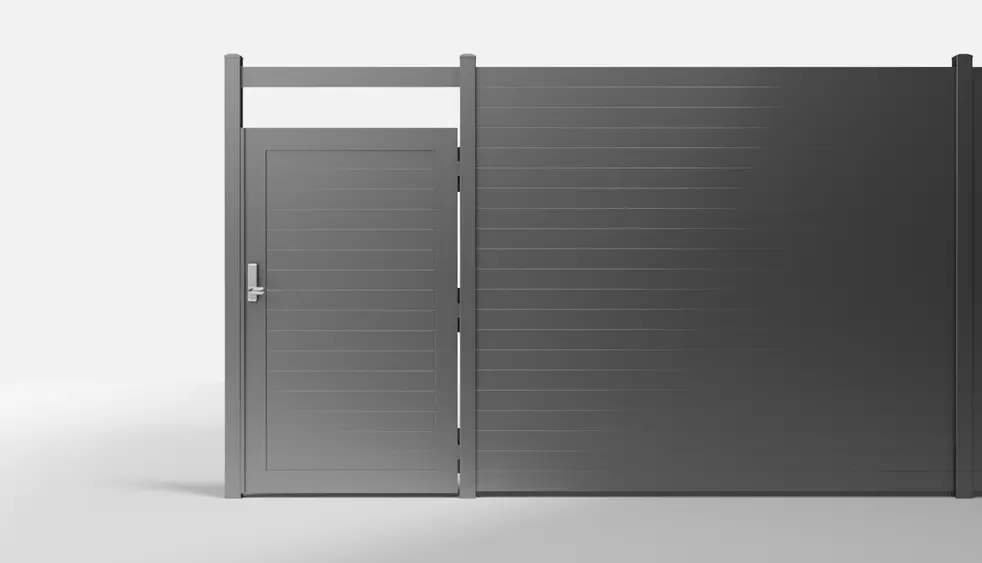

Private Black LINE Horizontal Full Privacy Metal Single Gate with Crossbeam — 3.5 ft W × 6 ft H - In-Ground

GATE COLLECTIONS

Private Black LINE Horizontal Full Privacy Metal Single Gate with Crossbeam — 3.5 ft W × 6 ft H - In-Ground

Style #:

LNH/SGFPPB-42X72-CB-IG

Engineering Dimensions

Nominal size (width × height): 3.5 × 6 ft.

Mounting Type: In-Ground.

Gate height: 72 inches.

Gap below the gate: 1 inch.

Post spacing (center to center): 45⅝ inches.

Clear opening between posts: approximately 42½ inches.

Post height above ground: 86 inches, excluding the post cap.

Crossbeam top: 2 inches below the post top.

Post depth below ground: 28 inches.

Concrete footing width: 12 inches min.

Hinge positions: 8 / 28½ / 8 inches.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

114-inch Steel Post: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

71 x 42-inch Pre-Assembled Privacy Gate: powder-coated aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

#10 x 1" ST Screw: 410 stainless steel.

Gate Stopper: powder-coated aluminum.

Gate Stop Cover Plate: powder-coated aluminum.

Hinge: powder-coated aluminum.

Crossbeam: powder-coated galvanized steel.

Base Connector: powder-coated aluminum.

L Connector: 201 stainless steel.

Mechanical Combination Lock: 304 stainless steel.

Groove Cover: powder-coated aluminum.

This aluminum privacy gate has one pre-assembled welded leaf. The Private Black metal fence gate has its infill in place.

Add one beam above the leaf for a 7 ft fence connection. Buy its LINE steel stock separately. Compare metal gate options for other layouts.

Limited warranty periods (residential / commercial use):

Structural defects in covered metal gate parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

This aluminum privacy gate has one pre-assembled welded leaf. The Private Black metal fence gate has its infill in place.
Add one beam above the leaf for a 7 ft fence connection. Buy its LINE steel stock separately. Compare metal gate options for other layouts.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Pre-Assembled Privacy Gate: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Groove Cover: powder-coated aluminum.
A welded aluminum leaf comes with its infill in place.
Separate LINE steel stock supplies one overhead beam.
Two full 114-inch posts serve the gate.
The 6 ft leaf joins a 7 ft fence.
Modern Yard™ 114-inch Steel Post x 2 PCs
Modern Yard™ 71-inch x 42-inch Pre-Assembled Privacy Gate x 1 set
Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
Structural defects in covered metal gate parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
