Three Charcoal pieces and eight Teak pieces form this Charcoal and Teak composite single gate. The 6 ft horizontal composite gate uses eleven joined boards inside a Private Black aluminum frame, with Teak providing the larger color share.
Assemble this nominal 3.5 × 6 ft composite fence gate on site. Its board count follows the gate frame, not a matching fence panel.
A separately listed mechanical combination lock provides keyless access without batteries or electrical power. The gate uses two In-Ground posts, with its frame and infill ordered as separate products. Compare other formats in the composite gate collection.
Three Charcoal pieces and eight Teak pieces form this Charcoal and Teak composite single gate. The 6 ft horizontal composite gate uses eleven joined boards inside a Private Black aluminum frame, with Teak providing the larger color share.
Assemble this nominal 3.5 × 6 ft composite fence gate on site. Its board count follows the gate frame, not a matching fence panel.
A separately listed mechanical combination lock provides keyless access without batteries or electrical power. The gate uses two In-Ground posts, with its frame and infill ordered as separate products. Compare other formats in the composite gate collection.

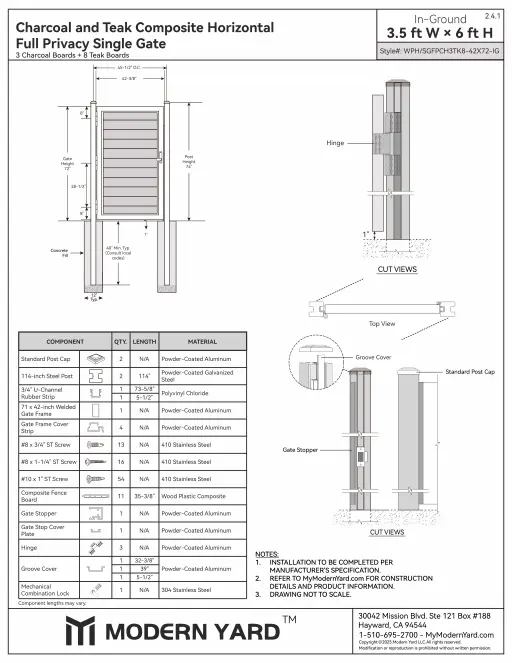

Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45½ inches.
Clear opening between posts: approximately 42⅜ inches.
Post height above ground: 74 inches, excluding the post cap.
Post depth below ground: 40 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Mechanical Combination Lock: 304 stainless steel.
- The gate infill contains three Charcoal pieces plus eight Teak pieces.
- Eleven joined horizontal boards produce the closed composite board area.
- The tall aluminum frame carries the selected two-color infill.
- A single specified combination lock accompanies the two-post gate arrangement.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Charcoal Fence Board x 0.75 pack (3 boards)
- Modern Yard™ Teak Fence Board x 2 packs (8 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal and Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Charcoal and Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
Why does this gate use eleven boards rather than twelve?
The gate frame fits eleven pieces. A 6 ft fence uses different infill dimensions; its board count does not apply automatically.
How much Teak and Charcoal does the gate need?
For one gate, one four-board Charcoal pack and two Teak packs supply three Charcoal and eight Teak boards. One Charcoal board remains spare; order the frame and posts separately.
How deep are the posts for this mixed-color gate?
The drawing specifies 40 inches below ground, with 74 inches of post above ground. The posts are In-Ground; the shortened low-fence post exception is not used.
