One Charcoal board joins five Teak boards in this Charcoal and Teak composite gate. The two-color composite single gate has six horizontal pieces with joined edges, framed in Private Black aluminum at a nominal 3.5 × 3.5 ft size.
Buy one four-board Charcoal pack and two Teak packs for this gate alone. They supply one Charcoal and five Teak boards, with three spare boards of each color.
Assemble this composite fence gate on site with its frame, boards and two In-Ground posts. The composite gate overview helps compare the available constructions; this page supplies the particular six-board color allocation for the low gate.
One Charcoal board joins five Teak boards in this Charcoal and Teak composite gate. The two-color composite single gate has six horizontal pieces with joined edges, framed in Private Black aluminum at a nominal 3.5 × 3.5 ft size.
Buy one four-board Charcoal pack and two Teak packs for this gate alone. They supply one Charcoal and five Teak boards, with three spare boards of each color.
Assemble this composite fence gate on site with its frame, boards and two In-Ground posts. The composite gate overview helps compare the available constructions; this page supplies the particular six-board color allocation for the low gate.

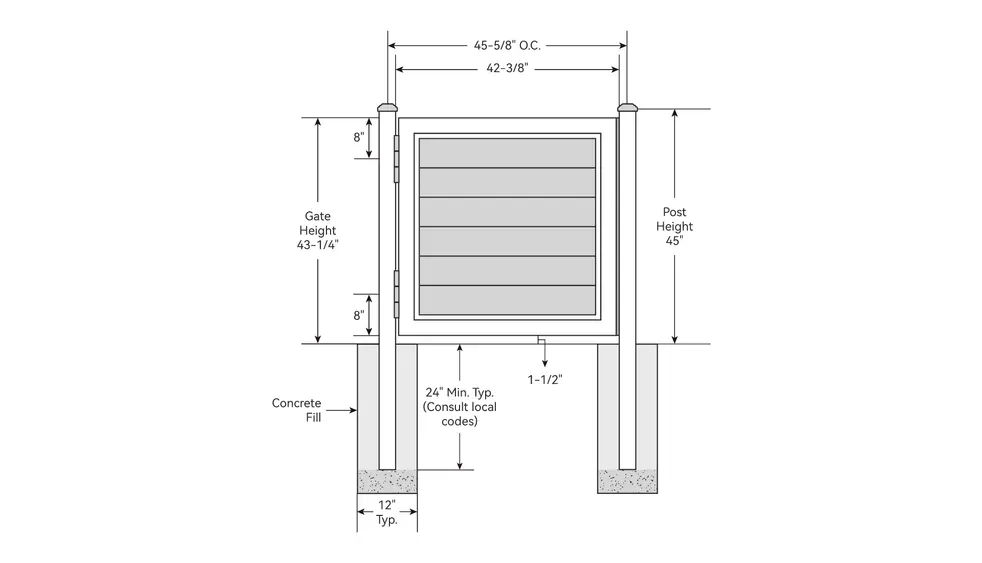

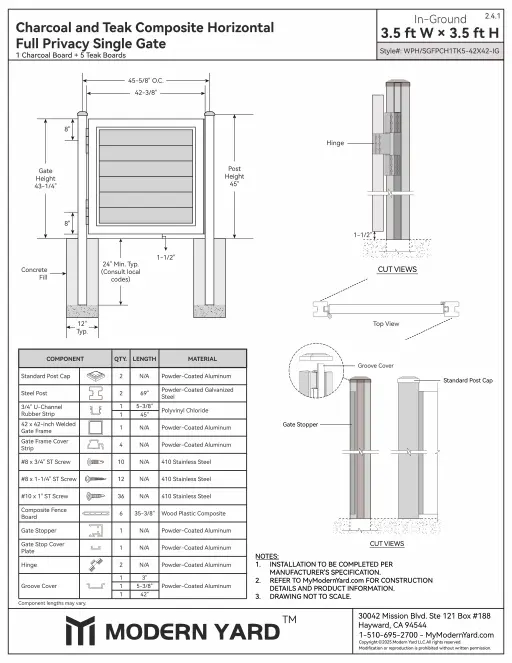

Engineering Dimensions
Nominal size (width × height): 3.5 × 3.5 ft.
Mounting Type: In-Ground.
Gate height: 43¼ inches.
Gap below the gate: 1½ inches.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42⅜ inches.
Post height above ground: 45 inches, excluding the post cap.
Post depth below ground: 24 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
42 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
- Five Teak pieces and one Charcoal piece provide the gate’s two-color infill.
- The six composite boards are fitted horizontally with joined edges.
- One small aluminum gate frame is used for the single leaf.
- Two buried gate posts retain the specified 24-inch embedment.
- Modern Yard™ 98-inch Steel Post x 2 PCs
- Modern Yard™ 42-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Charcoal Fence Board x 0.25 pack (1 board)
- Modern Yard™ Teak Fence Board x 1.25 packs (5 boards)
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal and Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Charcoal and Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
Does this gate use the same boards as a matching fence?
It uses the same named Charcoal and Teak board products, but the gate has its own six-piece quantity and frame-specific processing. A fence panel’s dimensions and hardware do not replace the gate requirements.
Can I swap the Charcoal and Teak quantities?
This item uses one Charcoal board and five Teak boards. Swapping those quantities changes the material configuration, not just the placement.
Is the frame included in the board quantity?
No. The six pieces describe composite infill only. The aluminum gate frame and two required posts are separate products in Component Needs.
