Four upright metal fence panels fill this Private Black corrugated metal gate. The aluminum frame is powder coated. The gate is nominally 3.5 × 6 ft. Its frame model is 71-Inch x 42-Inch.
Buy steel panels, the aluminum frame and galvanized steel posts separately. Order the mechanical combination lock separately for this fence gate. Plan the gate opening within your full fence project. Gate options within the corrugated metal fence gate family include single- and double-leaf formats.
Four upright metal fence panels fill this Private Black corrugated metal gate. The aluminum frame is powder coated. The gate is nominally 3.5 × 6 ft. Its frame model is 71-Inch x 42-Inch.
Buy steel panels, the aluminum frame and galvanized steel posts separately. Order the mechanical combination lock separately for this fence gate. Plan the gate opening within your full fence project. Gate options within the corrugated metal fence gate family include single- and double-leaf formats.

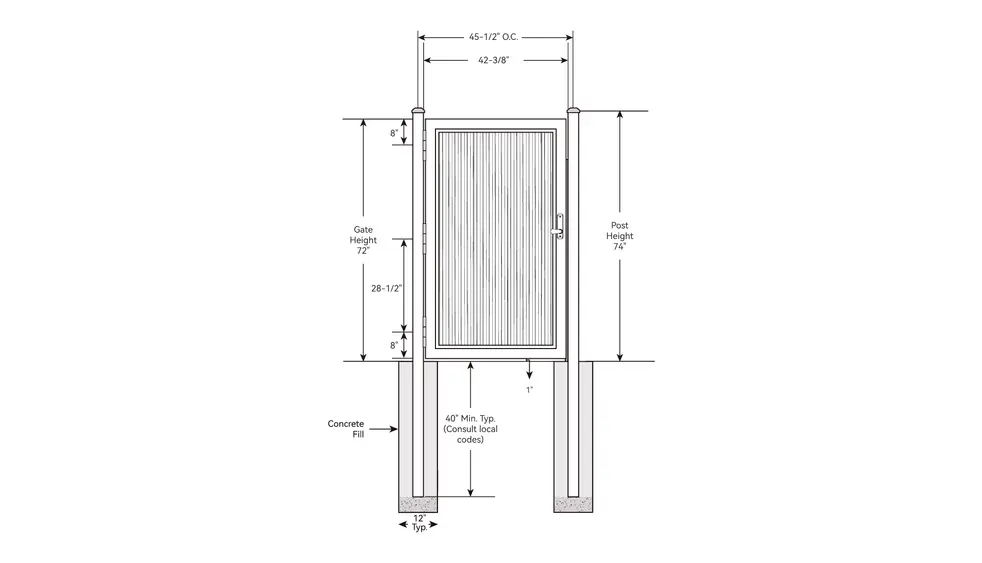

Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45½ inches.
Clear opening between posts: approximately 42⅜ inches.
Post height above ground: 74 inches, excluding the post cap.
Post depth below ground: 40 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
FireGuard™ Fence Panel: powder-coated galvanized steel.
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Mechanical Combination Lock: 304 stainless steel.
- Vertical corrugated galvanized-steel panels form the closed infill.
- Assemble the gate on site using separately purchased steel panels and an aluminum frame.
- Three hinges come with the aluminum frame for this single gate.
- A separately selected mechanical combination lock provides keyless entry without batteries or electrical power.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard FireGuard™ Fence Panel (3-Pack) x 4/3 packs (4 panels)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
Limited warranty periods (residential / commercial use):
- Structural defects in covered metal gate parts: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
How many panel packs cover one single gate?
Install four panel pieces in this leaf. Each retail pack contains three panels. Buy two packs for the single gate alone. The 7 × 6 ft corrugated double gate is wider. It uses two aluminum frames and eight steel panel pieces.
Is the frame made from the same steel as the panels?
The frame is powder-coated aluminum. The panels and posts are powder-coated galvanized steel. Use the parts list to check each material when ordering.
Is a lock supplied just by purchasing the frame?
Purchase the mechanical combination lock separately. Include it with the frame in your corrugated gate material list.
