Get a better sense of your project cost and materials.


Charcoal Composite Vertical Full Privacy Single Gate — 3.5 ft W × 6 ft H - In-Ground

Style #:

WPV/SGFPCH6-42X72-IG

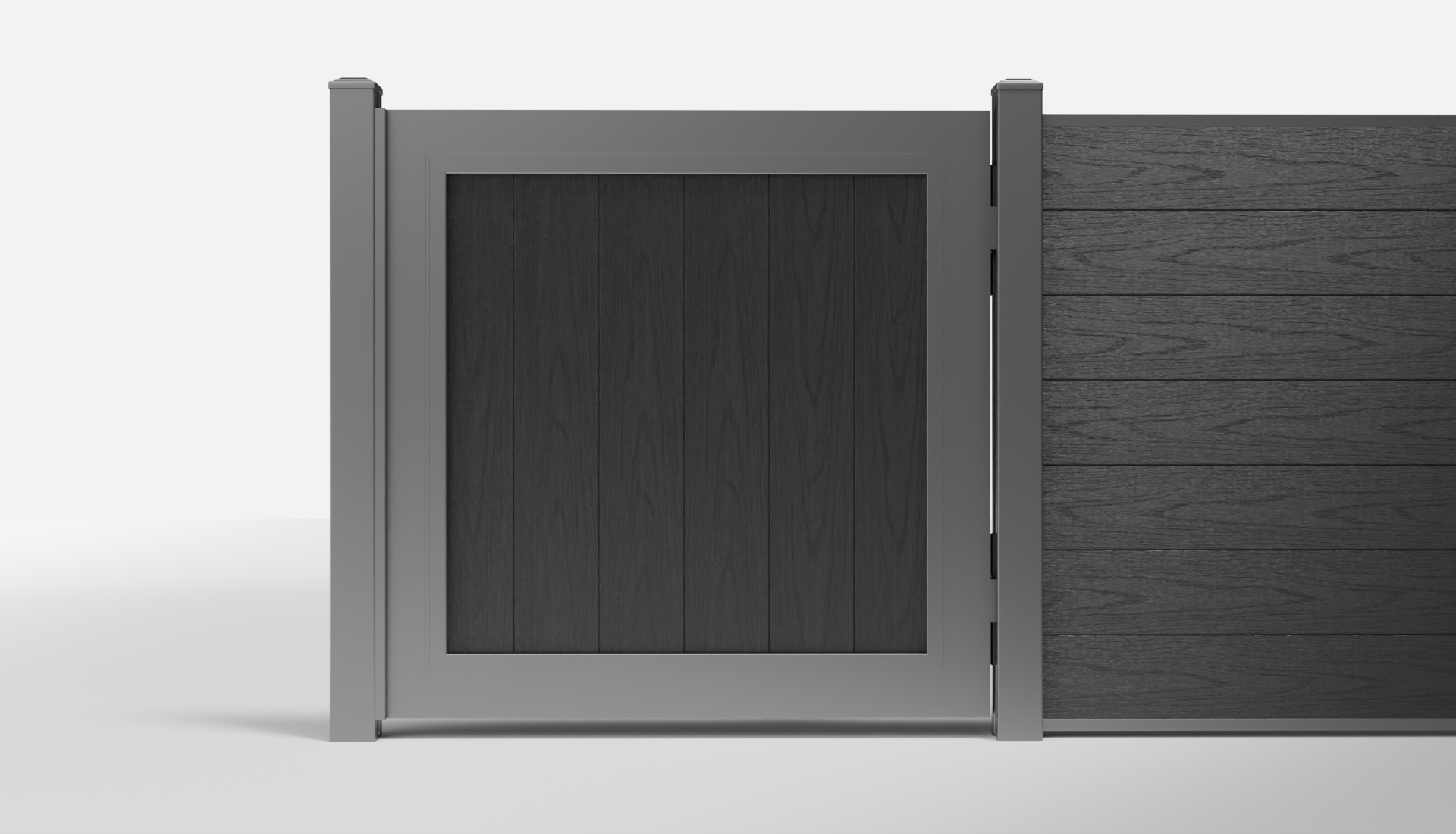

This composite privacy gate pairs six upright Charcoal boards with a Private Black welded aluminum frame. The single leaf is nominally 3.5 × 6 ft, supported by two galvanized steel posts.

Charcoal boards resist moisture, termites and decay. Their UV protection helps reduce fading from sun exposure and supports color retention over the long term. The boards need no routine painting, staining or sealing.

Assemble the composite fence gate on site. Two four-board packs cover six originals and leave two unused. Order the frame, 114-inch posts and mechanical combination lock separately. Compare other board directions in the composite fence gates collection.

  • This composite privacy gate pairs six upright Charcoal boards with a Private Black welded aluminum frame. The single leaf is nominally 3.5 × 6 ft, supported by two galvanized steel posts.

    Charcoal boards resist moisture, termites and decay. Their UV protection helps reduce fading from sun exposure and supports color retention over the long term. The boards need no routine painting, staining or sealing.

    Assemble the composite fence gate on site. Two four-board packs cover six originals and leave two unused. Order the frame, 114-inch posts and mechanical combination lock separately. Compare other board directions in the composite fence gates collection.

  • Engineering Dimensions

    Nominal size (width × height): 3.5 × 6 ft.

    Mounting Type: In-Ground.

    Gate height: 72 inches.

    Gap below the gate: 1 inch.

    Post spacing (center to center): 45½ inches.

    Clear opening between posts: approximately 42⅜ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 40 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 28½ / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    71 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Frame Cover Strip: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    Groove Cover: powder-coated aluminum.

    Mechanical Combination Lock: 304 stainless steel.

    • Six Charcoal pieces join into the upright full-privacy gate face.
    • A UV-protected wrap covers the wood-plastic composite core.
    • The Charcoal surfaces resist fading, moisture, termites and decay.
    • The separate combination lock provides keyless entry without power or batteries.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal gate parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard 71 x 42 aluminum gate frame on a white background

Modern Yard™ 71 Inches x 42 Inches Gate Frame

Modern Yard 304 stainless steel mechanical combination gate lock

Modern Yard™ Stainless Steel Mechanical Combination Lock

Imagine Your Future Fence

​Installation Guides

Installation Manual

​Technical Drawing


Frequently asked questions

The 72-inch gate height includes the one-inch gap above ground. It is the overall measurement, not the board length.

For these composite single gates, buy the frame, two 114-inch posts and combination lock separately. Each post stands 74 inches above ground and 40 below.

Wash with mild soap, water and a soft cloth or brush. See the installation and care resources for the gate's other components.
