Nine full Charcoal composite pieces and one solid end strip fill this large horizontal fence gate. Eight one-inch openings separate the horizontal board runs. The nominal format is 3.5 × 6 ft.
The composite boards mix wood fiber with recycled plastic. Their faces need no routine painting, staining or sealing. For occasional cleaning, use water with mild soap and a soft brush or cloth.
Buy the frame, steel posts, Charcoal boards, spacers and combination lock separately. View the horizontal composite fence gate configurations for the available patterns. Include any adjoining fence panel with this leaf in the quote to check shared post locations.
Nine full Charcoal composite pieces and one solid end strip fill this large horizontal fence gate. Eight one-inch openings separate the horizontal board runs. The nominal format is 3.5 × 6 ft.
The composite boards mix wood fiber with recycled plastic. Their faces need no routine painting, staining or sealing. For occasional cleaning, use water with mild soap and a soft brush or cloth.
Buy the frame, steel posts, Charcoal boards, spacers and combination lock separately. View the horizontal composite fence gate configurations for the available patterns. Include any adjoining fence panel with this leaf in the quote to check shared post locations.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45½ inches.
Clear opening between posts: approximately 42⅜ inches.
Post height above ground: 74 inches, excluding the post cap.
Post depth below ground: 40 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Mechanical Combination Lock: 304 stainless steel.
1-inch Composite Spacer: powder-coated aluminum.
- The large leaf uses a single Charcoal composite color.
- Eight one-inch gaps break up the horizontal board runs.
- A solid end strip finishes the Charcoal board stack.
- The composite board faces resist fading, rot, moisture and insects.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Charcoal Fence Board x 2.5 packs (10 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ Accessory – 1-Inch Spacer for Horizontal Fence (40-Pack) x 0.4 pack
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal boards and covered metal gate parts: up to 25 / 10 years.
- Covered Charcoal board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Frequently asked questions
Is Charcoal infill the same material as the frame?
Charcoal is the wood plastic composite infill color. Powder-coated aluminum forms the surrounding frame. Galvanized steel posts support the gate. The separately purchased combination lock includes the gate latch.
Is there an opening at each end of the board stack?
The terminal strip is solid composite. Eight clear gaps sit between the spaced board runs. Each actual opening has spacers in both side grooves.
What board and spacer packs should I request?
Ten original Charcoal boards supply nine full pieces and one solid end strip. Three four-board packs supply twelve boards; one 40-piece spacer pack covers sixteen installed spacers. Add the other gate components to your Charcoal gate estimate.
You Might Also Like

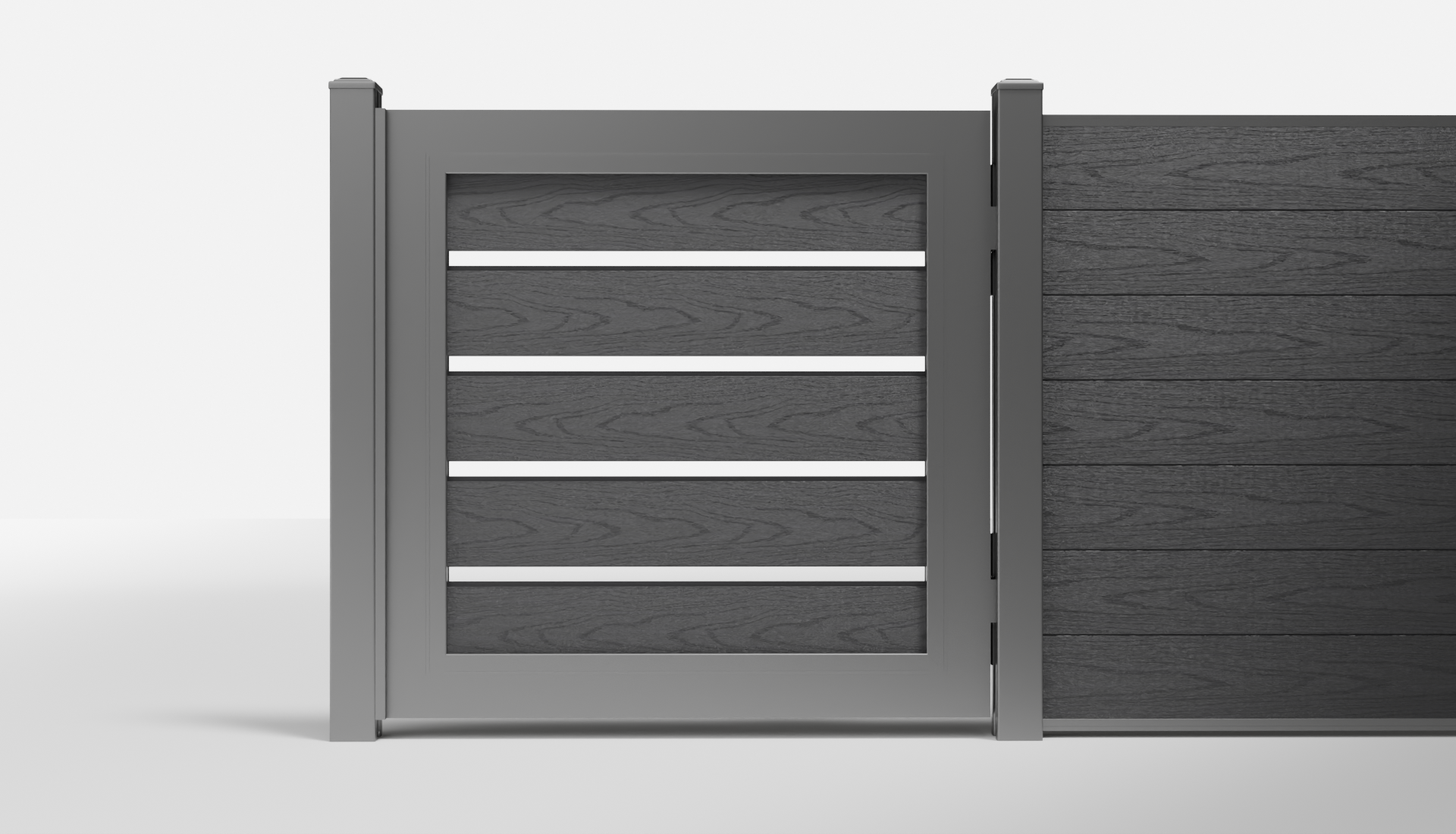

In-Ground
