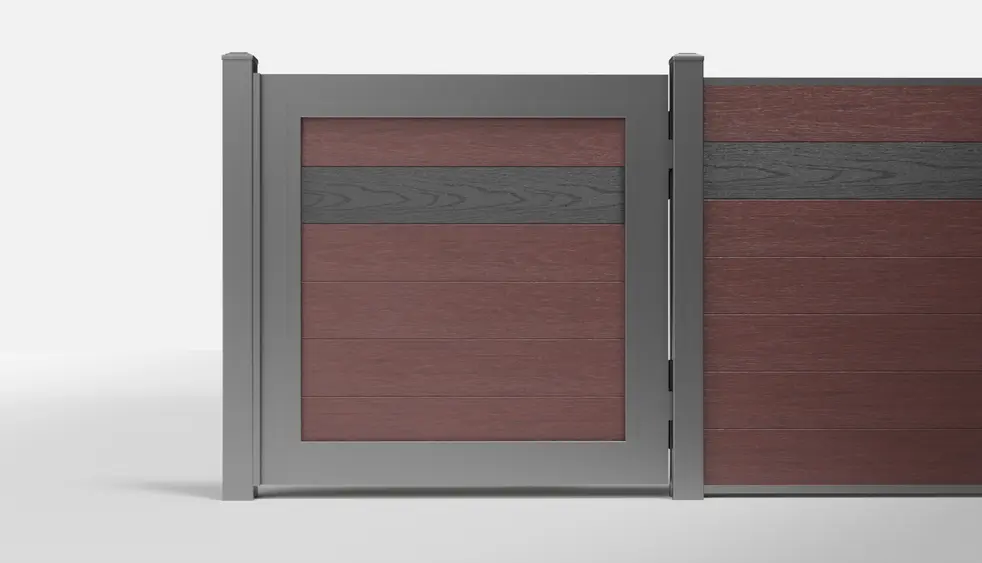

Charcoal and Redwood Composite Horizontal Full Privacy Single Gate — 1 Charcoal Board + 5 Redwood Boards — 3.5 ft W × 3.5 ft H - In-Ground

Style #:

WPH/SGFPCH1RD5-42X42-IG

Five Redwood boards and one Charcoal board make up this small gate's six-piece horizontal infill. Joined boards give the two-color leaf a closed face, edged by Private Black powder-coated aluminum. Its nominal 3.5 ft W × 3.5 ft H size coordinates with a lower front-yard fence.

The composite combines wood fibers and recycled polyethylene, providing wood-look infill in two distinct colors. Separate boards complete the frame-and-infill assembly, supported by In-Ground steel posts. Compare the composite gate options for single-color and mixed-color entrance designs.

  • Five Redwood boards and one Charcoal board make up this small gate's six-piece horizontal infill. Joined boards give the two-color leaf a closed face, edged by Private Black powder-coated aluminum. Its nominal 3.5 ft W × 3.5 ft H size coordinates with a lower front-yard fence.

    The composite combines wood fibers and recycled polyethylene, providing wood-look infill in two distinct colors. Separate boards complete the frame-and-infill assembly, supported by In-Ground steel posts. Compare the composite gate options for single-color and mixed-color entrance designs.

  • Engineering Dimensions

    Nominal size (width × height): 3.5 × 3.5 ft.

    Mounting Type: In-Ground.

    Gate height: 43¼ inches.

    Gap below the gate: 1½ inches.

    Post spacing (center to center): 45⅝ inches.

    Clear opening between posts: approximately 42⅜ inches.

    Post height above ground: 45 inches, excluding the post cap.

    Post depth below ground: 24 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    42 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Frame Cover Strip: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    Groove Cover: powder-coated aluminum.

    • One Charcoal piece contrasts with five horizontal Redwood pieces.
    • Joined composite boards create the closed privacy face.
    • Charcoal's UV-protected wrap helps resist fading from sun exposure.
    • A welded aluminum frame holds the infill between galvanized steel posts.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal and Redwood boards and covered metal gate parts: up to 25 / 10 years.
    • Covered Charcoal and Redwood board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
