Get a better sense of your project cost and materials.


Eight Charcoal boards join in horizontal rows in this Modern Yard™ composite fence with full privacy infill. The nominal section measures 6 × 4 ft. Private Black posts and rails border its wood-grain board faces.

The Charcoal boards combine natural wood fibers and recycled plastic. All eight boards share the same wood-look finish. The posts are powder-coated galvanized steel, while the top and bottom rails are powder-coated aluminum.

Two four-board packs supply the eight-board infill; posts and rails are separate purchases. Plan connections through the horizontal composite fence system before counting shared posts along your run.

  • Eight Charcoal boards join in horizontal rows in this Modern Yard™ composite fence with full privacy infill. The nominal section measures 6 × 4 ft. Private Black posts and rails border its wood-grain board faces.

    The Charcoal boards combine natural wood fibers and recycled plastic. All eight boards share the same wood-look finish. The posts are powder-coated galvanized steel, while the top and bottom rails are powder-coated aluminum.

    Two four-board packs supply the eight-board infill; posts and rails are separate purchases. Plan connections through the horizontal composite fence system before counting shared posts along your run.

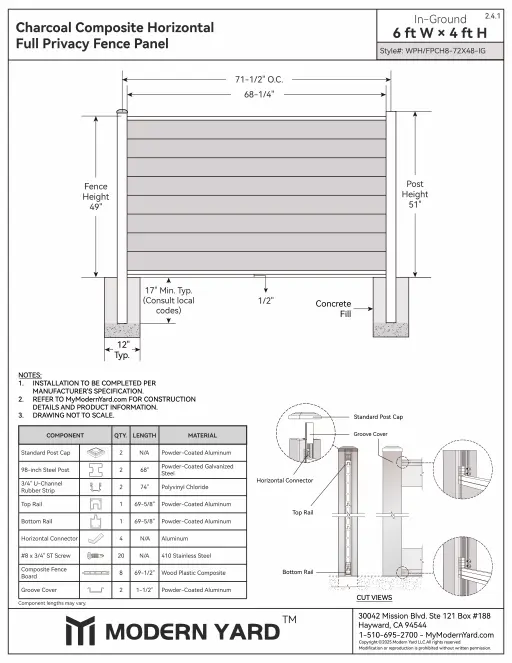

  • Engineering Dimensions

    Nominal size (width × height): 6 × 4 ft.

    Mounting Type: In-Ground.

    Fence height: 49 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 51 inches, excluding the post cap.

    Post depth below ground: 17 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Eight Charcoal boards make the closed horizontal infill.
    • Private Black metal edges frame the wood-grain Charcoal surface.
    • The Charcoal board material resists moisture and insect damage.
    • Wash the board faces with mild soap and water and a soft cleaning tool; they need no routine painting or staining.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

Charcoal names the eight composite boards. Galvanized steel makes the posts, and aluminum makes the top and bottom rails. The metal finish is Private Black.

Two four-board Charcoal packs provide eight boards. Add the posts and horizontal rail set from Component Needs to complete the order for this assembly.

Review the horizontal composite system page for related options. Keep this section's 4 ft nominal height, closed infill and eight-board count when ordering. Other layouts have their own quantities.
