8x3 LINE Full-Privacy Metal Fence

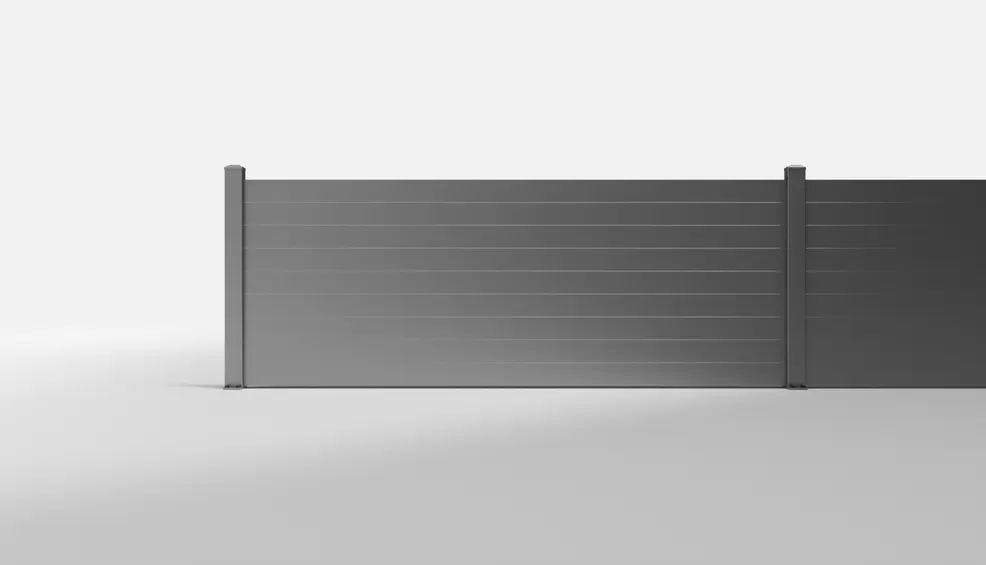

Private Black Horizontal Steel Slat Full-Privacy Fence — 8 × 3 Feet — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Private Black LINE Horizontal Full Privacy Metal Fence Panel — 8 ft W × 3 ft H - Surface Mount

Style #:

LNH/FPPB9-96X36-SM

Engineering Dimensions

Nominal size (width × height): 8 × 3 ft.

Mounting Type: Surface Mount.

Fence height: 36 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 96⅜ inches.

Clear opening between posts: approximately 93¼ inches.

Post height above ground: 38 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Line™ Fence Slat: powder-coated galvanized steel.

Base Connector: powder-coated aluminum.

L Connector: 201 stainless steel.

#8 x 3/4" ST Screw: 410 stainless steel.

Groove Cover: powder-coated aluminum.

Slot Insert Strip: EVA (ethylene vinyl acetate).

Nine Private Black LINE slats form the closed infill of this Surface Mount metal fence. The nominal 8 × 3 ft horizontal metal fence uses powder-coated galvanized steel slats and the full-privacy hardware arrangement.

Finished base posts stand 38 inches around the 36-inch fence. Each panel uses 0.5 pack of the Full-Privacy Hardware Kit for 1-Inch Fence Slats; round combined project usage to whole packs.

Limited warranty periods (residential / commercial use):

Structural defects in covered metal fence parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Nine Private Black LINE slats form the closed infill of this Surface Mount metal fence. The nominal 8 × 3 ft horizontal metal fence uses powder-coated galvanized steel slats and the full-privacy hardware arrangement.
Finished base posts stand 38 inches around the 36-inch fence. Each panel uses 0.5 pack of the Full-Privacy Hardware Kit for 1-Inch Fence Slats; round combined project usage to whole packs.
Engineering Dimensions
Nominal size (width × height): 8 × 3 ft.
Mounting Type: Surface Mount.
Fence height: 36 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 38 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Line™ Fence Slat: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
#8 x 3/4" ST Screw: 410 stainless steel.
Groove Cover: powder-coated aluminum.
Slot Insert Strip: EVA (ethylene vinyl acetate).
Nine LINE steel slats form the closed horizontal infill of this full-privacy panel.
Private Black powder coating covers the galvanized-steel slats, matching the metal post finish.
The steel posts use welded base plates for Surface Mount rather than a buried-post arrangement.
You supply the ground anchors for the post bases; they are separate from the LINE infill hardware.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard Line™ Fence Slat x 4.5 packs (9 slats)
Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, Slot Insert Strip x 4 PCs)
Limited warranty periods (residential / commercial use):
Structural defects in covered metal fence parts: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
