4 ft Teak Composite Fence with Slatted Top

Teak Wood-Look Vertical Composite Fence with Steel Slatted Top — 8 × 4 Feet — In-Ground

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Teak Composite Vertical Slatted Top Fence Panel — 8 ft W × 4 ft H - In-Ground

Style #:

WPV/STTK16LNPB2-96X48-IG

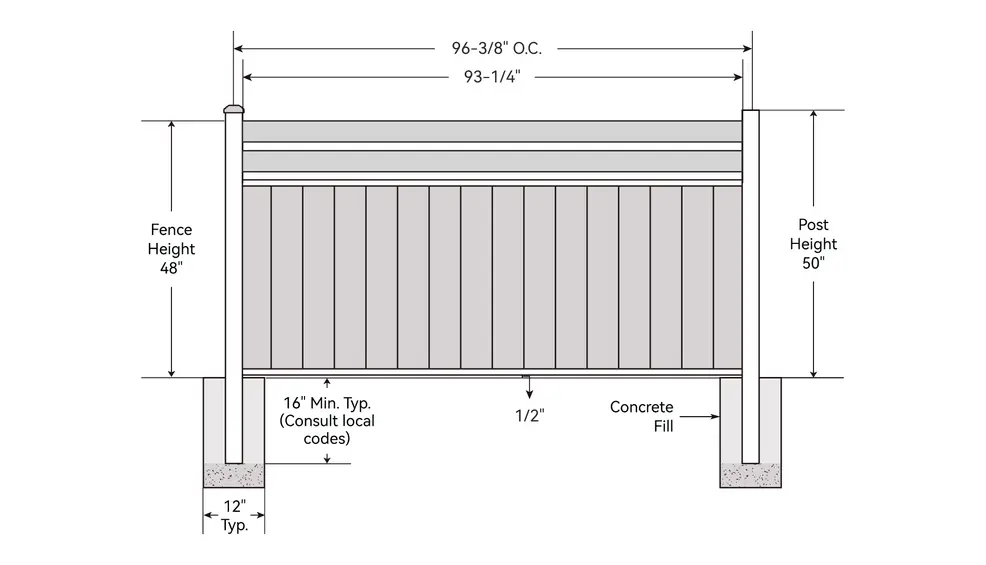

Engineering Dimensions

Nominal size (width × height): 8 × 4 ft.

Mounting Type: In-Ground.

Fence height: 48 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 96⅜ inches.

Clear opening between posts: approximately 93¼ inches.

Post height above ground: 50 inches, excluding the post cap.

Post depth below ground: 16 inches.

Concrete footing width: 12 inches min.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

98-inch Steel Post: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

U Rail: powder-coated galvanized steel.

End Cap: PA6.

Top Rail Connector: powder-coated aluminum.

Bottom Rail Connector: powder-coated aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Line™ Fence Slat: powder-coated galvanized steel.

Base Connector: powder-coated aluminum.

Stackable Connector: powder-coated aluminum.

L Connector: 201 stainless steel.

Sixteen upright Teak pieces and two Private Black LINE slats give this composite fence panel its slatted top. The nominal 8 × 4 ft format includes both the joined board body and open metal detail.

Wood fibers and recycled plastic form the Teak composite. Its wood-grain faces resist moisture, insects, rot and fading without routine painting, staining or sealing. The upper slats use powder-coated galvanized steel to help resist corrosion and outdoor wear.

A Vertical Fence Rail Set frames the lower infill; separate connectors hold the top slats. Compare other layouts in the vertical composite fencing overview.

Limited warranty periods (residential / commercial use):

Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
Covered Teak board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Sixteen upright Teak pieces and two Private Black LINE slats give this composite fence panel its slatted top. The nominal 8 × 4 ft format includes both the joined board body and open metal detail.
Wood fibers and recycled plastic form the Teak composite. Its wood-grain faces resist moisture, insects, rot and fading without routine painting, staining or sealing. The upper slats use powder-coated galvanized steel to help resist corrosion and outdoor wear.
A Vertical Fence Rail Set frames the lower infill; separate connectors hold the top slats. Compare other layouts in the vertical composite fencing overview.
Engineering Dimensions
Nominal size (width × height): 8 × 4 ft.
Mounting Type: In-Ground.
Fence height: 48 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 50 inches, excluding the post cap.
Post depth below ground: 16 inches.
Concrete footing width: 12 inches min.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
98-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
U Rail: powder-coated galvanized steel.
End Cap: PA6.
Top Rail Connector: powder-coated aluminum.
Bottom Rail Connector: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
Line™ Fence Slat: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
Stackable Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Teak wood-grain boards form the joined vertical body.
Two spaced Private Black steel slats finish the top.
Eight original boards supply all sixteen short composite pieces.
Separate rails and slat connectors support the two infill areas.
Modern Yard™ 98-inch Steel Post x 1 PC
Modern Yard™ Teak Fence Board x 2 packs (8 full-length boards; 16 installed pieces after cutting)
Modern Yard™ Vertical Fence Rail Set x 1 set
Modern Yard Line™ Fence Slat x 1 pack (2 slats)
Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats x 0.2 set (Base Connector x 6 PCs, Stackable Connector x 2 PCs, L Connector x 2 PCs)
Limited warranty periods (residential / commercial use):
Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
Covered Teak board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
