This Teak composite fence gate has a six-board vertical leaf to match a vertical fence design. This full-privacy single gate keeps a nominal 6 ft leaf height and 3.5 ft width. The Crossbeam version adds the overhead arrangement specified for joining a 7 ft fixed fence.
Teak composite boards fill an aluminum frame. Separate LINE stock supplies the steel crossbeam. The composite fence gates guide lets you compare horizontal and vertical choices without mixing their quantities. Plan the fence installation with two steel posts, a mechanical lock and the hardware for one crossbeam.
This Teak composite fence gate has a six-board vertical leaf to match a vertical fence design. This full-privacy single gate keeps a nominal 6 ft leaf height and 3.5 ft width. The Crossbeam version adds the overhead arrangement specified for joining a 7 ft fixed fence.
Teak composite boards fill an aluminum frame. Separate LINE stock supplies the steel crossbeam. The composite fence gates guide lets you compare horizontal and vertical choices without mixing their quantities. Plan the fence installation with two steel posts, a mechanical lock and the hardware for one crossbeam.

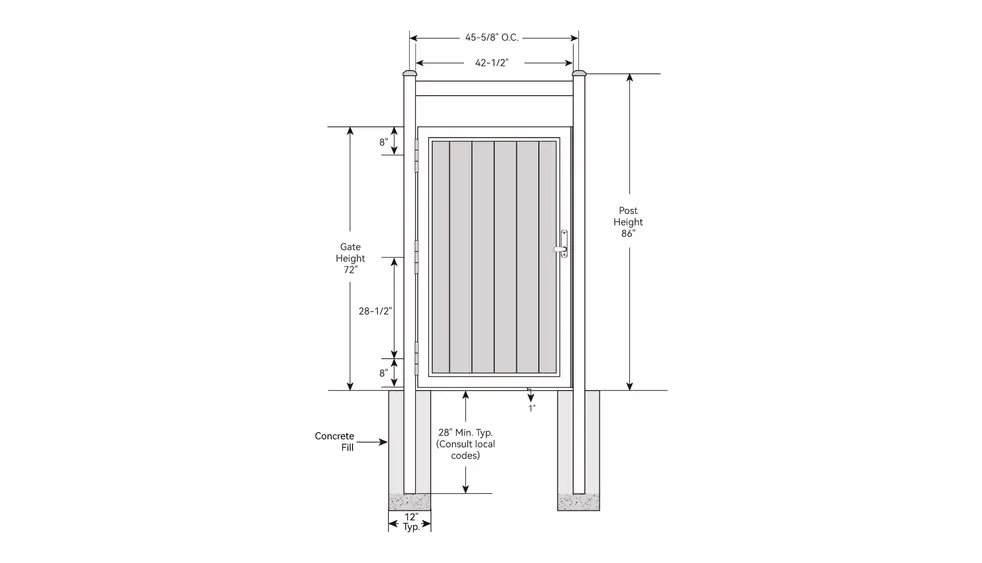

Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
- The vertical Teak leaf uses six composite boards.
- Nominal 3.5 × 6 ft gate dimensions remain unchanged by the overhead member.
- The component list separates the aluminum frame from steel posts and crossbeam.
- The Crossbeam version is specified for a 7 ft fence connection.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Teak Fence Board x 1.5 packs (6 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Will the crossbeam raise the Teak door leaf to 7 ft?
No. The leaf remains nominally 6 ft high. This separate installation connects it with a 7 ft fence and uses its own post and overhead details.
How is the six-board quantity shown in sales packs?
The source assigns 1.5 four-board packs of Teak. Plan complete sales packs and usable stock across the whole project.
Does the FP hardware entry add EVA inside this gate?
The specified single crossbeam does not use EVA. Its FP hardware share supplies the required connectors and screws; unused supplied material remains stock.
