Spaced composite fence gates need both the leaf recipe and the correct frame. This Teak composite fence gate uses nine full horizontal boards and one supplemental strip with 1-inch gaps. One LINE crossbeam connects this gate to a 7 ft fence. The leaf remains nominally 6 ft high.
An aluminum frame holds the Teak infill, while two steel posts support the gate and the separate overhead LINE member. The horizontal composite fencing guide provides context for the fixed fence sections. Use this model's spacer components and material shares when ordering; the LINE stock above the opening and the composite pieces within the leaf are separate requirements.
Spaced composite fence gates need both the leaf recipe and the correct frame. This Teak composite fence gate uses nine full horizontal boards and one supplemental strip with 1-inch gaps. One LINE crossbeam connects this gate to a 7 ft fence. The leaf remains nominally 6 ft high.
An aluminum frame holds the Teak infill, while two steel posts support the gate and the separate overhead LINE member. The horizontal composite fencing guide provides context for the fixed fence sections. Use this model's spacer components and material shares when ordering; the LINE stock above the opening and the composite pieces within the leaf are separate requirements.

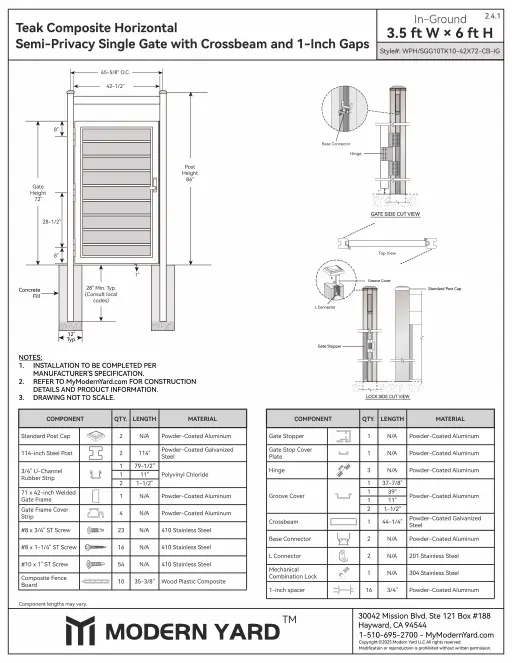

Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
1-inch Spacer: powder-coated aluminum.
- Teak composite infill retains the specified 1-inch gaps.
- Nine full boards are used with one supplemental strip in the leaf.
- A separate cut LINE member forms the overhead crossbeam.
- The two-post In-Ground layout is specific to the 7 ft fence connection.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Teak Fence Board x 2.5 packs (10 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ Accessory – 1-Inch Spacer for Horizontal Fence (40-Pack) x 0.4 pack (1-inch Spacer x 16 PCs)
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Is this the same installation as the Teak gate without a crossbeam?
No. The leaf pattern is retained, but this separate configuration uses an overhead LINE member and the post layout specified for a 7 ft fence connection.
What does the Teak quantity of 2.5 packs cover?
That allocation covers nine full boards and one supplemental strip. Order complete sales packs for the project.
Can the crossbeam hardware replace the composite spacers?
No. The leaf spacers set the specified infill layout. The full-privacy hardware share fixes the overhead LINE member and does not replace those spacers.
