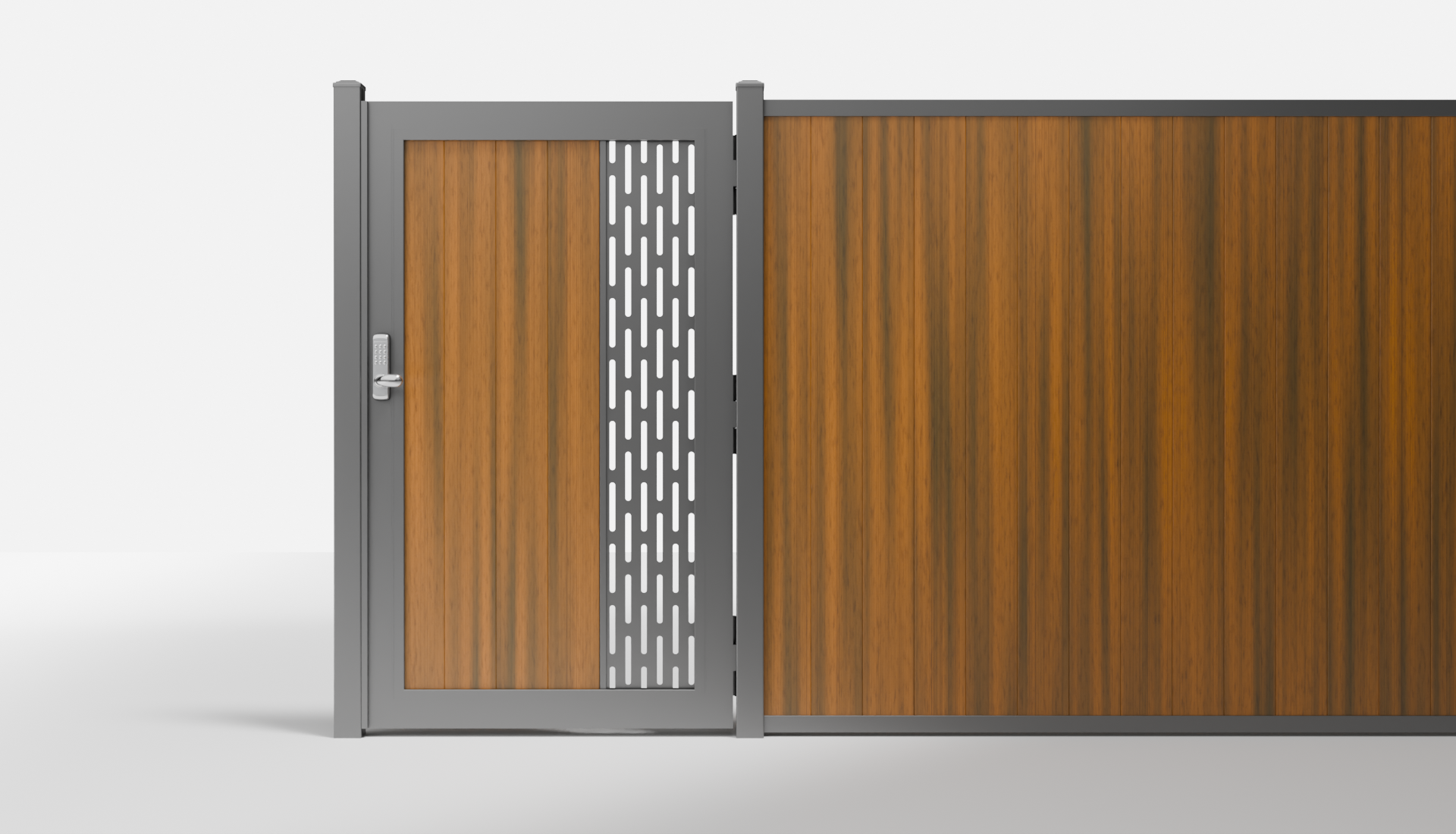

Compare composite single gates by their board direction and decorative infill. Four Teak composite boards and one P01 module form this single gate, held within a powder-coated aluminum frame. P01 combines a coated galvanized steel body with aluminum edging. Teak composite boards can show gradual color changes with sun and weather conditions.
Above the nominal 6 ft leaf, a separate LINE member forms the crossbeam specified for joining a 7 ft fence. The configuration also records two steel posts and its own opening dimensions.
The gate frame overview helps distinguish the frame product from a complete filled gate. For composite gates with this vertical P01 layout, check the separate overhead parts. This composite fence gate needs four boards and one decorative panel.
Compare composite single gates by their board direction and decorative infill. Four Teak composite boards and one P01 module form this single gate, held within a powder-coated aluminum frame. P01 combines a coated galvanized steel body with aluminum edging. Teak composite boards can show gradual color changes with sun and weather conditions.
Above the nominal 6 ft leaf, a separate LINE member forms the crossbeam specified for joining a 7 ft fence. The configuration also records two steel posts and its own opening dimensions.
The gate frame overview helps distinguish the frame product from a complete filled gate. For composite gates with this vertical P01 layout, check the separate overhead parts. This composite fence gate needs four boards and one decorative panel.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Decorative Panel: electrocoated and powder-coated galvanized steel.
Decorative Panel Top Rail: powder-coated aluminum.
Decorative Panel Bottom Rail: powder-coated aluminum.
Decorative Panel Side Rail: powder-coated aluminum.
- Four Teak boards share the leaf with a single P01 decorative module.
- The vertical infill has its own quantities, distinct from horizontal decorative gates.
- Separate LINE stock supplies one crossbeam above the gate.
- Two specified In-Ground steel posts support this taller fence connection.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Teak Fence Board x 1 pack (4 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
- Covered Teak board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Is the Crossbeam version a taller Teak door leaf?
No. The nominal leaf height stays 6 ft. The dedicated installation connects with a 7 ft fence using its overhead member and taller exposed posts.
Does the leaf need one or two P01 sets?
One set for this single gate. The four Teak boards are listed separately, and the double-gate version has its own complete materials plan.
Can the Teak board pack supply the crossbeam?
No. The board pack supplies composite infill. Separate LINE steel stock supplies the overhead crossbeam.
