Teak Composite Vertical Full Privacy Single Gate — 3.5 ft W × 6 ft H - In-Ground

Style #:

WPV/SGFPTK6-42X72-IG

Upright Teak infill brings a wood-look vertical pattern to this nominal 3.5 ft W × 6 ft H single gate. Six joined composite boards create the closed leaf inside a Private Black powder-coated aluminum frame. Its taller profile is intended for side-yard or walkway access.

Matching In-Ground steel posts support the configuration. The frame, with three supplied hinges, combines with separate boards for on-site assembly. Teak composite faces need no routine painting, staining or sealing. Compare this upright style with the horizontal designs in the composite gate collection.

  • Upright Teak infill brings a wood-look vertical pattern to this nominal 3.5 ft W × 6 ft H single gate. Six joined composite boards create the closed leaf inside a Private Black powder-coated aluminum frame. Its taller profile is intended for side-yard or walkway access.

    Matching In-Ground steel posts support the configuration. The frame, with three supplied hinges, combines with separate boards for on-site assembly. Teak composite faces need no routine painting, staining or sealing. Compare this upright style with the horizontal designs in the composite gate collection.

  • Engineering Dimensions

    Nominal size (width × height): 3.5 × 6 ft.

    Mounting Type: In-Ground.

    Gate height: 72 inches.

    Gap below the gate: 1 inch.

    Post spacing (center to center): 45½ inches.

    Clear opening between posts: approximately 42⅜ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 40 inches.

    Concrete footing width: 12 inches min.

    Hinge positions: 8 / 28½ / 8 inches.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    71 x 42-inch Welded Gate Frame: powder-coated aluminum.

    Gate Frame Cover Strip: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    #8 x 1-1/4" ST Screw: 410 stainless steel.

    #10 x 1" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Gate Stopper: powder-coated aluminum.

    Gate Stop Cover Plate: powder-coated aluminum.

    Hinge: powder-coated aluminum.

    Groove Cover: powder-coated aluminum.

    Mechanical Combination Lock: 304 stainless steel.

    • The selected Teak boards run upright across the leaf.
    • Six joined pieces form the closed composite infill.
    • An aluminum frame holds the boards between two galvanized steel posts.
    • Teak boards have a wood-look face and resist decay and insects.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Teak boards and covered metal gate parts: up to 25 / 10 years.
    • Covered Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Modern Yard 71 x 42 aluminum gate frame on a white background

Modern Yard™ 71 Inches x 42 Inches Gate Frame

Modern Yard 304 stainless steel mechanical combination gate lock

Modern Yard™ Stainless Steel Mechanical Combination Lock

Imagine Your Future Fence

​Installation Guides

Cover of Composite single gate installation manual

Installation Manual

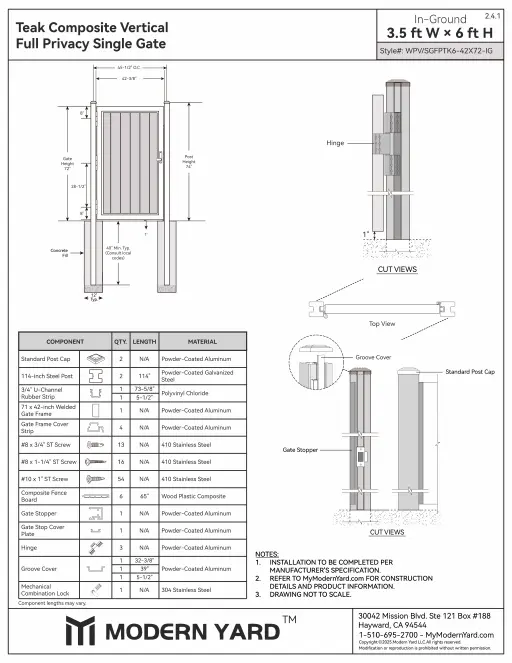

Engineering drawing cover for Teak Composite Vertical Full Privacy Single Gate — 3.5 ft W × 6 ft H - In-Ground (Style WPV/SGFPTK6-42X72-IG).

​Technical Drawing


Frequently asked questions

Joined board edges give this Teak leaf a closed face. The full-privacy layout uses no one-inch spacers.

This configuration uses In-Ground.
