Charcoal composite boards run vertically beside a P01 steel insert in this decorative single gate. Four board pieces form the wood-look area, and aluminum rails edge the patterned panel. A Private Black aluminum gate frame surrounds the nominal 3.5 ft W × 6 ft H leaf for side-yard or walkway access.
Separate frame and infill products are assembled on site with In-Ground steel supports. A LINE steel crossbeam above the six-foot leaf completes this version's connection to a seven-foot fence.
Charcoal composite boards run vertically beside a P01 steel insert in this decorative single gate. Four board pieces form the wood-look area, and aluminum rails edge the patterned panel. A Private Black aluminum gate frame surrounds the nominal 3.5 ft W × 6 ft H leaf for side-yard or walkway access.
Separate frame and infill products are assembled on site with In-Ground steel supports. A LINE steel crossbeam above the six-foot leaf completes this version's connection to a seven-foot fence.
Engineering Dimensions
Nominal size (width × height): 3.5 × 6 ft.
Mounting Type: In-Ground.
Gate height: 72 inches.
Gap below the gate: 1 inch.
Post spacing (center to center): 45⅝ inches.
Clear opening between posts: approximately 42½ inches.
Post height above ground: 86 inches, excluding the post cap.
Crossbeam top: 2 inches below the post top.
Post depth below ground: 28 inches.
Concrete footing width: 12 inches min.
Hinge positions: 8 / 28½ / 8 inches.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
114-inch Steel Post: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
71 x 42-inch Welded Gate Frame: powder-coated aluminum.
Gate Frame Cover Strip: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
#8 x 1-1/4" ST Screw: 410 stainless steel.
#10 x 1" ST Screw: 410 stainless steel.
Composite Fence Board: wood-plastic composite (WPC).
Gate Stopper: powder-coated aluminum.
Gate Stop Cover Plate: powder-coated aluminum.
Hinge: powder-coated aluminum.
Groove Cover: powder-coated aluminum.
Crossbeam: powder-coated galvanized steel.
Base Connector: powder-coated aluminum.
L Connector: 201 stainless steel.
Mechanical Combination Lock: 304 stainless steel.
Decorative Panel: electrocoated and powder-coated galvanized steel.
Decorative Panel Top Rail: powder-coated aluminum.
Decorative Panel Bottom Rail: powder-coated aluminum.
Decorative Panel Side Rail: powder-coated aluminum.
- Four vertical Charcoal composite boards are used with one P01 panel.
- The decorative module combines a coated steel panel with aluminum edging.
- The overhead LINE crossbeam is separate from the decorative infill.
- The gate keeps its nominal 6 ft leaf height within the specified taller fence connection.
- Modern Yard™ 114-inch Steel Post x 2 PCs
- Modern Yard™ 71-inch x 42-inch Door Frame x 1 set
- Modern Yard™ Charcoal Fence Board x 1 pack (4 boards)
- Modern Yard™ Stainless Steel Mechanical Combination Lock x 1 set
- Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel x 1 set
- Modern Yard Line™ Fence Slat x 0.25 pack (1 crossbeam after cutting)
- Modern Yard™ Full-Privacy Hardware Kit for 1-Inch Fence Slats x 0.5 set (Base Connector x 2 PCs, L Connector x 2 PCs, #8 x 3/4" ST Screw x 8 PCs)
Limited warranty periods (residential / commercial use):
- Structural defects in Charcoal boards and covered metal gate parts: up to 25 / 10 years.
- Covered Charcoal board color changes: up to 25 / 10 years.
- Coastal metal coating defects: up to 5 / 3 years.
- Non-coastal metal coating defects: up to 15 / 10 years.
- Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes. The combination lock is outside the periods listed above. Contact Modern Yard for the applicable separate warranty terms.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
Related Components
Frequently asked questions
Can I use the ordinary vertical P01 gate installation with a beam added?
It has the opening, posts, groove covers and fixings specified for this overhead connection; the no-crossbeam gate remains separate.
Is its Charcoal board quantity the same as the horizontal P01 version?
No. This vertical leaf uses four boards with one P01 module. The horizontal P01 single gate uses nine boards with its decorative module.
What does the one-pack Charcoal entry represent?
One four-board sales pack supplies the source board share for this leaf. The decorative set and separate LINE crossbeam stock are additional component entries.
You Might Also Like

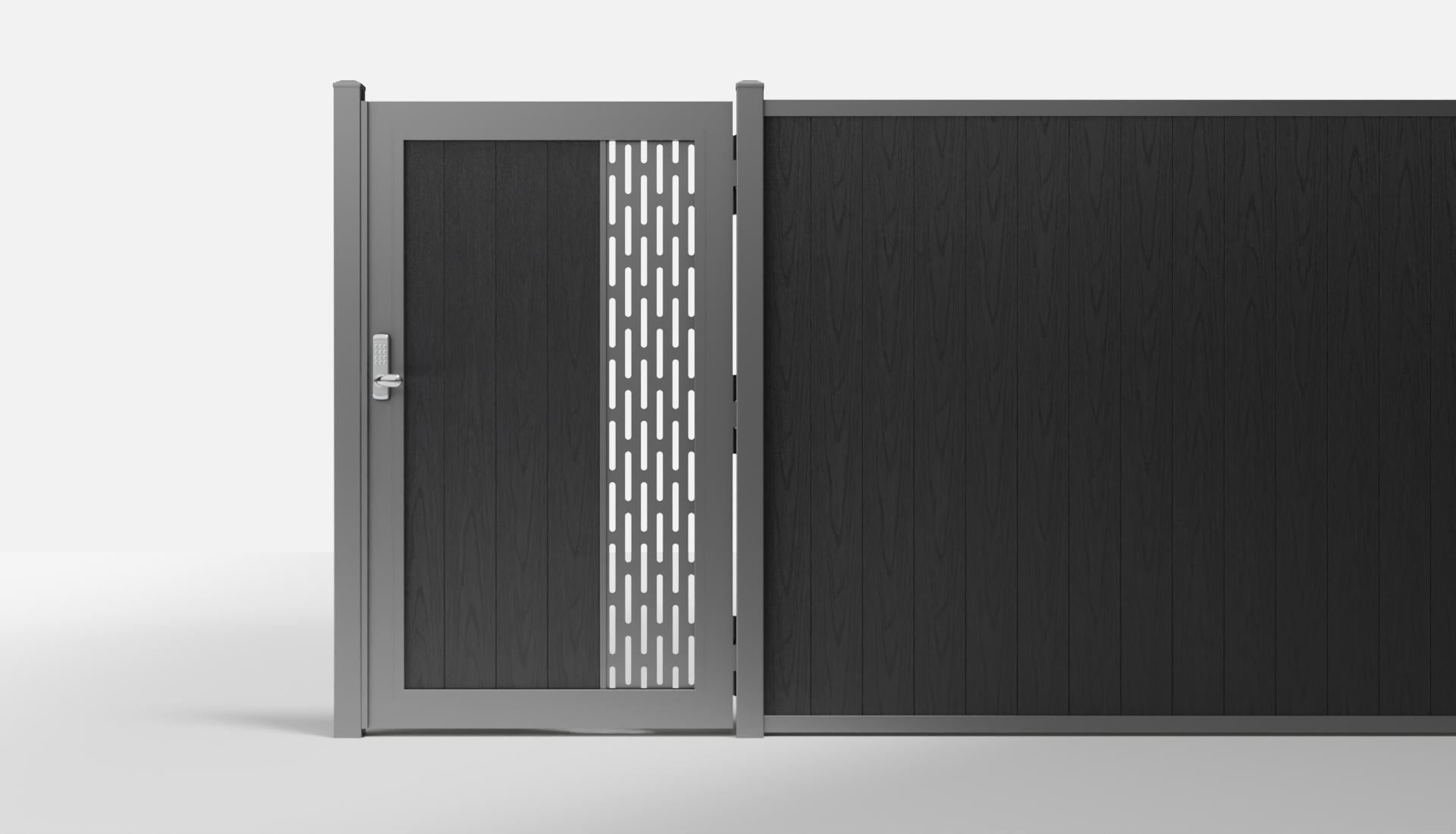

In-Ground
Without Crossbeam
Style #: WPV/SGDP16P01CH4DP1-42X72-IG

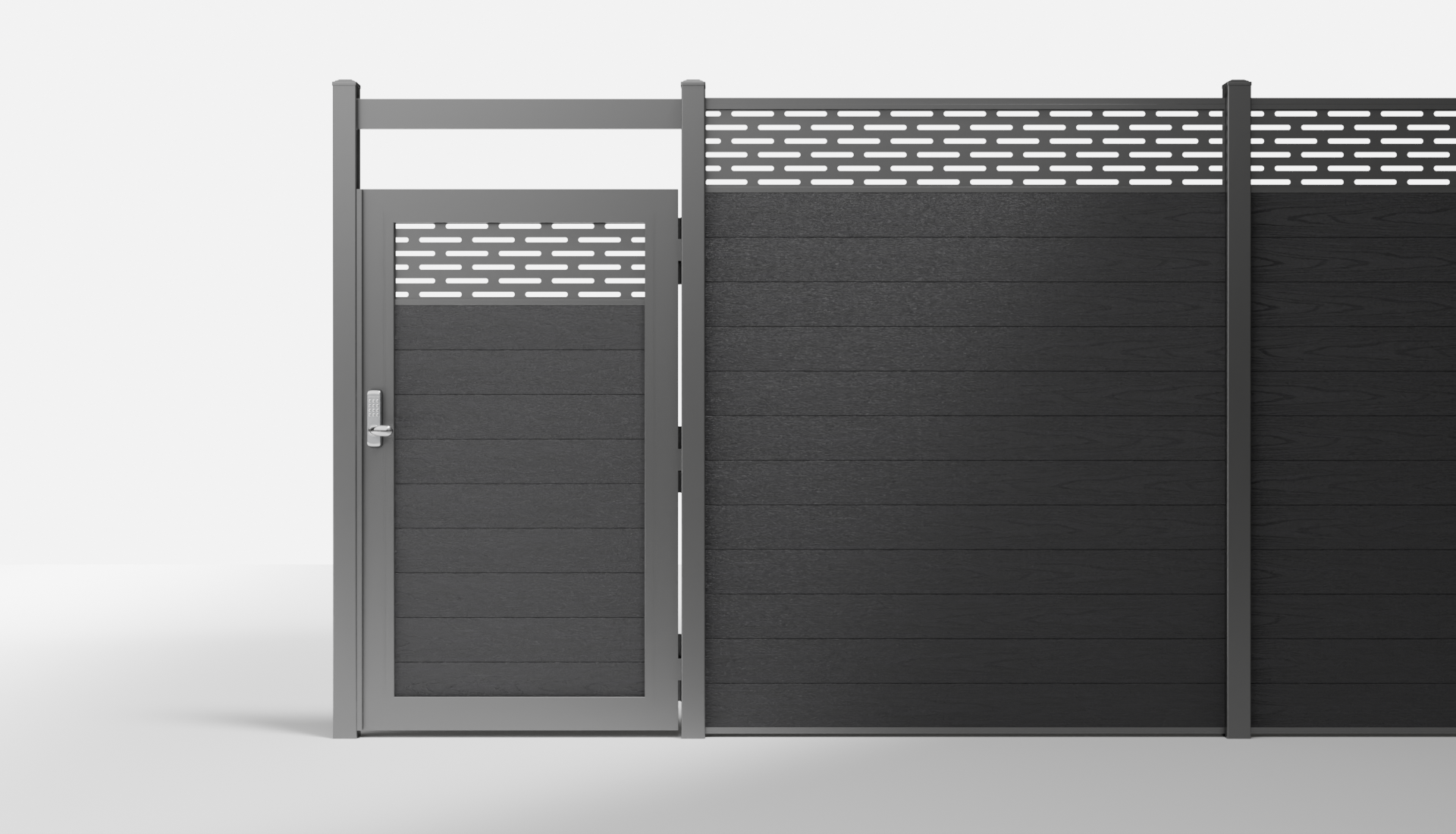

In-Ground
With Crossbeam
Style #: WPH/SGDP16P01CH9DP1-42X72-CB-IG

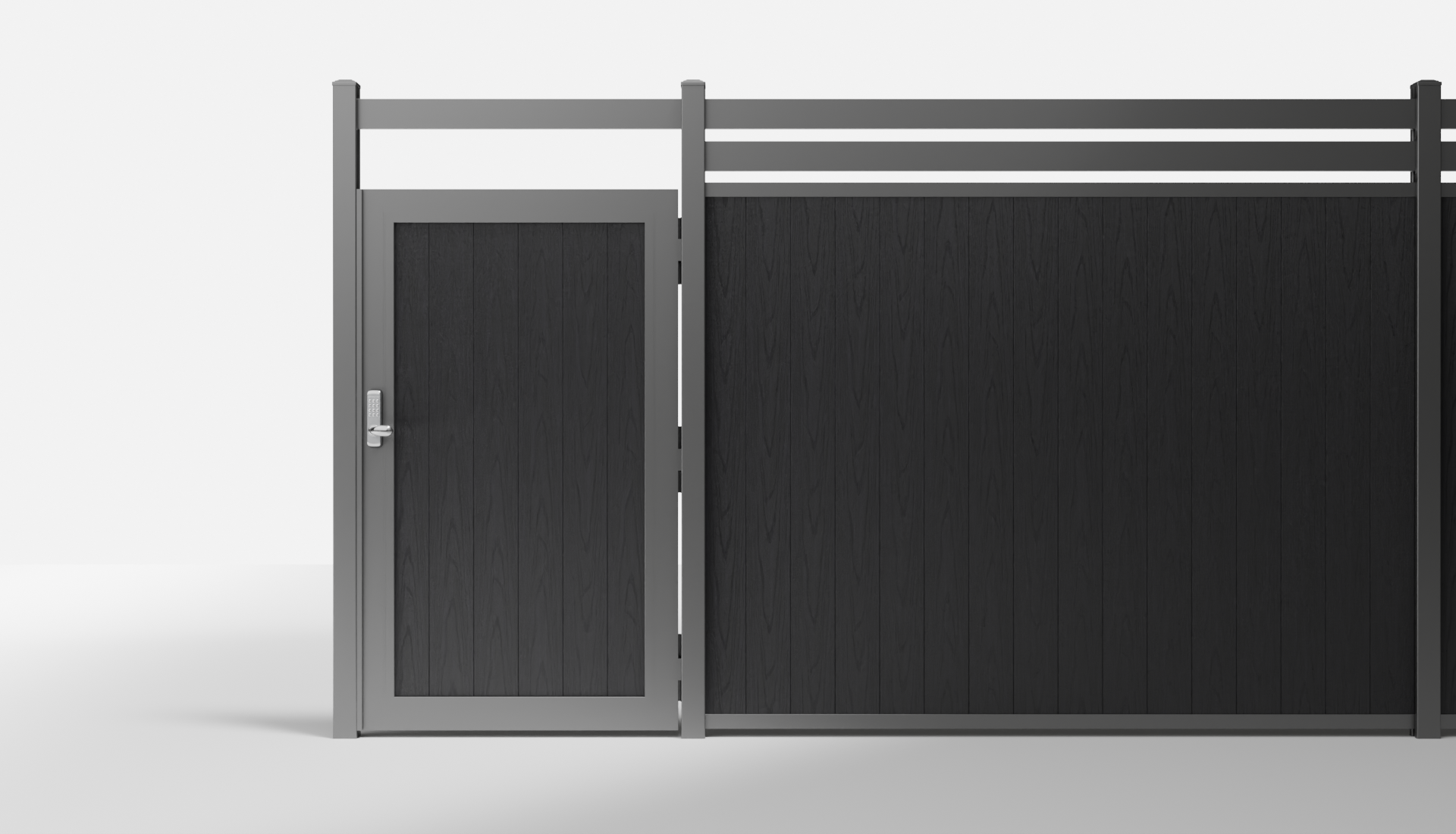

In-Ground
With Crossbeam
Style #: WPV/SGFPCH6-42X72-CB-IG

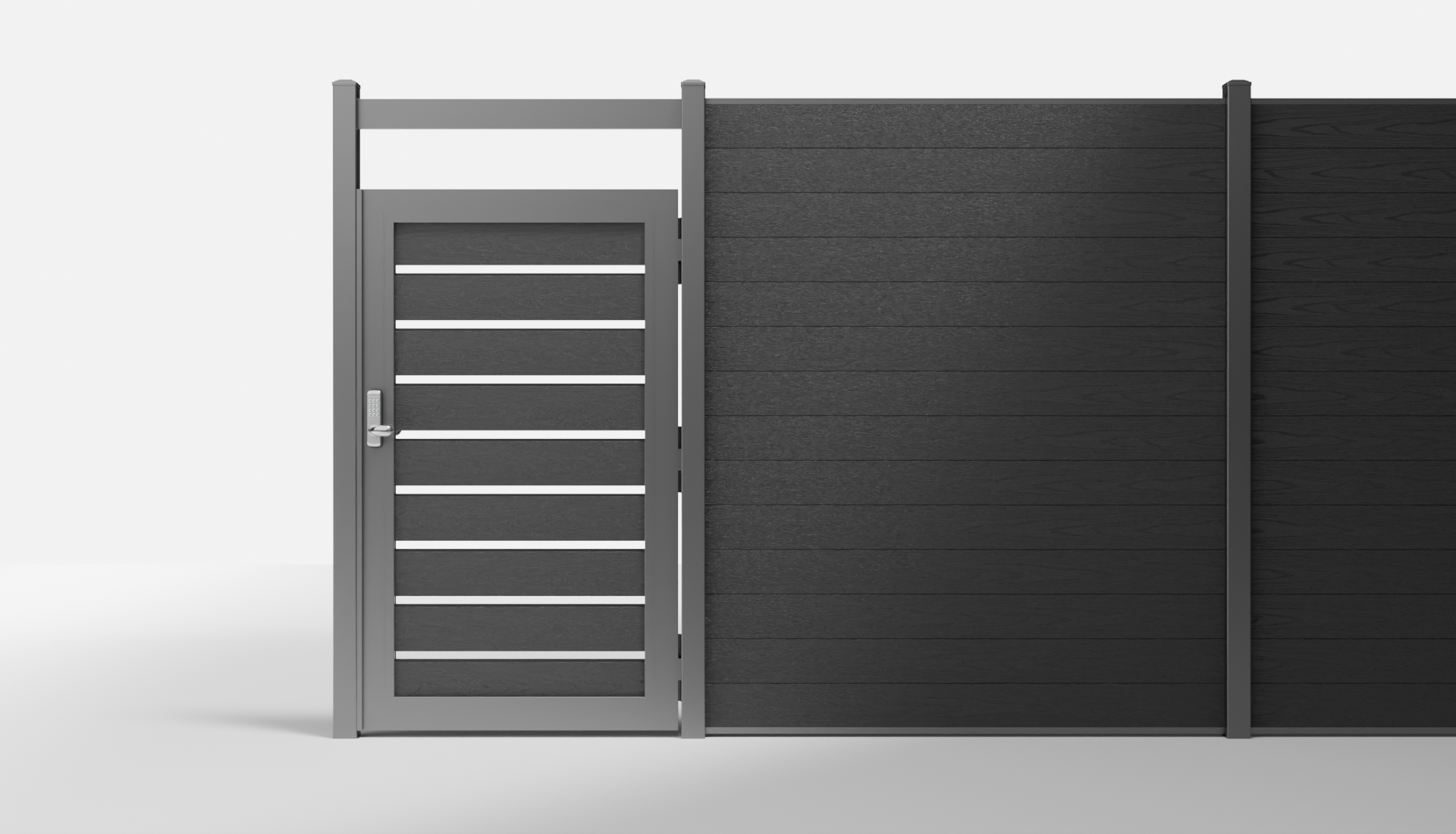

In-Ground
With Crossbeam
Style #: WPH/SGG10CH10-42X72-CB-IG
In-Ground
Without Crossbeam

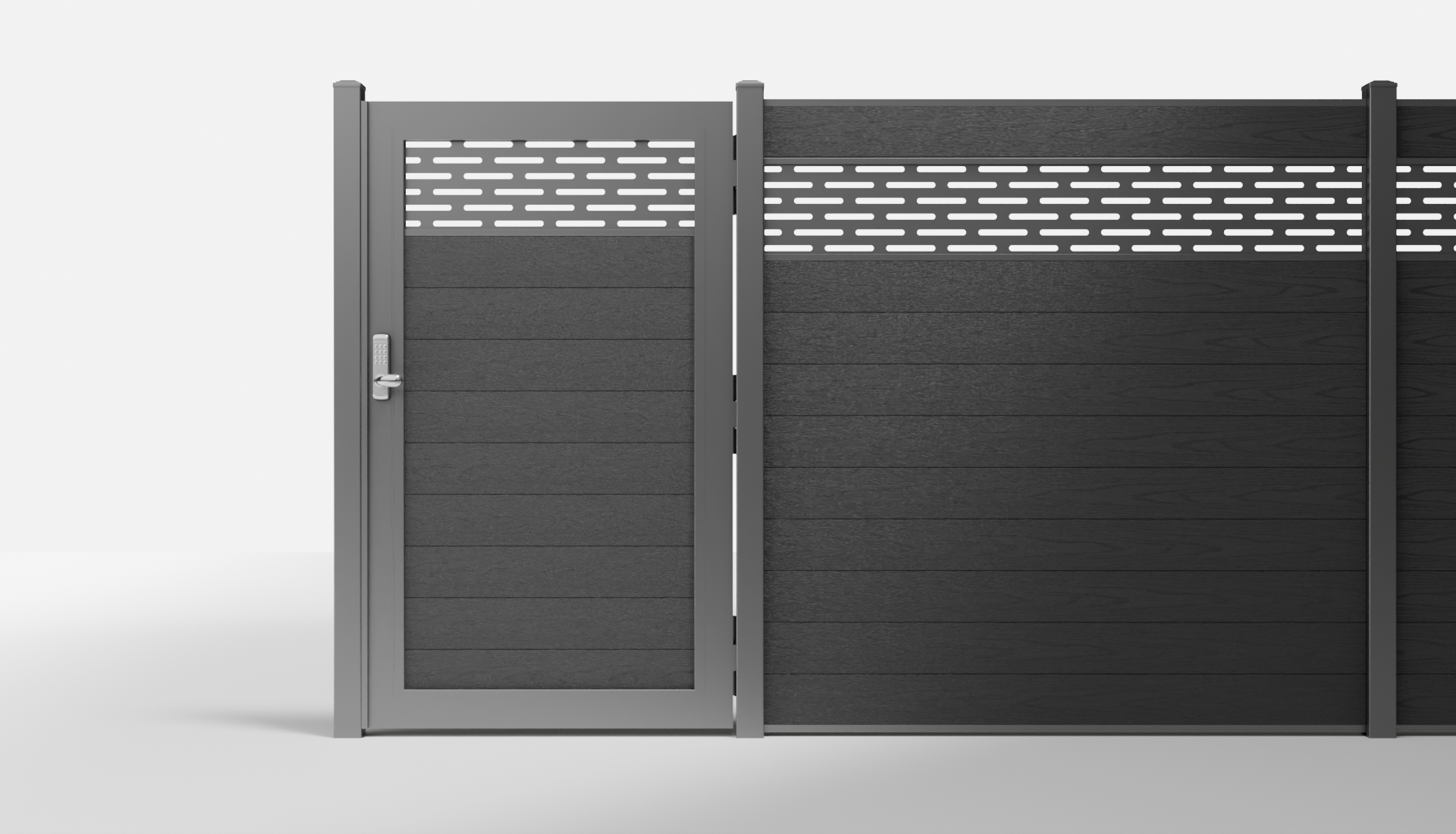

Charcoal Composite Horizontal 1 × 6 ft Decorative Panel, Pattern P01 Single Gate — 3.5 ft W × 6 ft H
Style #: WPH/SGDP16P01CH9DP1-42X72-IG

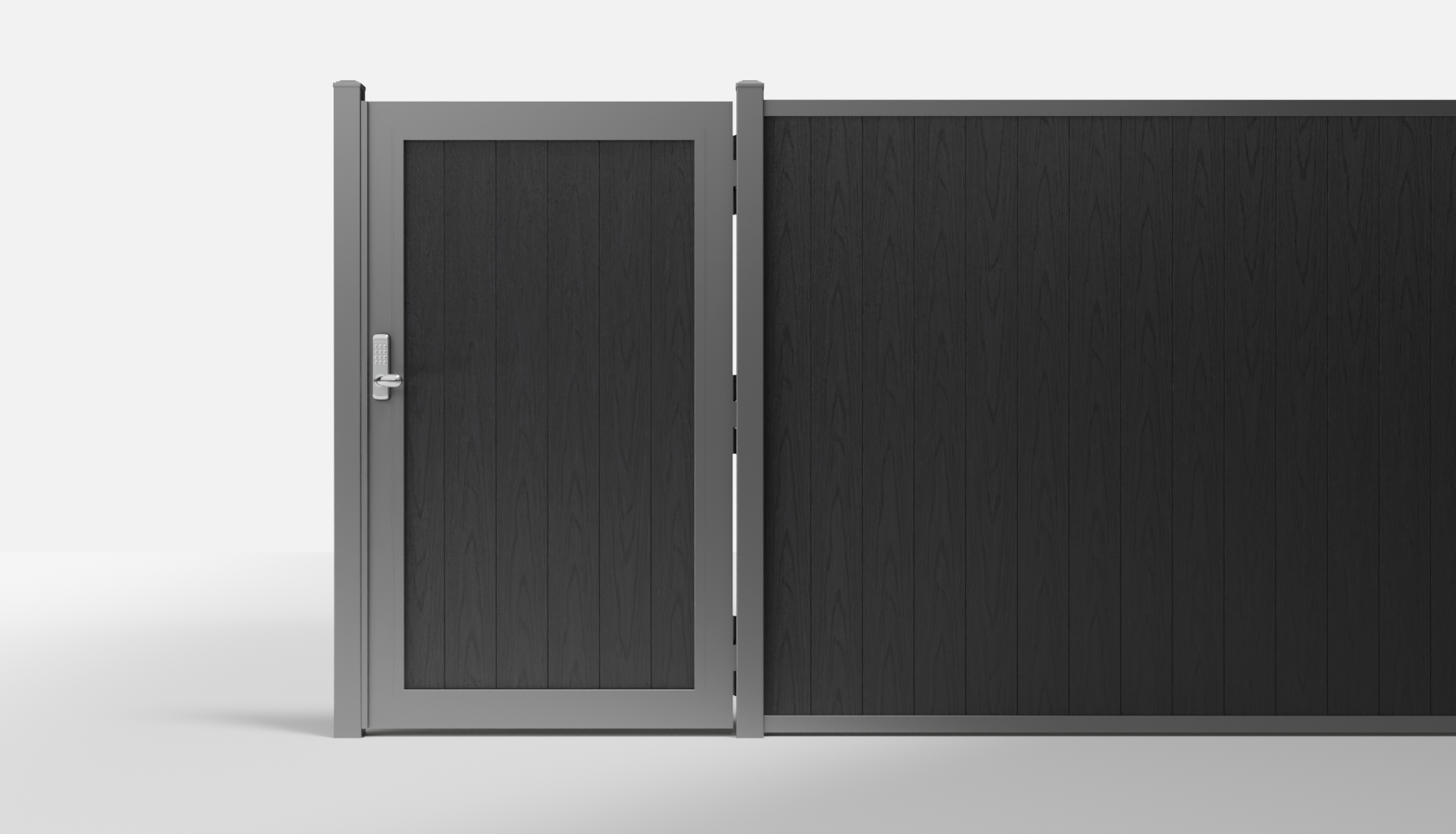

In-Ground
