Get a better sense of your project cost and materials.

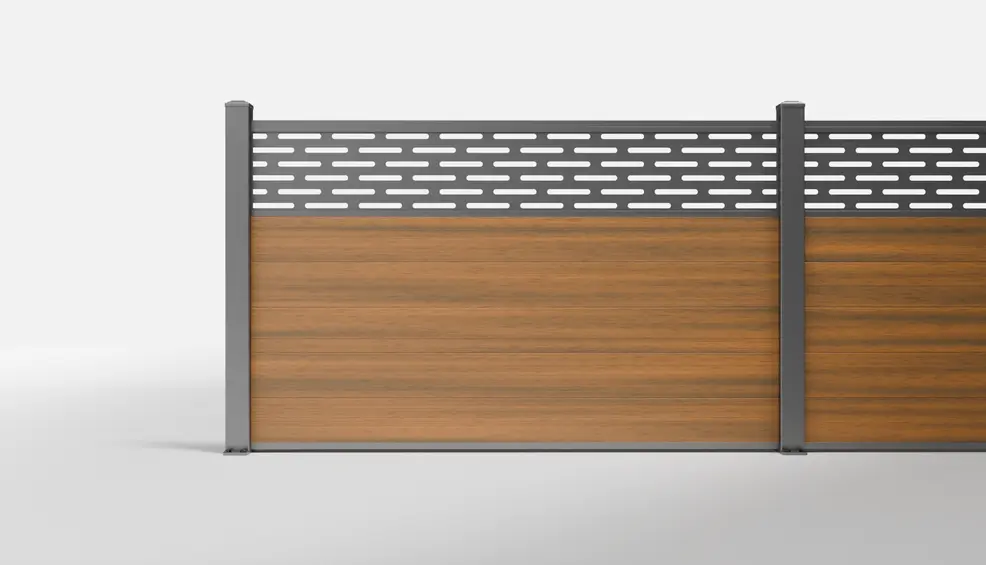

Teak Composite Horizontal Fence Panel with a 1 × 6 ft Decorative Panel (P01) — 6 ft W × 3.5 ft H - Surface Mount

Style #:

WPH/DP16P01TK5DP1-72X42-SM

Teak composite and Private Black patterned steel share this Surface Mount composite fence. Five boards and one P01 decorative panel form the nominal 6 × 3.5 ft horizontal composite fence.

The Teak boards have a wood plastic composite core and a wood grain texture. Electrocoated and powder-coated galvanized steel forms the decorative insert, with aluminum rails around it.

Welded-base galvanized steel posts and matching aluminum rails support the fence system. The finished post height is 45 inches above ground; ground anchors are customer-supplied.

  • Teak composite and Private Black patterned steel share this Surface Mount composite fence. Five boards and one P01 decorative panel form the nominal 6 × 3.5 ft horizontal composite fence.

    The Teak boards have a wood plastic composite core and a wood grain texture. Electrocoated and powder-coated galvanized steel forms the decorative insert, with aluminum rails around it.

    Welded-base galvanized steel posts and matching aluminum rails support the fence system. The finished post height is 45 inches above ground; ground anchors are customer-supplied.

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3.5 ft.

    Mounting Type: Surface Mount.

    Fence height: 43 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 45 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    Decorative Panel: electrocoated and powder-coated galvanized steel.

    Decorative Panel Top Rail: powder-coated aluminum.

    Decorative Panel Bottom Rail: powder-coated aluminum.

    Decorative Panel Side Rail: powder-coated aluminum.

    • A single P01 insert adds patterned steel to five Teak boards.
    • Wood-grain Teak faces sit beside the Private Black decorative finish.
    • Mild soap, water and a soft brush suit routine board cleaning.
    • Welded steel bases provide the specified Surface Mount connection.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Modern Yard 1 x 6 ft decorative fence panel with modern perforated metal design

Modern Yard™ 1 Foot x 6 Feet Fence Decorative Panel

Imagine Your Future Fence

Installation Guides

Installation Manual

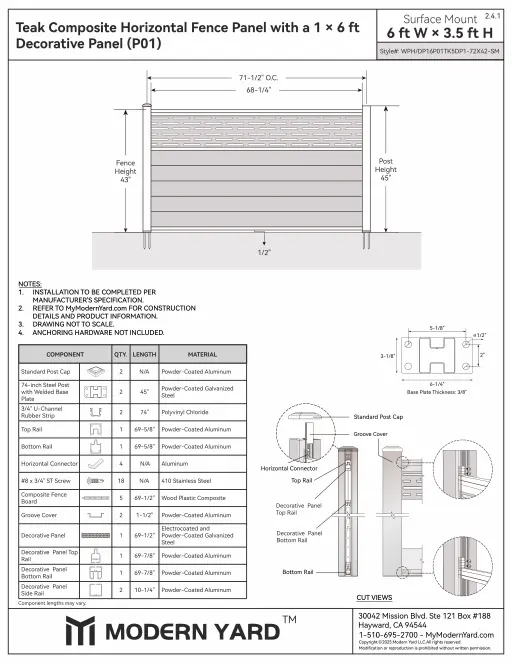

​Technical Drawing


Frequently Asked Questions

The specified insert is a Private Black decorative panel in Pattern P01. Match that panel with the five Teak composite boards listed for this section.

No. The infill contains five Teak boards and one decorative panel; the decorative section replaces part of the all-board layout.

You provide the ground anchors beneath the Teak decorative fence.
