Get a better sense of your project cost and materials.

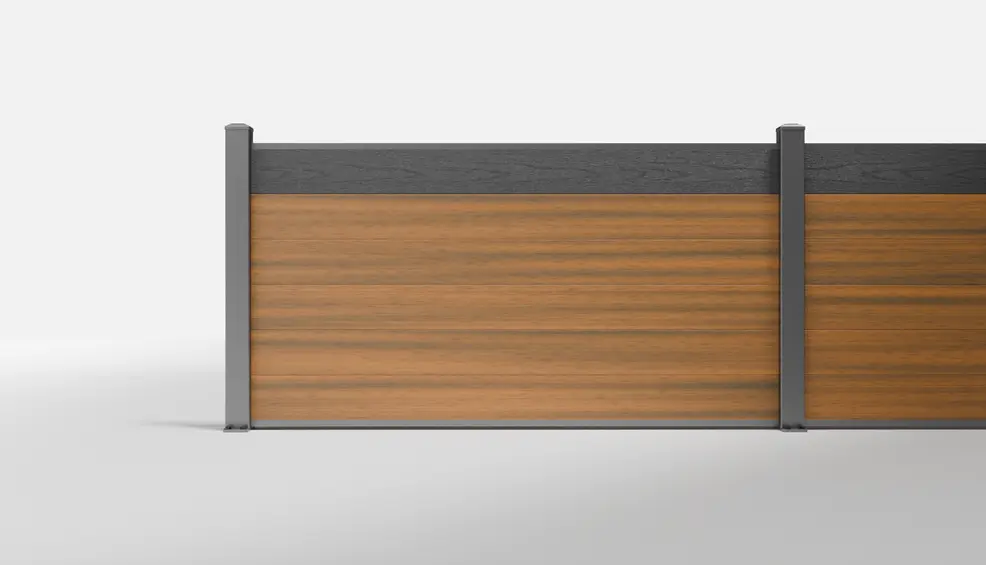

Charcoal and Teak Composite Horizontal Full Privacy Fence Panel — 1 Charcoal Board + 5 Teak Boards — 6 ft W × 3 ft H - Surface Mount

Style #:

WPH/FPCH1TK5-72X36-SM

This Surface Mount composite fence combines five Teak boards with one Charcoal board in a nominal 6 × 3 ft section. The six-board horizontal composite fence infill forms a closed panel with a contrasting color accent.

Teak and Charcoal composite fencing boards have a wood grain texture. The wood plastic composite material needs no routine painting, staining or sealing. Both colors belong to the board infill; the posts and rails are separate metal components.

The fence system uses galvanized steel fence posts with welded base plates and aluminum top and bottom rails. The finished post height is 39 inches. Ground anchors are customer-supplied. Count components for the selected Surface Mount fence section before ordering.

  • This Surface Mount composite fence combines five Teak boards with one Charcoal board in a nominal 6 × 3 ft section. The six-board horizontal composite fence infill forms a closed panel with a contrasting color accent.

    Teak and Charcoal composite fencing boards have a wood grain texture. The wood plastic composite material needs no routine painting, staining or sealing. Both colors belong to the board infill; the posts and rails are separate metal components.

    The fence system uses galvanized steel fence posts with welded base plates and aluminum top and bottom rails. The finished post height is 39 inches. Ground anchors are customer-supplied. Count components for the selected Surface Mount fence section before ordering.

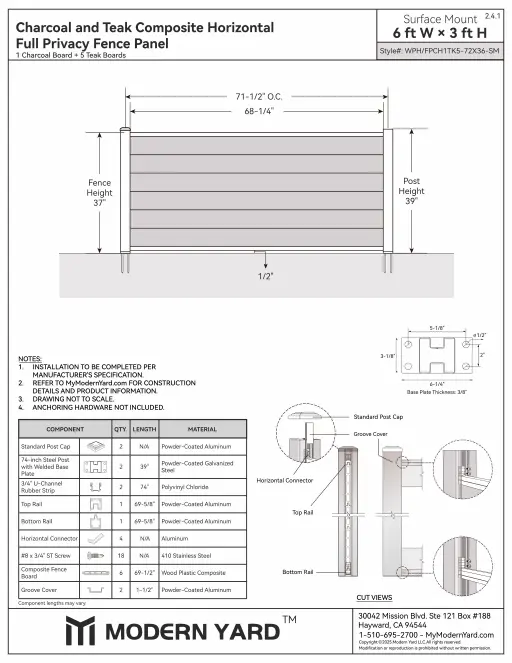

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3 ft.

    Mounting Type: Surface Mount.

    Fence height: 37 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 39 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Five Teak boards and one Charcoal board give the closed infill a contrasting composite accent.
    • Wood grain texture runs across both composite board colors.
    • The Teak and Charcoal composite boards do not need recurring painting, staining or sealing.
    • Steel posts have welded base plates for Surface Mount assembly. You supply the ground anchors.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal and Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal and Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

The Teak and Charcoal boards join into closed horizontal infill. The ½-inch ground gap is below the fence, separate from the board joints. This is the full privacy infill option at a nominal 3 ft height.

Each color comes in four-board packs. For an isolated section, one Charcoal pack and two Teak packs supply the required mix. For several composite fence panels, total each color separately before rounding to whole packs.

No. Ground anchors are customer-supplied for this Surface Mount fence. The welded-base posts remain the required support. Count shared posts once; a free-standing end needs its own post.
