Get a better sense of your project cost and materials.

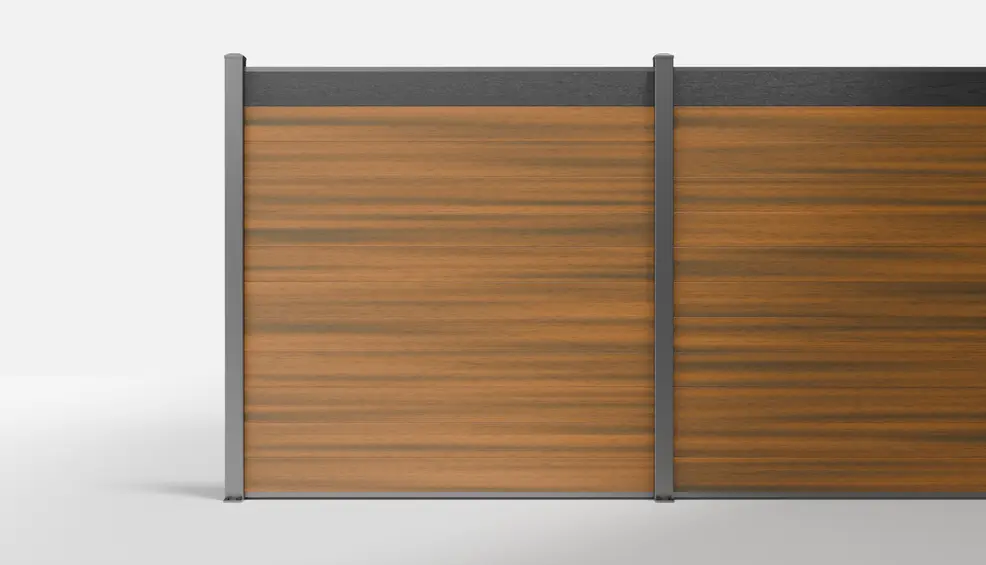

One Charcoal board joins eleven Teak boards in this Surface Mount composite fence. The nominal 6 × 6 ft horizontal composite fence has twelve joined boards inside a single rail pair.

Both composite colors contain wood fibers and recycled plastic beneath their wood-grain faces. Aluminum rails border the infill. Private Black galvanized steel posts support the fence system through welded base plates.

  • One Charcoal board joins eleven Teak boards in this Surface Mount composite fence. The nominal 6 × 6 ft horizontal composite fence has twelve joined boards inside a single rail pair.

    Both composite colors contain wood fibers and recycled plastic beneath their wood-grain faces. Aluminum rails border the infill. Private Black galvanized steel posts support the fence system through welded base plates.

  • Engineering Dimensions

    Nominal size (width × height): 6 × 6 ft.

    Mounting Type: Surface Mount.

    Fence height: 72 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Eleven Teak boards and one Charcoal board make the mixed privacy face.
    • One Horizontal Fence Rail Set serves both composite colors.
    • Wood-grain board surfaces need no routine painting or staining.
    • Welded steel bases use ground anchors supplied by the customer.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal and Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal and Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

Allow eleven Teak pieces and one Charcoal piece per panel. Keep the colors separate when totaling the order. Four-board packs give material shares of 2.75 Teak packs and 0.25 Charcoal pack.

The product identifies one Charcoal board among eleven Teak boards. It specifies the color totals, without prescribing a vertical sequence.

You provide the anchors for the welded post bases. The board packs and rail set are separate from those ground fixings.
