8x3 Teak Vertical Composite Privacy Fence

Teak Wood-Look Vertical Composite Full-Privacy Fence — 8 × 3 Feet — Surface Mount

FENCE COLLECTIONS

Wood-Look Composite™

Line™

FireGuard™

Teak Composite Vertical Full Privacy Fence Panel — 8 ft W × 3 ft H - Surface Mount

Style #:

WPV/FPTK16-96X36-SM

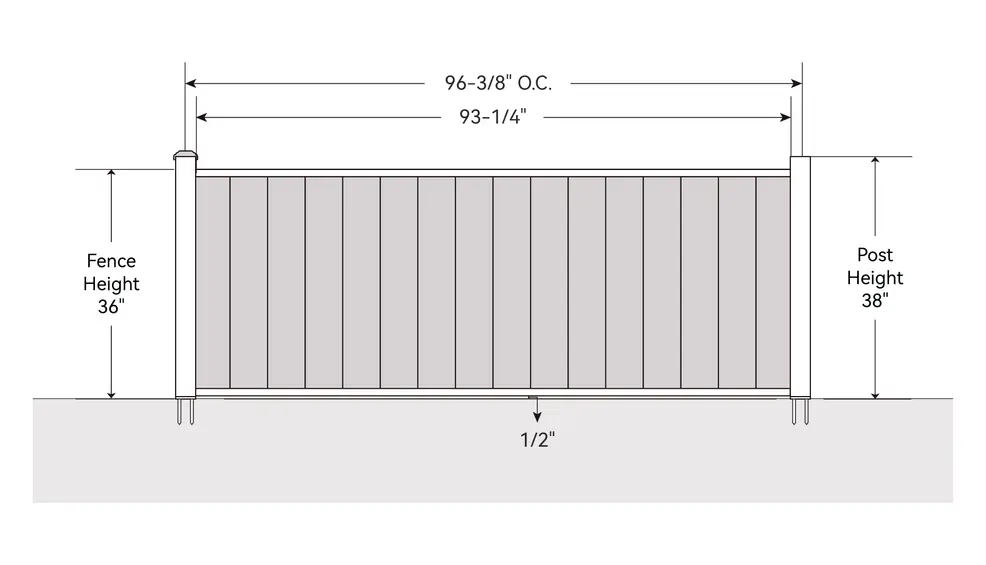

Engineering Dimensions

Nominal size (width × height): 8 × 3 ft.

Mounting Type: Surface Mount.

Fence height: 36 inches.

Gap below the fence: ½ inch.

Post spacing (center to center): 96⅜ inches.

Clear opening between posts: approximately 93¼ inches.

Post height above ground: 38 inches, excluding the post cap.

Parts and Materials

Standard Post Cap: powder-coated aluminum.

74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

Composite Fence Board: wood-plastic composite (WPC).

Groove Cover: powder-coated aluminum.

U Rail: powder-coated galvanized steel.

End Cap: PA6.

Top Rail Connector: powder-coated aluminum.

Bottom Rail Connector: powder-coated aluminum.

#8 x 3/4" ST Screw: 410 stainless steel.

Teak boards run upright across this Surface Mount composite fence at a nominal 8 ft width. Sixteen installed pieces form the full-privacy infill of this nominal 3 ft vertical composite fencing configuration.

The 74-inch welded-base steel post is the stock product; finished posts for this Surface Mount section stand 38 inches high.

Limited warranty periods (residential / commercial use):

Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
Covered Teak board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.

For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Teak boards run upright across this Surface Mount composite fence at a nominal 8 ft width. Sixteen installed pieces form the full-privacy infill of this nominal 3 ft vertical composite fencing configuration.
The 74-inch welded-base steel post is the stock product; finished posts for this Surface Mount section stand 38 inches high.
Engineering Dimensions
Nominal size (width × height): 8 × 3 ft.
Mounting Type: Surface Mount.
Fence height: 36 inches.
Gap below the fence: ½ inch.
Post spacing (center to center): 96⅜ inches.
Clear opening between posts: approximately 93¼ inches.
Post height above ground: 38 inches, excluding the post cap.
Parts and Materials
Standard Post Cap: powder-coated aluminum.
74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.
3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).
Composite Fence Board: wood-plastic composite (WPC).
Groove Cover: powder-coated aluminum.
U Rail: powder-coated galvanized steel.
End Cap: PA6.
Top Rail Connector: powder-coated aluminum.
Bottom Rail Connector: powder-coated aluminum.
#8 x 3/4" ST Screw: 410 stainless steel.
The low full-privacy section uses 16 Teak boards in a vertical layout.
The Teak wood-grain finish supplies a wood look across the upright board face.
No regular painting, staining or sealing is required for these composite boards.
Customers arrange ground anchors separately for the welded plates on the steel base posts.
Modern Yard™ 74-inch Steel Post with Welded Base Plate x 1 PC
Modern Yard™ Teak Fence Board x 2 packs (8 full-length boards; 16 installed pieces after cutting)
Modern Yard™ Vertical Fence Rail Set x 1 set
Limited warranty periods (residential / commercial use):
Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
Covered Teak board color changes: up to 25 / 10 years.
Coastal metal coating defects: up to 5 / 3 years.
Non-coastal metal coating defects: up to 15 / 10 years.
Covered metal finish fading, all locations: up to 8 / 5 years.
For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.
Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.
Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.
Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.
For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.
Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.
We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.
Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.
