Get a better sense of your project cost and materials.


This Modern Yard™ Teak composite privacy fence uses ten joined horizontal boards. Private Black framing surrounds the wood-grain face at a nominal 6 ft width.

Aluminum rails finish the upper and lower edges of the boards. Galvanized steel posts frame the sides. Powder coating finishes the metal parts. Natural wood fibers and recycled polyethylene make up the Teak composite.

Review the horizontal composite fence system overview for other layouts.

The horizontal composite system accommodates sloping ground, stepped sections and angled layouts with matching rails and compatible fittings.

  • This Modern Yard™ Teak composite privacy fence uses ten joined horizontal boards. Private Black framing surrounds the wood-grain face at a nominal 6 ft width.

    Aluminum rails finish the upper and lower edges of the boards. Galvanized steel posts frame the sides. Powder coating finishes the metal parts. Natural wood fibers and recycled polyethylene make up the Teak composite.

    Review the horizontal composite fence system overview for other layouts.

    The horizontal composite system accommodates sloping ground, stepped sections and angled layouts with matching rails and compatible fittings.

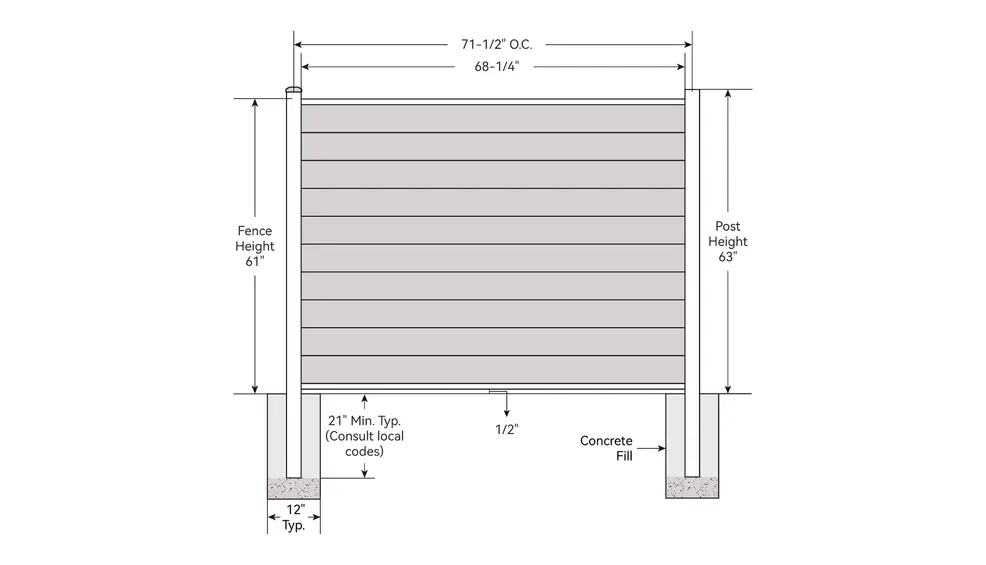

  • Engineering Dimensions

    Nominal size (width × height): 6 × 5 ft.

    Mounting Type: In-Ground.

    Fence height: 61 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 63 inches, excluding the post cap.

    Post depth below ground: 21 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Ten Teak boards occupy the joined horizontal infill.
    • Teak composite boards help resist moisture.
    • Private Black aluminum rails border the upper and lower composite edges.
    • The Teak infill faces need no regular staining or sealing.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Cover of Horizontal composite fence installation manual

Installation Manual

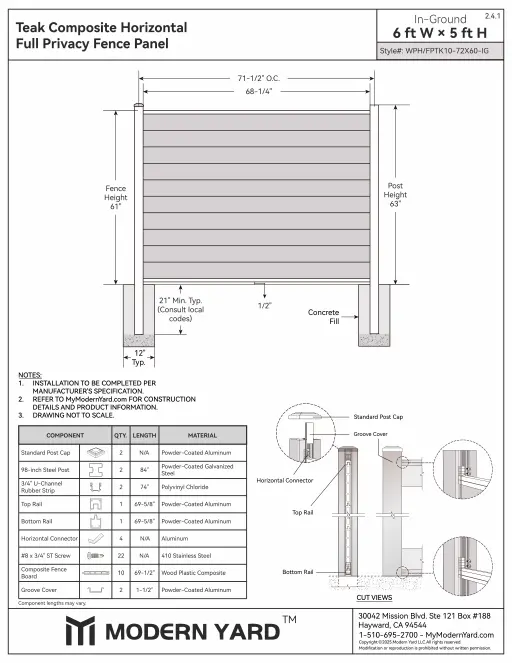

Engineering drawing cover for Teak Composite Horizontal Full Privacy Fence Panel — 6 ft W × 5 ft H - In-Ground (Style WPH/FPTK10-72X60-IG).

​Technical Drawing


Frequently Asked Questions

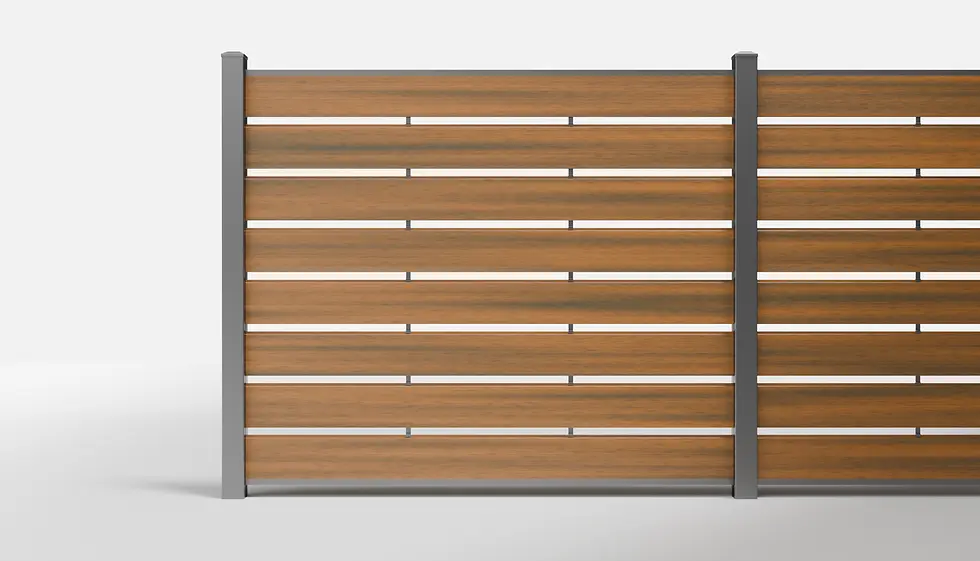

This panel has ten joined Teak boards. The semi privacy version uses eight boards with 1-inch openings.

This configuration uses In-Ground.
