Get a better sense of your project cost and materials.

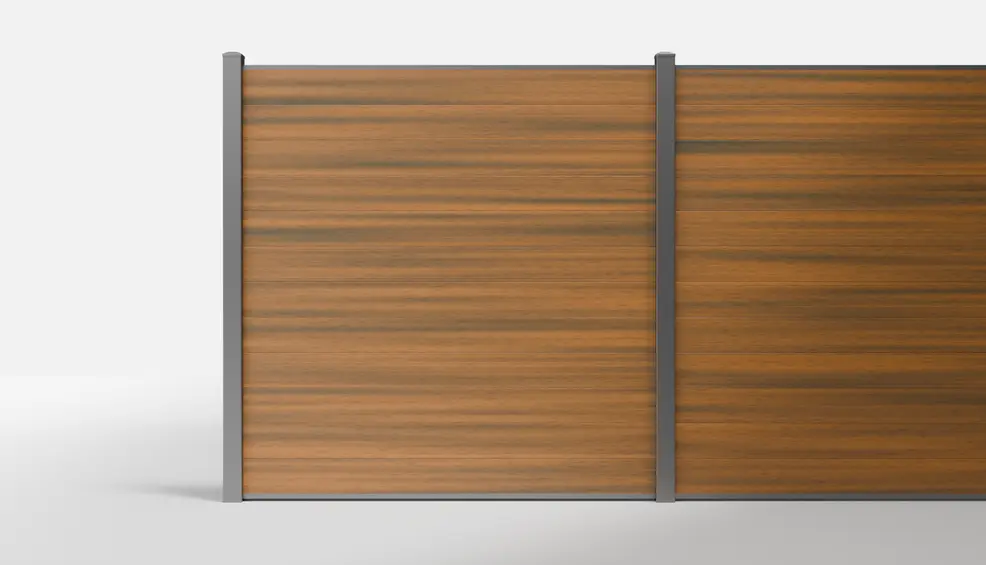

Twelve Teak boards join to form this Modern Yard™ horizontal composite privacy fence. Its nominal size is 6 × 6 ft. Aluminum rails and galvanized steel posts frame the closed wood-grain board stack.

Natural wood fibers and recycled plastic make up the Teak board material. Private Black powder coating finishes the steel posts and aluminum rails around the Teak infill.

Three four-board packs provide the infill; posts and the rail set are separate. Plan shared posts through the horizontal composite fence system and select a composite gate separately for any opening.

  • Twelve Teak boards join to form this Modern Yard™ horizontal composite privacy fence. Its nominal size is 6 × 6 ft. Aluminum rails and galvanized steel posts frame the closed wood-grain board stack.

    Natural wood fibers and recycled plastic make up the Teak board material. Private Black powder coating finishes the steel posts and aluminum rails around the Teak infill.

    Three four-board packs provide the infill; posts and the rail set are separate. Plan shared posts through the horizontal composite fence system and select a composite gate separately for any opening.

  • Engineering Dimensions

    Nominal size (width × height): 6 × 6 ft.

    Mounting Type: In-Ground.

    Fence height: 72 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 24 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Twelve joined Teak boards fill the horizontal privacy panel.
    • The twelve Teak boards resist decay.
    • Private Black aluminum rails border the boards between steel posts.
    • Teak board faces need no regular painting, staining or sealing. Clean them with mild soap, water and a soft cloth or brush.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Teak boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Teak board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Teak composite fence board with natural wood-look finish on a white background

Modern Yard™ Teak Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

Three packs provide the twelve Teak boards. The steel posts and horizontal rail set are separate products. Add them from the component list to prepare the complete assembly.

Powder-coated aluminum makes the top and bottom rails. Powder-coated galvanized steel makes the posts. Both have Private Black finishes around the Teak boards.

Choose a composite gate separately and plan its opening, frame and hardware. Add its materials to the fence project. Count any shared posts from the combined plan.
