Get a better sense of your project cost and materials.


Charcoal Composite Horizontal Semi-Privacy Fence Panel with 1-Inch Gaps — 6 ft W × 6 ft H - Surface Mount

Style #:

WPH/G10CH10-72X72-SM

Ten Charcoal boards and 1-inch gaps give this Surface Mount composite fence its open horizontal rows. Eighteen spacers and eighteen matching groove covers form the specified nominal 6 × 6 ft semi privacy fence assembly.

This version lists a 73-inch fence and 74-inch finished posts, with 0 inches below. The full-privacy 6 ft panel has different vertical dimensions.

  • Ten Charcoal boards and 1-inch gaps give this Surface Mount composite fence its open horizontal rows. Eighteen spacers and eighteen matching groove covers form the specified nominal 6 × 6 ft semi privacy fence assembly.

    This version lists a 73-inch fence and 74-inch finished posts, with 0 inches below. The full-privacy 6 ft panel has different vertical dimensions.

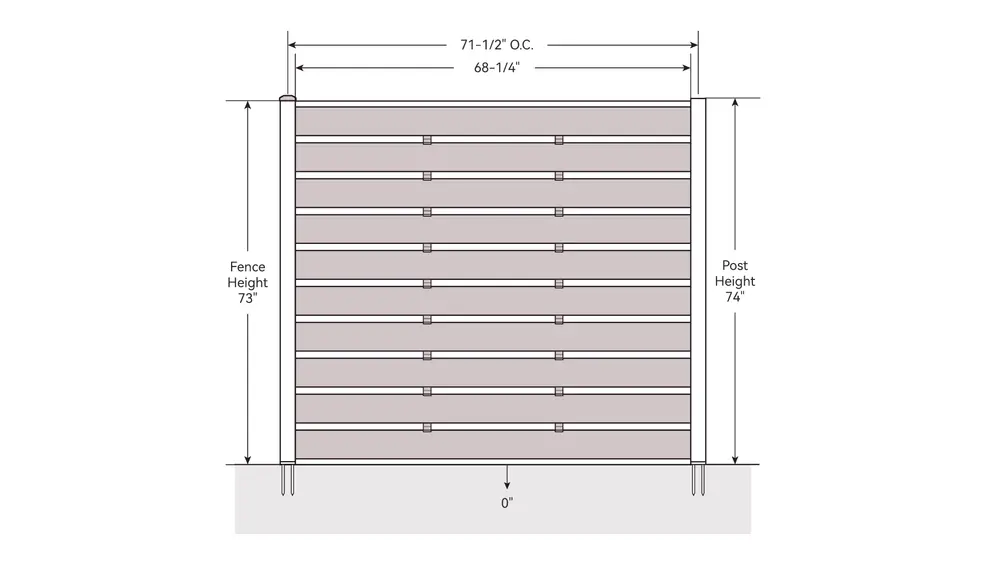

  • Engineering Dimensions

    Nominal size (width × height): 6 × 6 ft.

    Mounting Type: Surface Mount.

    Fence height: 73 inches.

    Gap below the fence: 0 inches.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    74-inch Steel Post with Welded Base Plate: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    1-inch Composite Spacer: powder-coated aluminum.

    1-inch Groove Cover: powder-coated aluminum.

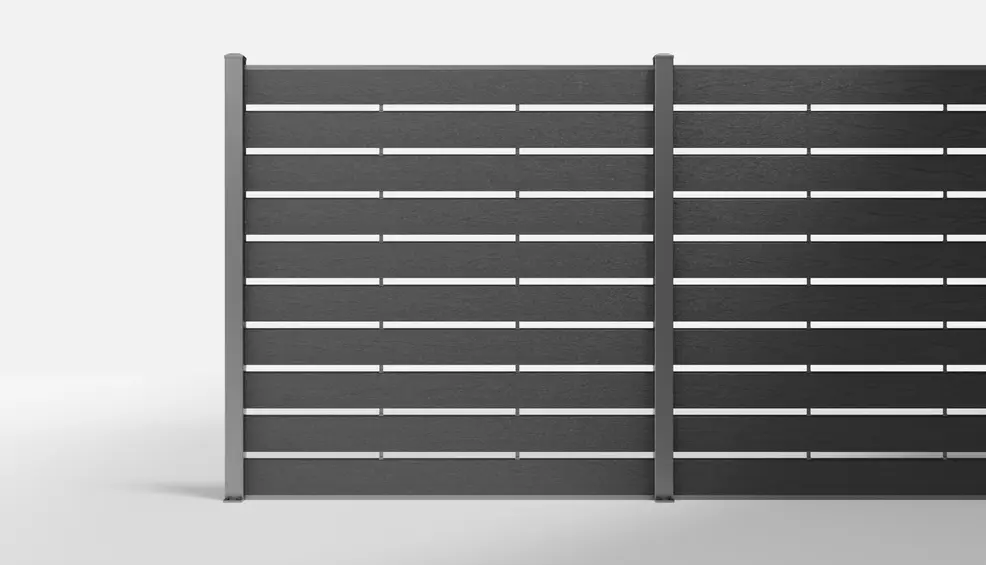

    • 10 Charcoal boards are separated by 1-inch gaps in this open horizontal design.
    • Wood-grain Charcoal surfaces give each board row a wood-like appearance.
    • Regular painting, staining and sealing are unnecessary for these composite board faces.
    • You provide the ground anchors for this fence's welded steel post bases.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 74-inch galvanized steel fence post with welded base plate and compatible system components

Modern Yard™ 74-Inches Steel Post with Welded Base Plate

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard 1-inch spacer for horizontal fence installation

Modern Yard™ Accessory – 1-Inch Spacer for Horizontal Fence (40-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

The current engineering record lists 0 inches below the fence. Do not substitute the clearance from another height or privacy style.

Six feet is the size label. The specified board-and-spacing assembly is listed at 73 inches, with 74-inch finished posts.

Ground anchors for the taller Charcoal configuration are customer-supplied.
