Charcoal Composite Vertical Fence Panel with LINE Slatted Top — 8 ft W × 7 ft H - In-Ground

Style #:

WPV/STCH16LNPB2-96X84-IG

Charcoal vertical composite fencing meets a Private Black LINE top in this nominal 8 × 7 ft panel. Sixteen wood-grain boards form the closed body; two horizontal steel slats leave the upper section open.

The composite materials blend wood fibers and recycled plastic beneath Charcoal's UV-protected wrap. The board surfaces resist fading, moisture, termites and decay without regular painting, staining or sealing. Compare the vertical composite fencing options for other board-and-top arrangements.

  • Charcoal vertical composite fencing meets a Private Black LINE top in this nominal 8 × 7 ft panel. Sixteen wood-grain boards form the closed body; two horizontal steel slats leave the upper section open.

    The composite materials blend wood fibers and recycled plastic beneath Charcoal's UV-protected wrap. The board surfaces resist fading, moisture, termites and decay without regular painting, staining or sealing. Compare the vertical composite fencing options for other board-and-top arrangements.

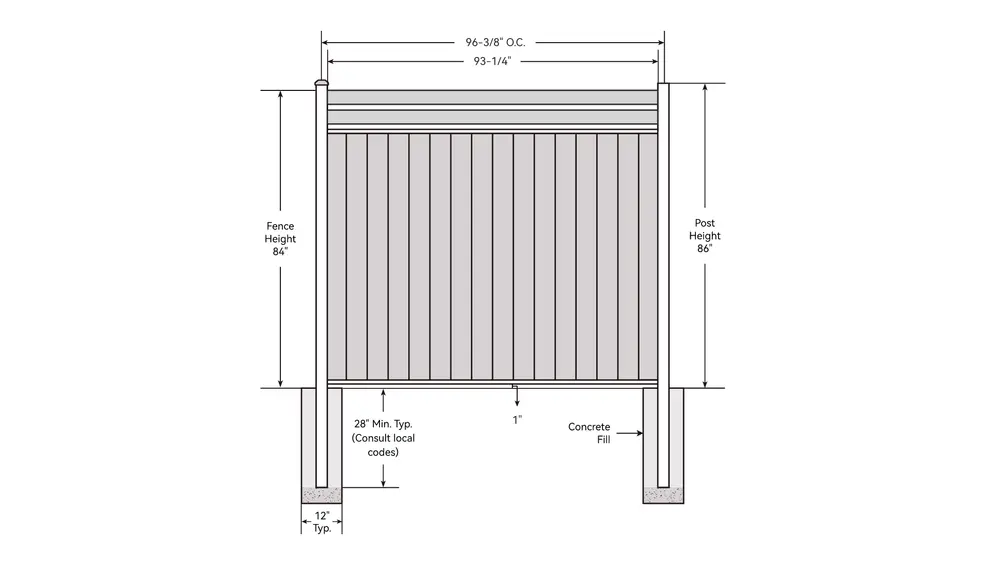

  • Engineering Dimensions

    Nominal size (width × height): 8 × 7 ft.

    Mounting Type: In-Ground.

    Fence height: 84 inches.

    Gap below the fence: 1 inch.

    Post spacing (center to center): 96⅜ inches.

    Clear opening between posts: approximately 93¼ inches.

    Post height above ground: 86 inches, excluding the post cap.

    Post depth below ground: 28 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    U Rail: powder-coated galvanized steel.

    End Cap: PA6.

    Top Rail Connector: powder-coated aluminum.

    Bottom Rail Connector: powder-coated aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Line™ Fence Slat: powder-coated galvanized steel.

    Base Connector: powder-coated aluminum.

    Stackable Connector: powder-coated aluminum.

    L Connector: 201 stainless steel.

    • Sixteen upright Charcoal boards form the body beneath two open LINE steel rows.
    • Charcoal's UV-protected wrap covers the wood-plastic composite core.
    • The composite faces resist moisture, fading, termites and decay.
    • Separate vertical rails and LINE connectors support the two infill areas.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Claims must meet written terms. Normal use, color and coating claim conditions apply. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, we refund or replace defective boards or parts. The original net purchase price sets the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. We pay if the law requires it or Modern Yard agrees in writing to pay these costs.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard vertical fence rail set with matching rail and mounting components

Modern Yard™ Vertical Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard LINE 1 x 4 x 8 ft galvanized steel fence slat with dark powder-coated finish

Modern Yard Line™ Fence Slat - 1 in. x 4 in. x 8 ft (2-Pack)

Modern Yard semi-privacy hardware kit for 1-inch horizontal fence slats

Modern Yard™ Semi-Privacy Hardware Kit for 1-Inch Fence Slats

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

The composite body is closed, while the two LINE slats leave openings above it. The complete fence height is 84 inches, with 86-inch posts above ground and 28 inches below.

Four Charcoal packs provide sixteen boards. One separate LINE pack supplies both steel slats. Add the vertical rail set, the listed semi-privacy hardware and posts.

Count shared support positions once and include the free ends. An independent section needs two 114-inch posts. The per-section post quantity supports planning across connected bays.
