Charcoal Composite Horizontal Spaced Panels Fence Panel — 6 ft W × 6 ft H - In-Ground

Style #:

WPH/SPCH9-72X72-IG

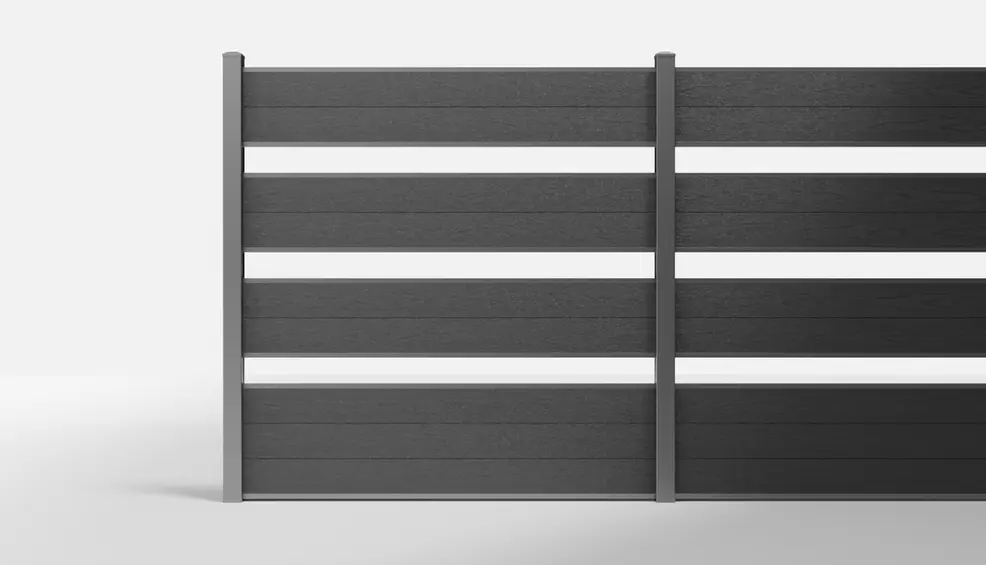

Nine Charcoal boards make up this composite fence with four spaced board groups. Each group has its own aluminum top and bottom rail, with openings of about 4¼ inches between groups.

The four groups share galvanized steel side posts in a nominal 6 × 6 ft section. Private Black finishes the metal framing around the Charcoal wood-grain faces. Charcoal WPC mixes natural wood fibers with recycled plastic.

Order four horizontal rail sets and total nine boards per section before rounding to whole Charcoal packs. Review the horizontal composite fence system for related layouts.

  • Nine Charcoal boards make up this composite fence with four spaced board groups. Each group has its own aluminum top and bottom rail, with openings of about 4¼ inches between groups.

    The four groups share galvanized steel side posts in a nominal 6 × 6 ft section. Private Black finishes the metal framing around the Charcoal wood-grain faces. Charcoal WPC mixes natural wood fibers with recycled plastic.

    Order four horizontal rail sets and total nine boards per section before rounding to whole Charcoal packs. Review the horizontal composite fence system for related layouts.

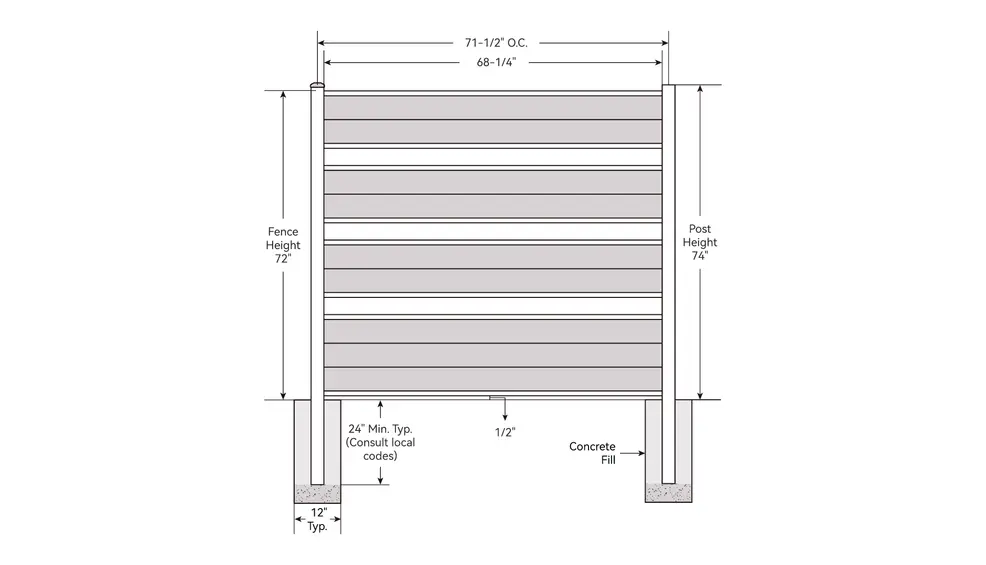

  • Engineering Dimensions

    Nominal size (width × height): 6 × 6 ft.

    Mounting Type: In-Ground.

    Fence height: 72 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 74 inches, excluding the post cap.

    Post depth below ground: 24 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    98-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Nine Charcoal composite boards form four separately rail-framed groups.
    • The nine Charcoal boards resist rot in this rail-framed arrangement.
    • Gaps of about 4¼ inches separate the groups.
    • Charcoal group faces need no routine painting or staining and no regular sealing. Clean the board faces with mild soap and water, using a soft brush.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 98-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 98-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Imagine Your Future Fence

Installation Guides

Installation Manual

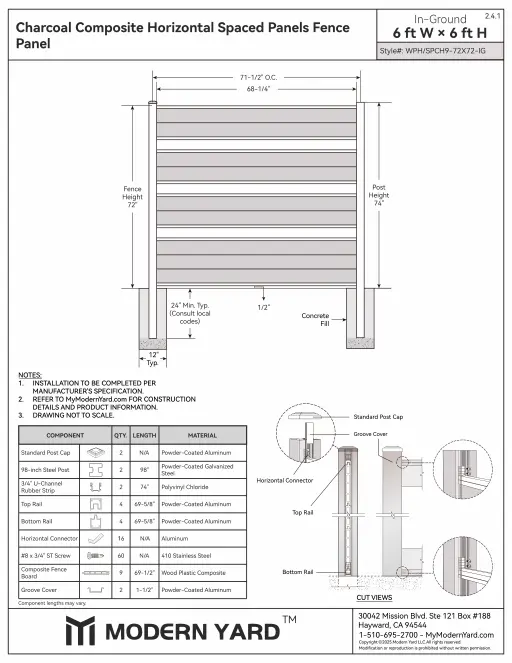

​Technical Drawing


Frequently Asked Questions

Nine Charcoal boards supply the complete infill across four rail-framed groups. The grouped layout uses four horizontal rail sets. Joined-board and one-inch-spacer sections need different component quantities.

This design leaves gaps of about 4¼ inches between rail-framed groups. Ordinary semi privacy uses spacers between individual boards. Its spacer and rail counts are different.

Each of the four groups needs its own rail pair. Four sets supply those top and bottom rails. Order them with the nine-board infill and the required posts.
