Get a better sense of your project cost and materials.

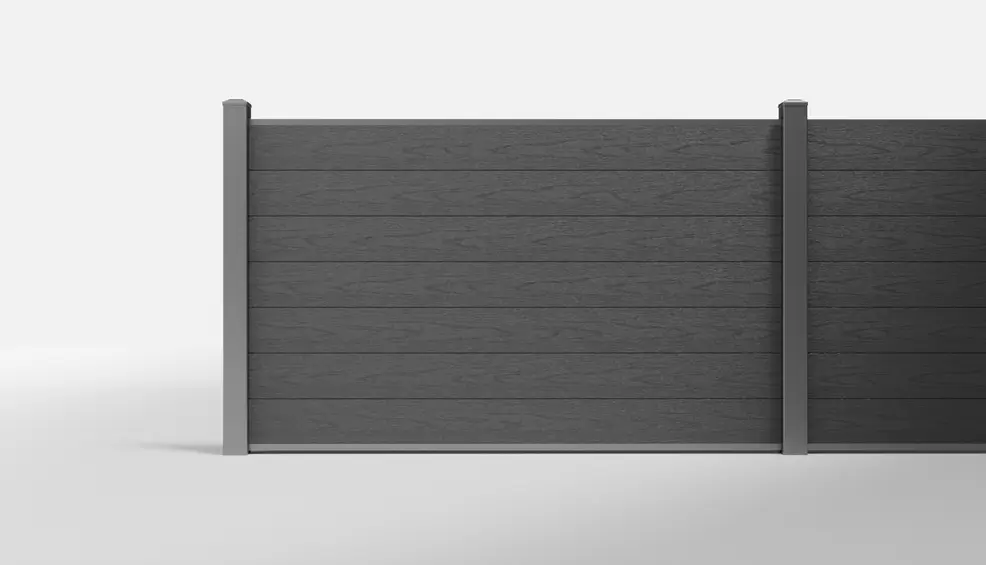

Seven Charcoal boards make this Modern Yard™ horizontal composite privacy fence. The joined boards form closed infill at a nominal 6 ft wide and 3.5 ft high. Private Black posts and rails frame the board faces.

Wood fibers and recycled plastic form these grain-textured composite boards. The side posts are powder-coated galvanized steel. Aluminum rails finish the top and bottom edges.

These composite privacy fence panels use separate board and frame products. Use the horizontal composite fence system page to plan connections along a run.

  • Seven Charcoal boards make this Modern Yard™ horizontal composite privacy fence. The joined boards form closed infill at a nominal 6 ft wide and 3.5 ft high. Private Black posts and rails frame the board faces.

    Wood fibers and recycled plastic form these grain-textured composite boards. The side posts are powder-coated galvanized steel. Aluminum rails finish the top and bottom edges.

    These composite privacy fence panels use separate board and frame products. Use the horizontal composite fence system page to plan connections along a run.

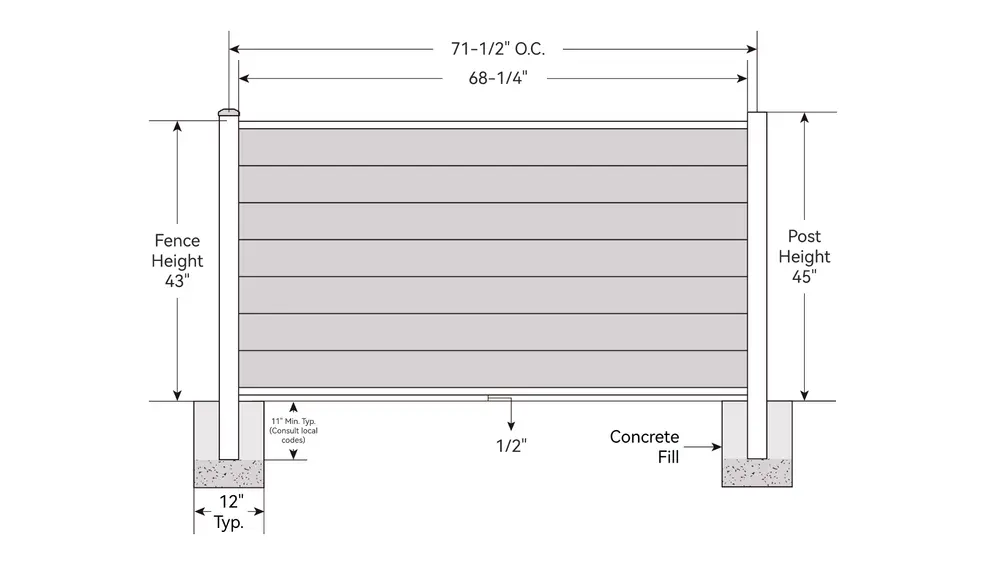

  • Engineering Dimensions

    Nominal size (width × height): 6 × 3.5 ft.

    Mounting Type: In-Ground.

    Fence height: 43 inches.

    Gap below the fence: ½ inch.

    Post spacing (center to center): 71½ inches.

    Clear opening between posts: approximately 68¼ inches.

    Post height above ground: 45 inches, excluding the post cap.

    Post depth below ground: 11 inches.

    Concrete footing width: 12 inches min.

    Parts and Materials

    Standard Post Cap: powder-coated aluminum.

    114-inch Steel Post: powder-coated galvanized steel.

    3/4" U-Channel Rubber Strip: PVC (polyvinyl chloride).

    Top Rail: powder-coated aluminum.

    Bottom Rail: powder-coated aluminum.

    Horizontal Connector: aluminum.

    #8 x 3/4" ST Screw: 410 stainless steel.

    Composite Fence Board: wood-plastic composite (WPC).

    Groove Cover: powder-coated aluminum.

    • Seven Charcoal boards produce a continuous horizontal board layout.
    • The wood-grain Charcoal boards resist insect damage and decay.
    • A Private Black frame surrounds the wood-grain Charcoal surface.
    • Charcoal boards don't require routine painting, staining or sealing.
  • Limited warranty periods (residential / commercial use):

    • Structural defects in Charcoal boards and covered metal fence parts: up to 25 / 10 years.
    • Covered Charcoal board color changes: up to 25 / 10 years.
    • Coastal metal coating defects: up to 5 / 3 years.
    • Non-coastal metal coating defects: up to 15 / 10 years.
    • Covered metal finish fading, all locations: up to 8 / 5 years.

    For metal coating coverage, use the nearest shoreline of an ocean, sea or saltwater bay. Salt or brackish tidal estuaries also count. Measure in a straight line from the installed part. A distance of 10 miles or less is coastal; farther away is non-coastal.

    Qualifying defects under normal use must meet the written terms, including color and coating claim conditions. Metal coverage applies only to covered parts and eligible factory finishes.

    Normal airborne coastal salt and salt spray alone do not exclude qualifying coating claims. The metal warranty excludes direct saltwater immersion or splash damage.

    Remaining coverage transfers with property ownership. Products must stay at the original site. Keep records of the products and original purchase date. Transfer or replacement does not restart coverage.

    For approved claims, Modern Yard refunds or replaces defective boards or parts. The original net purchase price determines the amount. The amount drops over time under the warranty schedule.

    Metal coating compensation is 100% in the term’s first half, 50% in the second. Other claims follow separate schedules.

    We do not pay for labor, installation, removal, reinstallation, freight or shipping. This changes if required by law or if Modern Yard expressly agrees in writing.

    Email service@mymodernyard.com with purchase records, photos, product details and the issue. Expect a decision or next steps within 7–14 business days. Contact Modern Yard for full warranty terms.

Related Components

Modern Yard 114-inch galvanized steel fence post with compatible fence system components

Modern Yard™ 114-Inches Steel Post

Modern Yard horizontal fence rail set with matching rail components on a white background

Modern Yard™ Horizontal Fence Rail Set

Modern Yard Charcoal composite fence board with dark wood-look finish on a white background

Modern Yard™ Charcoal Fence Board (4-Pack)

Modern Yard standard fence post cap in dark powder-coated finish

Modern Yard™ Accessory – Standard Post Cap

Imagine Your Future Fence

Installation Guides

Installation Manual

​Technical Drawing


Frequently Asked Questions

All seven boards are Charcoal. Private Black is the metal frame finish; mixed-board panels use a different configuration.

Charcoal board faces need no regular sealing, staining or repainting. Clean them with mild soap and water, using a soft brush or cloth. Keep harsh chemicals and abrasive tools off the composite.

A single section needs a post at both sides. Connected sections can share posts. Count the post positions at ends, joins and corners before you order.
